Chapter 5 Configure the Adapter for Direct Connection, Rack Optimization, and Enhanced Rack Optimization in RSLogix 5000 or Logix Designer Software

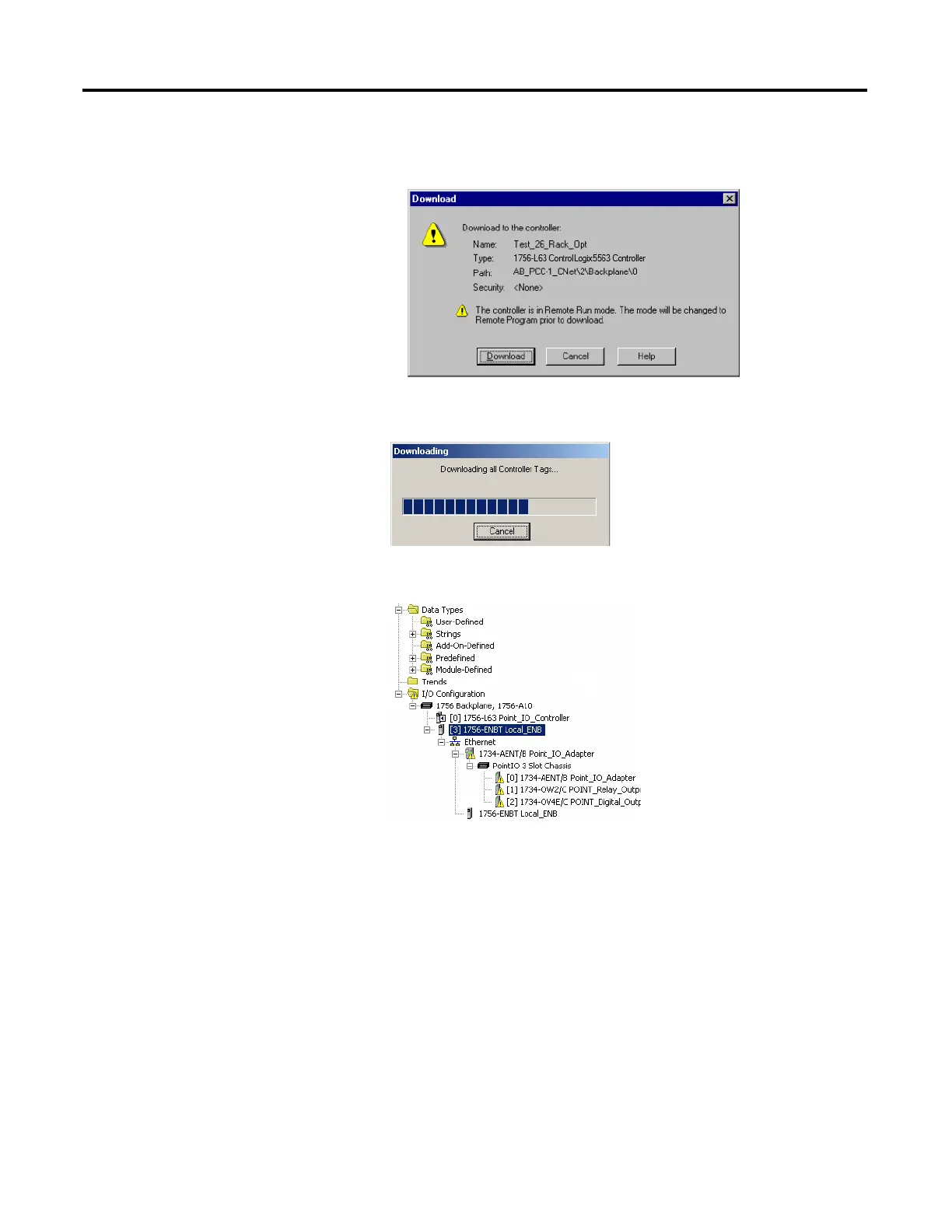

4. Click Download.
The Download dialog opens.
5. From the Download dialog, click Download.
The Downloading dialog displays the download progress.
Notice that the 1756-ENBT Bridge is now online.
If yellow triangles are present, see the following section.
Verify the Module
Chassis Size
You have now built the I/O tree and the RSLogix 5000 software uses the chassis
size from the General tab of the adapter for the rack-optimization I/O
connection. Now you need to configure this new chassis size value into the
adapter non-volatile memory. This procedure synchronizes the chassis size value
from the RSLogix 5000 software into the adapter hardware. You must be online
to perform this procedure.
1. Verify that the RSLogix 5000 software is online.
2. Right-click the name of the adapter under I/O Configuration in the
Project dialog.
3. Select Properties.
