Allen-Bradley 1734 User Manual

94 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017
Appendix B Adapter Web Dialogs

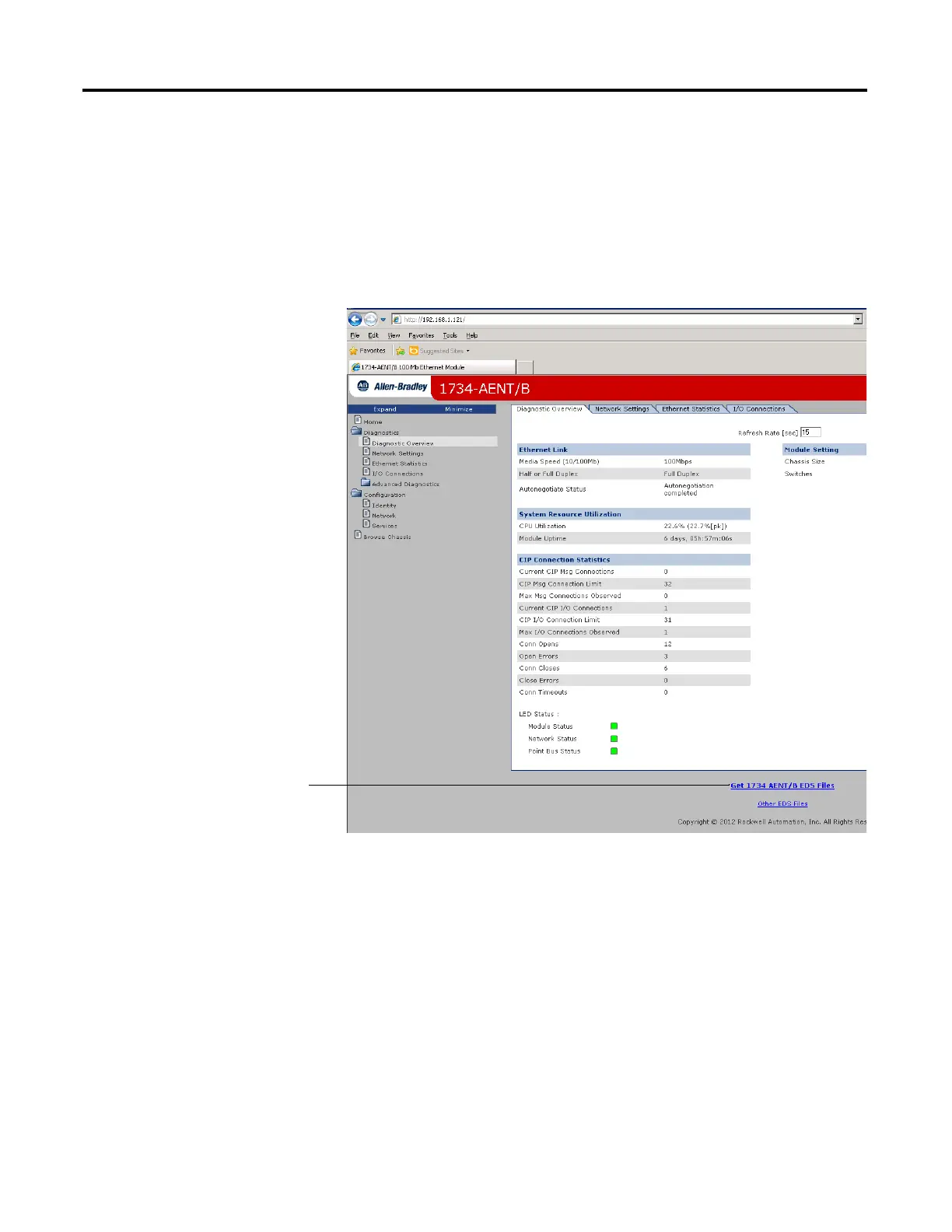

Use the Diagnostic Overview Page
To use the Diagnostic Overview page for general diagnostics information, follow
this procedure.
1. Click Diagnostic Overview from the tab at the top of the page or panel on
the left.
The Diagnostic Overview page opens.
2. From the Diagnostic Overview page, view the following:
• Ring Status
– Network Topology
– Network Status
– Ring Supervisor
• System Resource Utilization
– CPU Utilization
– Module Uptime
• CIP Connection Statistics
– Current CIP MSG Connections
– CIP MSG Connection Limit
– Max Msg Connections Observed
Download EDS files for
your adapter
