98 Rockwell Automation Publication 1734-UM018D-EN-E - September 2017
Appendix B Adapter Web Dialogs

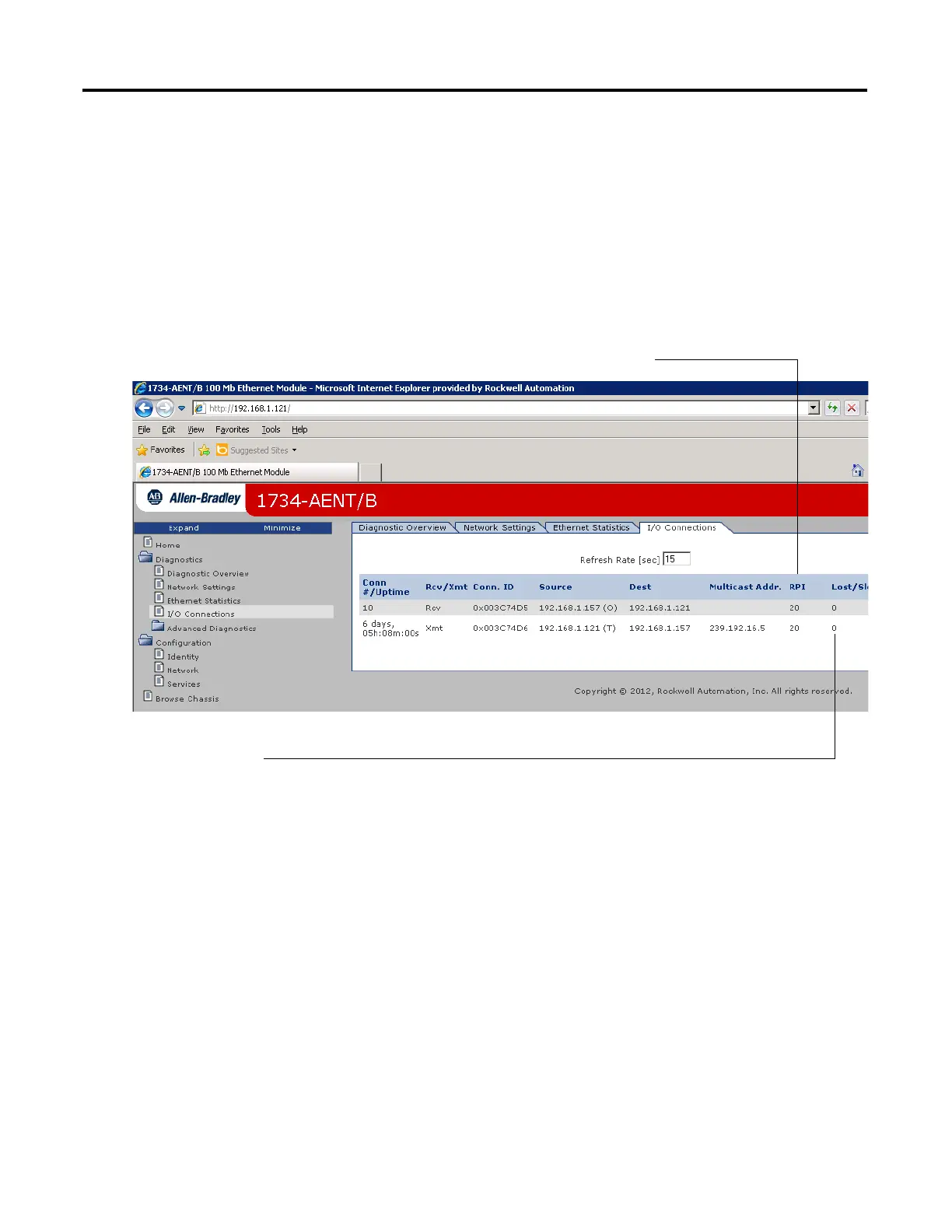

Use the I/O Connections Page
To use the I/O Connections page for CIP I/O (Class 1) connection information,
follow this procedure.
1. Click I/O Connections from the tab at the top of the page or panel on the
left.
The I/O Connections page opens.
2. From the I/O Connections page, view the following:
• Connection Number
• Uptime
• Receive and Transmit (Rcv/Xmt)
• Connection ID
• Source IP Address with an indication of the following:
– (O) for originator
– (T) for target
• Destination IP Address
• Multicast Address
• Requested Packet Interval (RPI)
• Lost/Slot that shows the number of lost packets and the slot number for
the connection, with a slot value of 0 indicating that this is a rack-
optimization connection
• Size of data in bytes
The top value in this column representing Lost shows
the number of packets from the missing source.
The value for Slot shows the slot
number of the I/O module this
connection is controlling.
