Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
PLC-5C to Logix5550 Controller: Scheduled Communications 8-9
Configure the Consumer
Logix5550 Controller
In order to test the application you must configure the Logix 5550 controller
as a consumer, add the producer to the I/O configuration of the consumer,
and create a consumed tag to receive the data.
Perform the following steps to create the consumer:
1. Open the RSLogix5000 software.

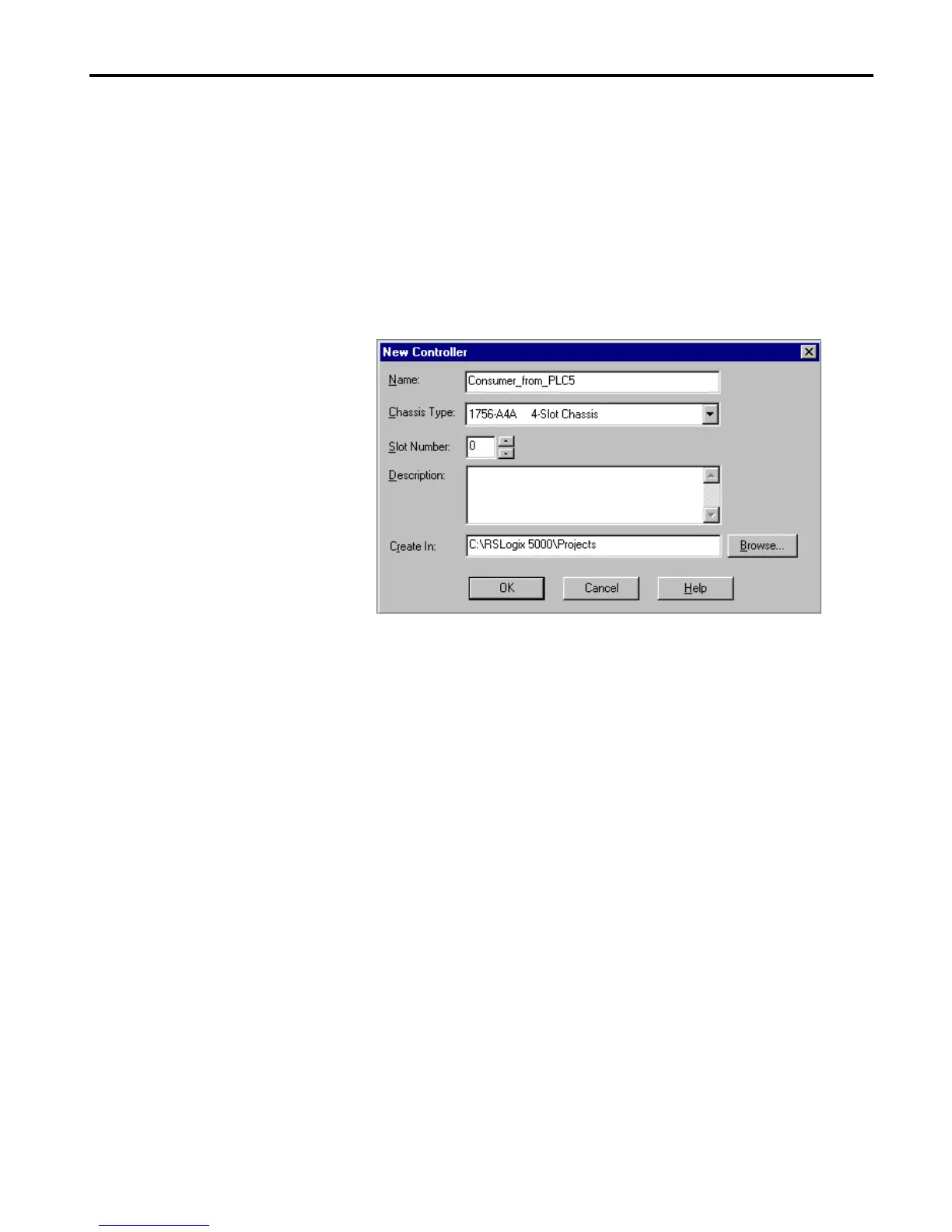

2. From the File menu, select New. The New Controller window will
appear.
3. Enter an appropriate Name for the Controller (e.g.,
“Consumer_from_PLC5”).
4. Select the correct Chassis Type and Slot Number of the Logix5550
controller, and the folder where you want to save the file (Create In).
Then click on OK.
You will now add the producer PLC-5C to the consumer’s I/O
configuration. This involves several steps. First, you must add the
consumer’s local 1756-CNB module to its I/O configuration. Then you add
the PLC-5C as a “child” of the local 1756-CNB module.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
