Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
Logix5550 to Logix5550 Controller: Scheduled Communication 4-15
Download to the Consumer
(1)
You do not need any ladder logic in the Consumer program. The program
can consist of a single “End” rung.

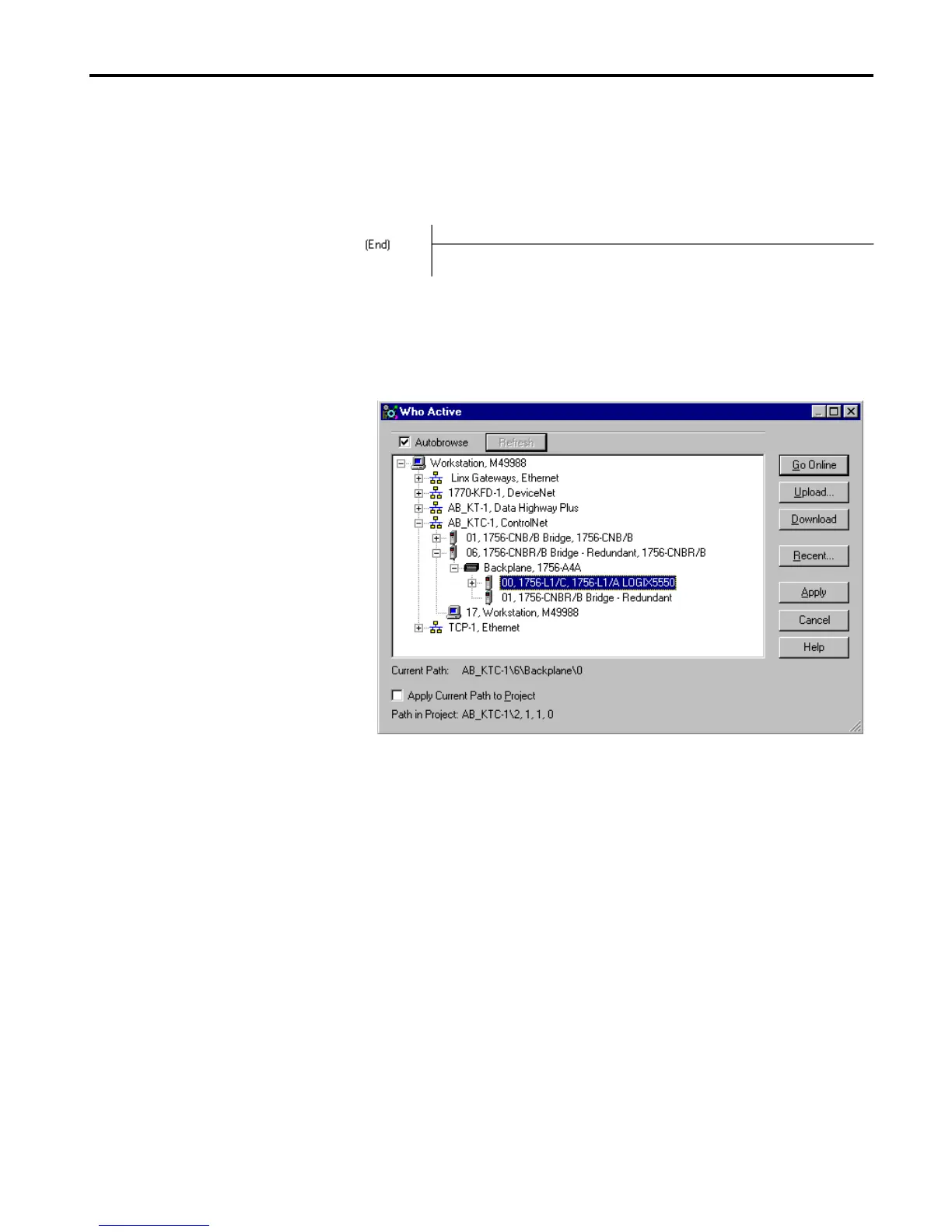

1. Click on the Communications menu and select Who Active.
The Who Active window will appear (Your window may look different
depending upon the drivers and other devices you have installed).
2. Drill down the tree through ControlNet driver and the 1756-CNB
module at node 6 to the controller in slot 0.
3. Highlight the controller and click on the Download button.
4. Minimize this session of RSLogix5000.
(1)
This example uses RSLogix5000 version 2.25. See Appendix D if you are using version 2.10 or earlier.

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
