Allen-Bradley ControlLogix User Manual

1756-6.5.3 - December 1999
4-16 Logix5550 to Logix5550 Controller: Scheduled Communication
Schedule the Network Using
RSNetWorx for ControlNet
Before scheduled communication can take place, you must run RSNetWorx
for ControlNet to schedule the network. Running RSNetWorx transfers
configuration data to networked modules and establishes a Network Update
Time (NUT) for ControlNet that is compliant with the desired
communication options specified for each module.

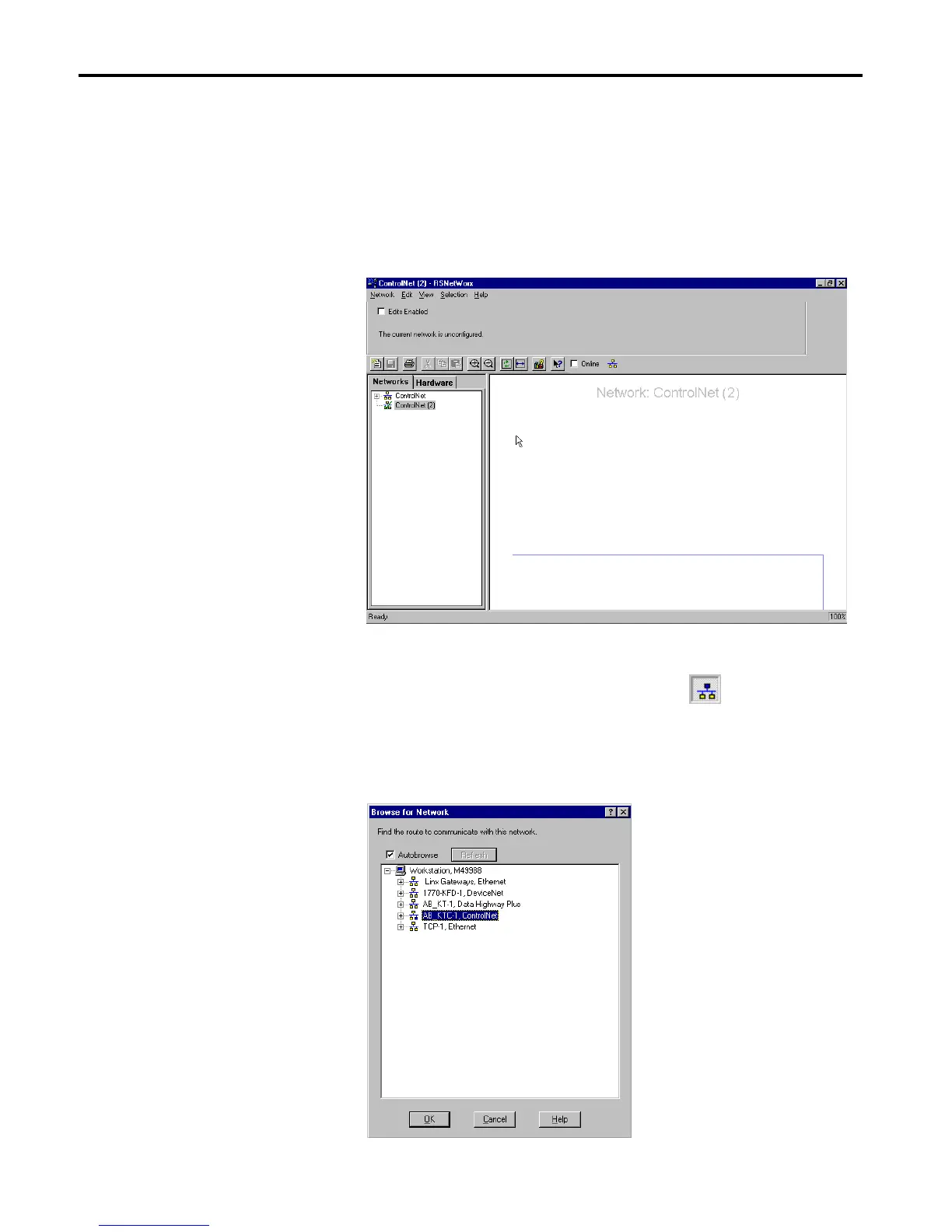

1. Start the RSNetWorx for ControlNet software:
2. From the Network menu, select New.
3. Check the Edits Enabled box and go Online.
The Browse for Network window will appear with a list of available
drivers. (Your list may appear different from that shown below, but you
should have the AB_KTC-1 driver configured as described in chapter 2.)

Allen-Bradley ControlLogix Specifications

General

Communication	EtherNet/IP, ControlNet, DeviceNet, DH+
I/O Capacity	Up to 128, 000 I/O points (varies by configuration)
Redundancy	Supported (with specific modules)
Programming Software	Rockwell Automation Studio 5000 Logix Designer
Operating Temperature	0°C to 60°C (32°F to 140°F)
Programming Languages	Ladder Logic, Function Block Diagram, Structured Text, Sequential Function Chart
Modularity	Yes
Certifications	UL, CE
Processor Type	Multiple options available, including standard, safety, and extreme environment processors
Power Supply	Multiple options available, including standard and redundant power supplies with various voltage ranges (e.g., 24V DC, 120/240V AC)
