Allen-Bradley LOGIX 5000 User Manual

Logical and Move
Chapter 6
Rockwell Automation Publication 1756-RM006K-EN-P - November 2018 411
This information applies to the CompactLogix 5370, ControlLogix 5570,
Compact GuardLogix 5370, GuardLogix 5570, Compact GuardLogix 5380,
CompactLogix 5380, CompactLogix 5480, ControlLogix 5580, and GuardLogix
5580 controllers.
The SETD instruction uses Set and Reset inputs to control latched outputs. The
Set input has precedence over the Reset input.
Available Languages
Ladder Diagram
This instruction is not available in ladder diagram logic.

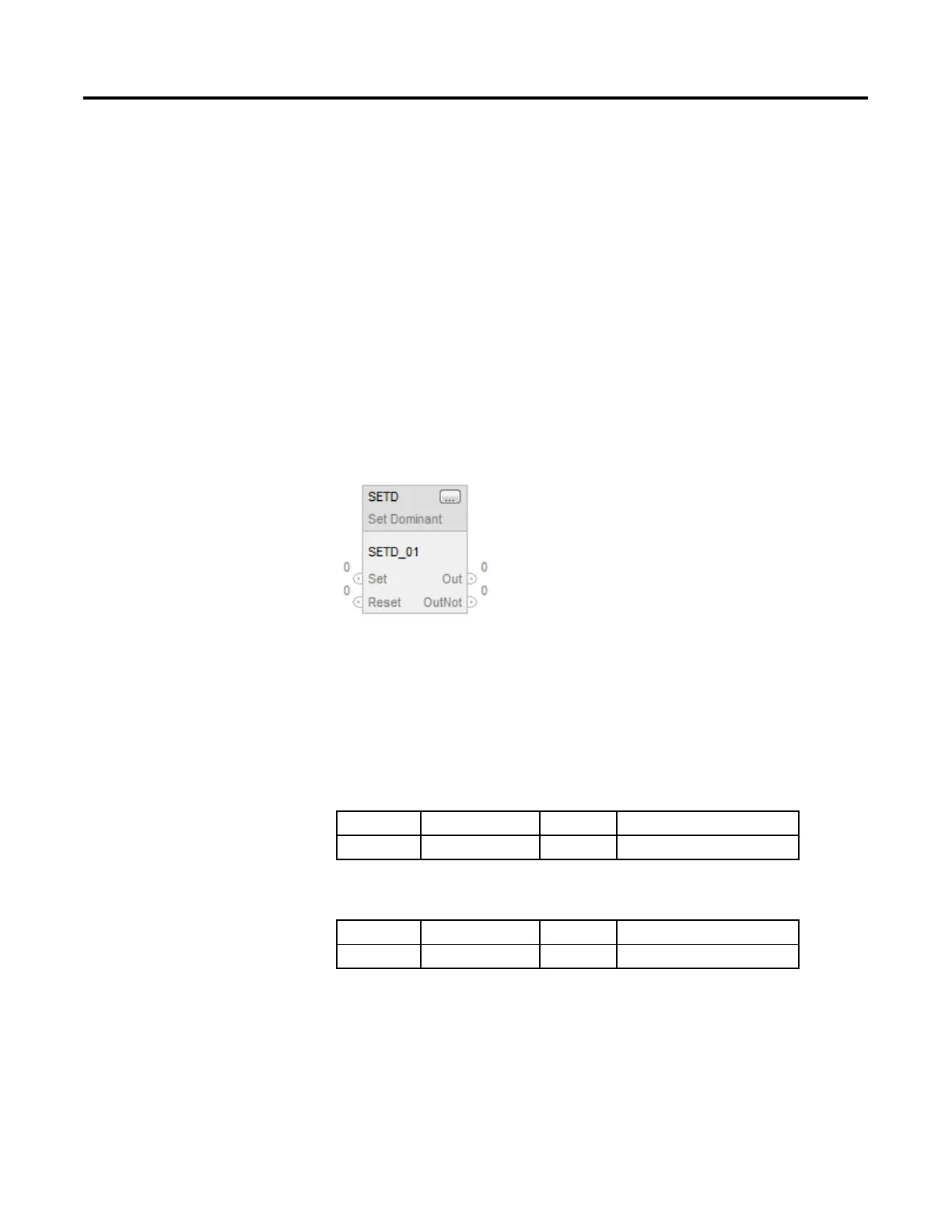

Function Block
Structured Text
SETD(SETD_tag);
Operands
Function Block
Operand Type Format Description
SETD tag DOMINANT_SET structure SETD structure
Structured text
Operand Type Format Description
SETD tag DOMINANT_SET structure SETD structure
See Structured Text Syntax for more information on the syntax of expressions
within structured text.
Set Dominant (SETD)
