Rockwell Automation Publication 20A-UM001N-EN-P - July 2013 101

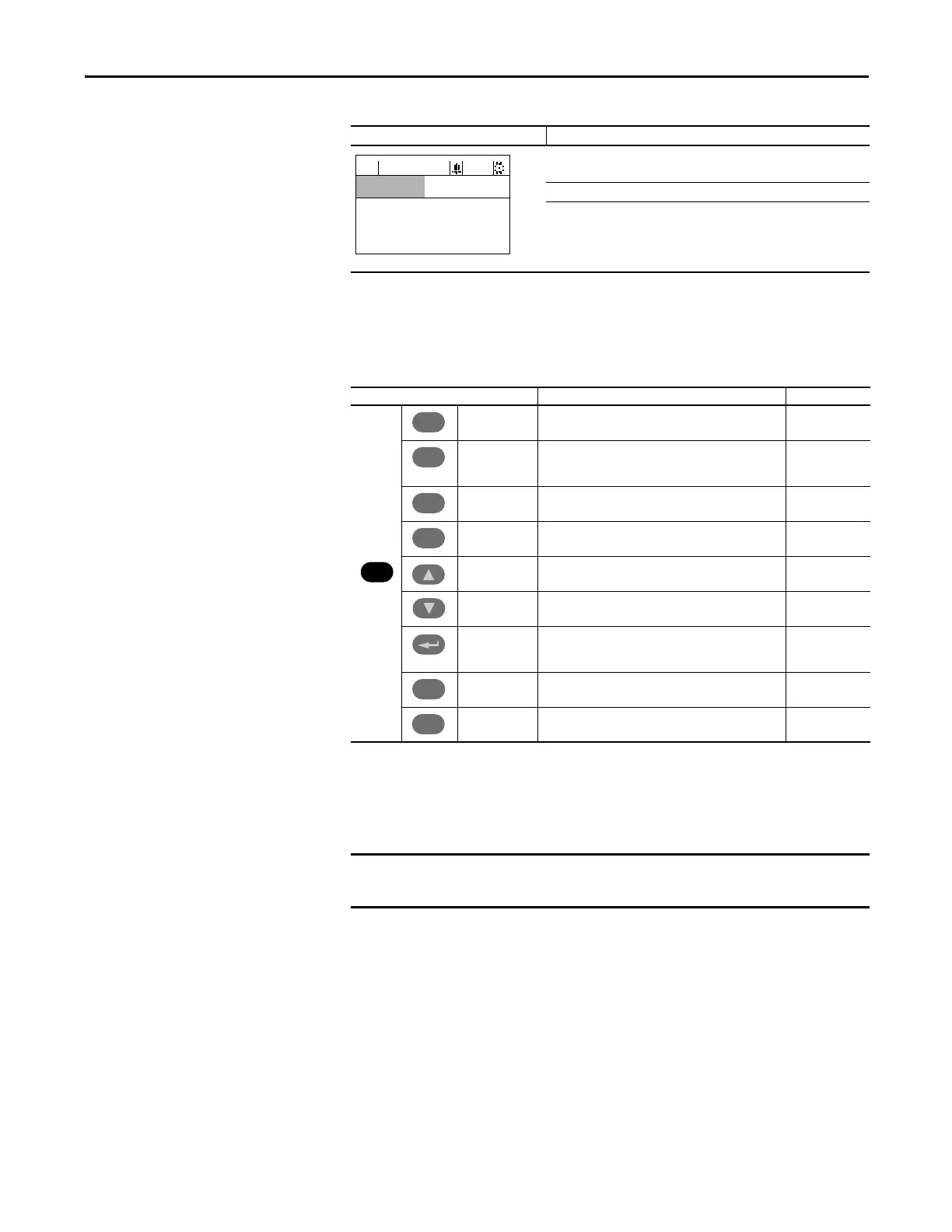

HIM Overview Appendix B
LCD Display Elements
ALT Functions
To use an ALT function, start at the Main Menu and press the ALT key, release it,
then press the programming key associated with one of the functions listed in the
table below.
Removing the HIM
The HIM can be removed while the drive is powered. Normally, the drive issues a
fault when the HIM is removed because it detects that a device is missing.
Display Description
Direction⎥ Drive Status⎥ Alarm⎥ Auto/Man⎥ Information
Commanded or Output Frequency
Programming / Monitoring / Troubleshooting
F-> Power Loss Auto
0.0
Hz
Main Menu:
Diagnostics
Parameter
Device Select
ALT Key and then … Performs this function … HIM Type
S.M.A.R.T. Displays the S.M.A.R.T. screen. LCD
Log In/Out Log in to change parameter settings.
Log out to protect parameter settings.
Change a password.
LED
View Enables the selection of how parameters are viewed, or
detailed information about a parameter or component.
LCD
Device Select a connected adapter for editing. LED
Lang Displays the language selection screen. LCD
Auto / Man Switches between Auto and Manual Modes. LCD and LED
Remove Enables HIM removal without causing a fault if the HIM is
not the last controlling device and does not have Manual
control of the drive.
LCD and LED
Exp Enables value to be entered as an exponent.
(Not available on PowerFlex 70.)
LCD
Param # Enables entry of a parameter number for viewing/
editing.
LCD
HIM removal is permissible only in Auto mode. If the HIM is removed while in
Manual mode, or the HIM is the only remaining control device, a fault occurs.
