Allen-Bradley PowerFlex 70 User Manual

Rockwell Automation Publication 20A-UM001N-EN-P - July 2013 99
Appendix B
HIM Overview
This appendix provides information for connecting the HIM, and using the
HIM to view and program the drive parameters.
External and Internal
Connections

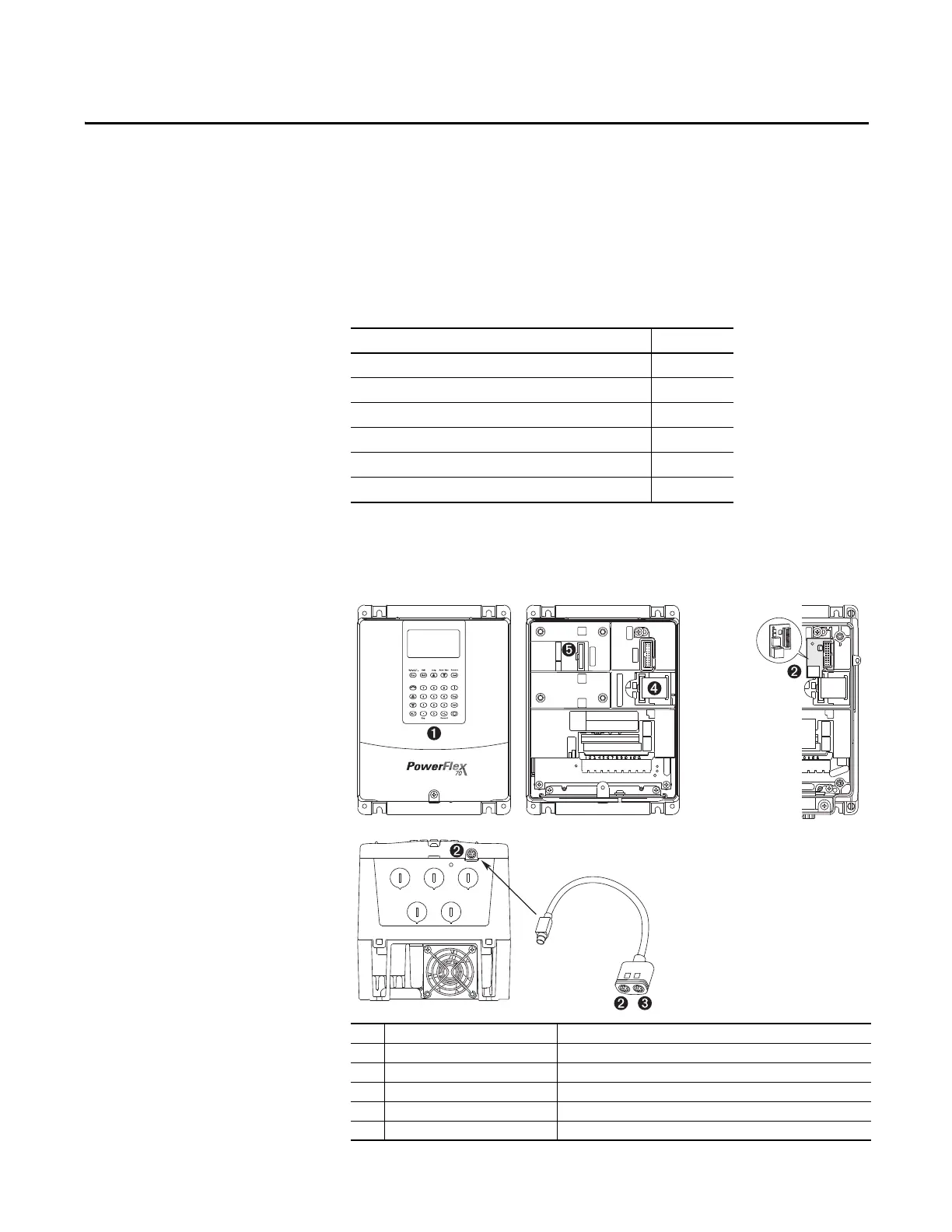

The PowerFlex 70 drive provides a number of cable connection points
(B frame shown).
Topic Page
External and Internal Connections 99
LCD Display Elements 101
ALT Functions 101
Removing the HIM 101
Menu Structure 102
Viewing and Editing Parameters 103
No. Connector Description
➊ DPI Port 1 HIM connection when installed in cover.
➋ DPI Port 2 Cable connection for handheld and remote options.
➌ DPI Port 3 Splitter cable connected to DPI Port 2 provides additional port.
➍ Control / Power Connection Connection between control and power boards.
➎ DPI Port 5 Cable connection for communications adapter.
CTRL BD
GND
2
1or3
COMM PORT
CTRL BD
GND
UIB CONN
CONTROL/POWER CONN
WIRE
STRIP
CONTROL
POWER
SK-M9-SCB1
IP 20
(NEMA/UL Type 1)
IP 66
(NEMA/UL Type 4X/12)
Optional Service
Connection Board
(SK-M9-SCB1)
provides temporary
DPI connection with
drive cover
removed.
