Allen-Bradley PowerFlex 70 User Manual

Rockwell Automation Publication 20A-UM001N-EN-P - July 2013 65
Programming and Parameters Chapter 1

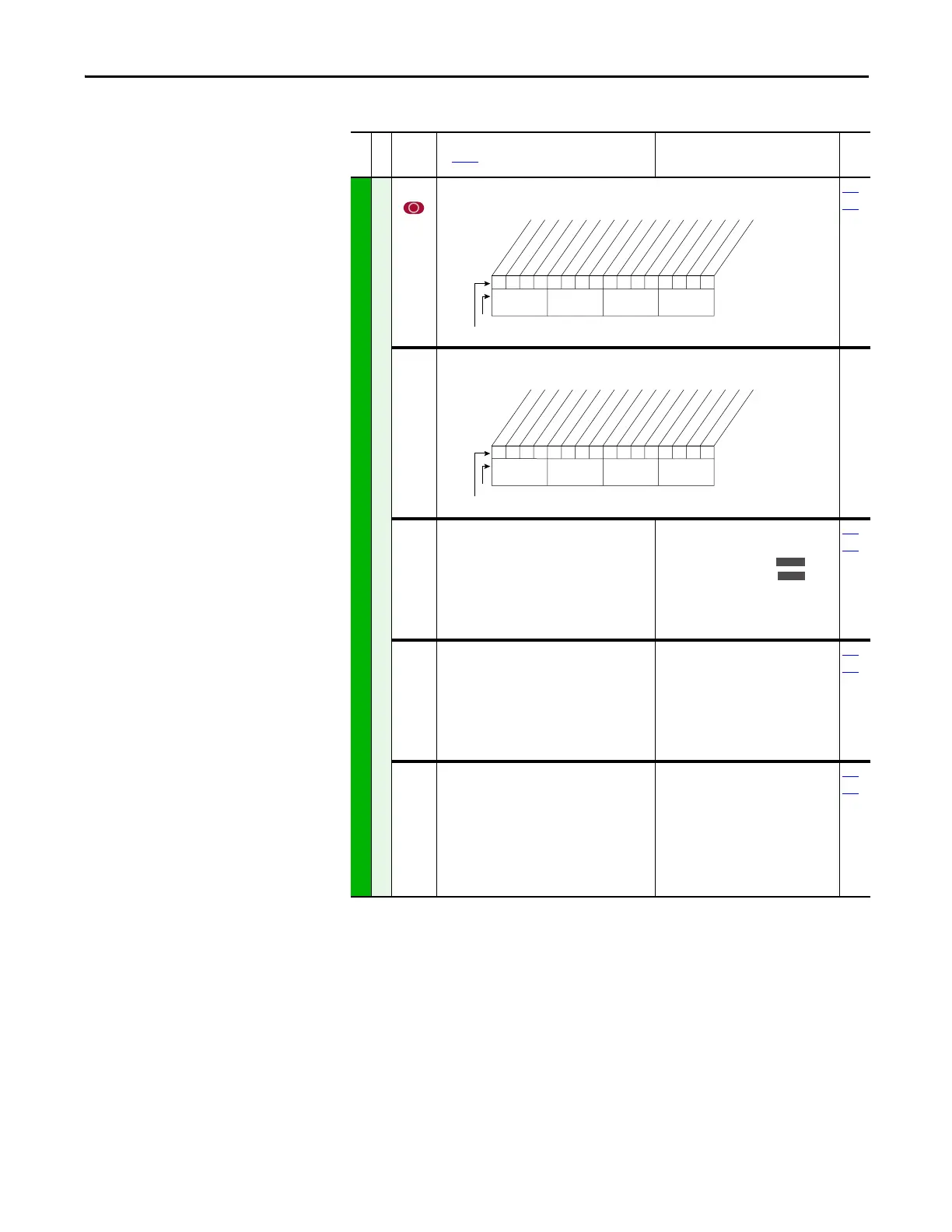

Inputs and Outputs File (file J)
File J Group No.
Parameter Name and Description
See page 14 for symbol descriptions
Values
Related
INPUTS and OUTPUTS (file J)
Analog Inputs
320 [Anlg In Config]
Selects the mode for the analog inputs.
322
323
321 [Anlg In Sqr Root]
Enables/disables the square root function for each input.
322
325
[Analog In 1 Hi]
[Analog In 2 Hi]
Sets the highest input value to the analog input x
scaling block.
Default:
Min/Max:
Units:
10.000 Volt
10.000 Volt
4.000/20.000 mA ,
0.000/20.000 mA ,
±10.000V,
0.000/10.000V
0.001 mA,
0.001 Volt
091
092
323
326
[Analog In 1 Lo]
[Analog In 2 Lo]
Sets the lowest input value to the analog input x
scaling block.
Default:
Min/Max:
Units:
0.000 Volt
0.000 Volt
4.000/20.000 mA,
0.000/10.000V (No. 323),
±10.000V (No. 326)
0.000/10.000V,
0.001 mA,
0.001 Volt
091
092
324
327
[Analog In 1 Loss]
[Analog In 2 Loss]
Selects drive action when an analog signal loss is
detected. Signal loss is defined as an analog
signal less than 1V or 2mA. The signal loss event
ends and normal operation resumes when the
input signal level is greater than or equal to 1.5V
or 3mA.
Default:
Options:
0
0
0
1
2
3
4
5
6
“Disabled”
“Disabled”
“Disabled”
“Fault”
“Hold Input”
“Set Input Lo”
“Set Input Hi”
“Goto Preset1”
“Hold OutFreq”
091
092
0xx 0xxxxxxxxxxxx
10 01234567891112131415
1=Current
0=Voltage
x =Reserved
Bit #
Factory Default Bit Values
Analog In 1
Analog In 2
Nibble 1Nibble 2Nibble 3Nibble 4
0xx 0xxxxxxxxxxxx
10 01234567891112131415
1=Enable
0=Disable
x =Reserved
Bit #
Factory Default Bit Values
Analog In 1
Analog In 2
Nibble 1Nibble 2Nibble 3Nibble 4
Standard
E C
