Appendix B HIM Overview
LCD HIM
Numeric Keypad Shortcut
If you are using a HIM with a numeric keypad, press the ALT key and the +/–
key to access the parameter by typing the parameter number.

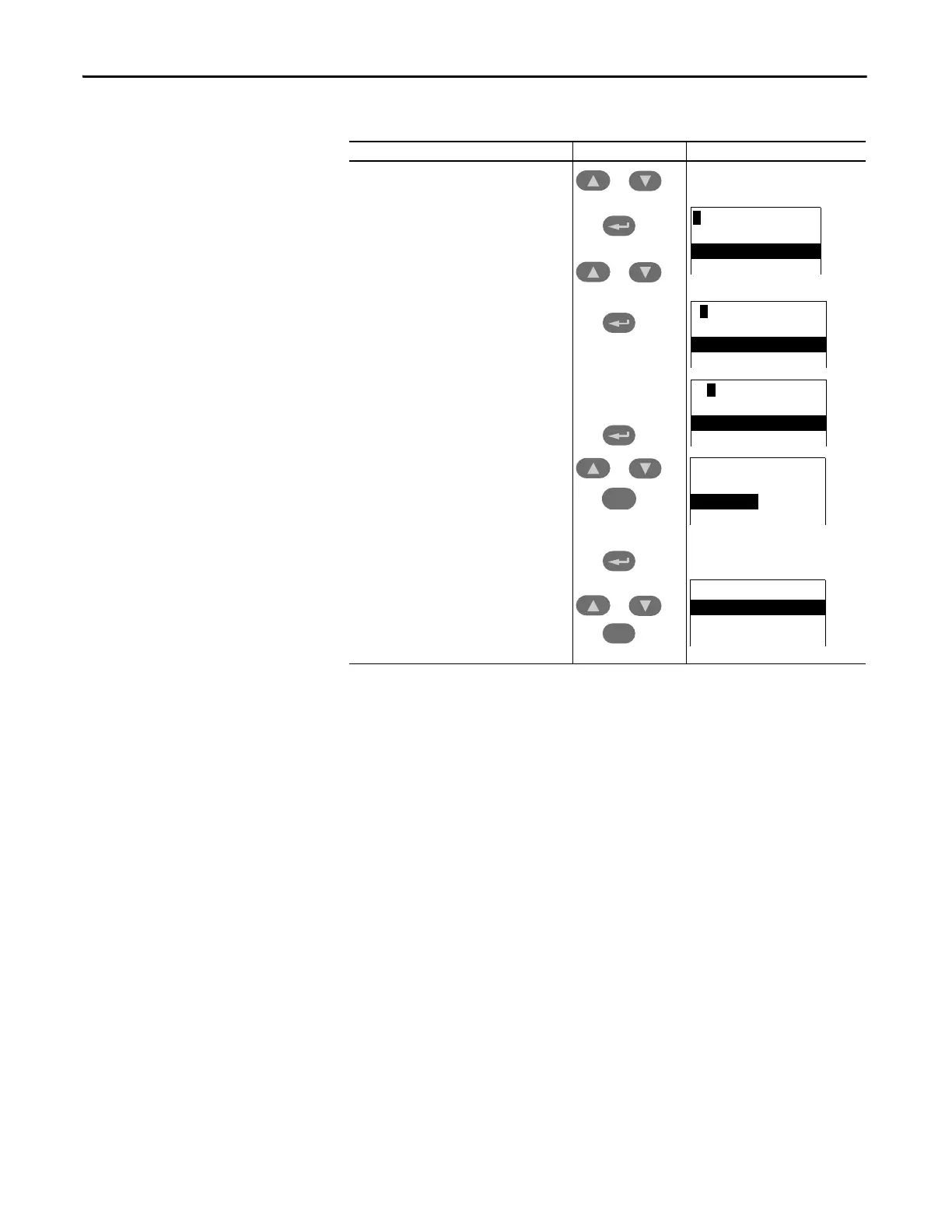

Step Keys Example Displays
1. In the Main Menu, press the up arrow or down
arrow to scroll to “Parameter.”
2. Press Enter. “FGP File” appears on the top line
and the first three files appear below it.
3. Press the up arrow or down arrow to scroll
through the files.
4. Press Enter to select a file. The groups in the file
are displayed under it.
5. Repeat steps 3 and 4 to select a group and then
a parameter. The parameter value screen
appears.
6. Press Enter to edit the parameter.
7. Press the up arrow or down arrow to scroll
through the parameters. Press Sel to move the
curser down to change the value. If desired,
press Sel to move from digit to digit, letter to
letter, or bit to bit. The digit or bit that you can
change is highlighted.
8. Press Enter to save the value. If you want to
cancel a change, press Esc.
9. Press the up arrow or down arrow to scroll
through the parameters in the group, or press
Esc to return to the group list.
Sel
Esc
or
or
or
or
FGP: File
Monitor
Motor Control
Speed Command
FGP: Par 55
Maximum Freq
130.00 Hz
[ALT] [VIEW] -> Limits
FGP: Par 55
Maximum Freq
90.00 Hz
[ALT] [VIEW] -> Limits
FGP: Group
Motor Data
Torq Attributes
Volts per Hertz
FGP: Parameter
Maximum Voltage
Maximum Freq
Compensation
