Automatically Setting SSID
In the Protected Setup page:
1. Select Wireless Settings.
2. Press the Site Survey button at the bottom of the page to open the Wireless Site Survey page (FIG. 26).
3. Select a WEP secured AP from within the Site Survey page, and press the Connect button. .
4. If the security is not handled automatically, the information must be entered manually from the Wireless Security popup page.
Manually Setting SSID
In the Protected Setup page:
1. Select Wireless Settings.
2. Click on the Simple button to open the Wireless Security: Simple Mode popup window (FIG. 27).
3. Press the Security Type field to select WEP.
4. Press the SSID field. From the Network Name (SSID) keyboard, enter the SSID name used by the target Access Point (case
sensitive), and press Done when finished.
The card should be given the SSID used by the target AP. If this field is left blank, the device will attempt to connect to the
first available AP.
One of the most common problems associated with connection to a AP arises because of an improperly entered SSID. The
same case must be maintained when entering this information. ABC is not the same as Abc.
The alpha-numeric string is AMX by default, but can later be changed to any 32-character entry. This string must be
duplicated within the Network Name (SSID) field on the AP. As an example, if the SSID is TECHPUBS, this word and the case
within must match both the Network Name (SSID) field on the touch panel’s Network Name SSID field and on the AP’s Basic
Wireless Configuration page.
5. Toggle the Encryption button (FIG. 27) until it reads either 64 Bit Key Size or 128 Bit Key Size.
The 64/128 selection reflects the bit-level of encryption security. This WEP encryption level must match the encryption level
being used on the AP.

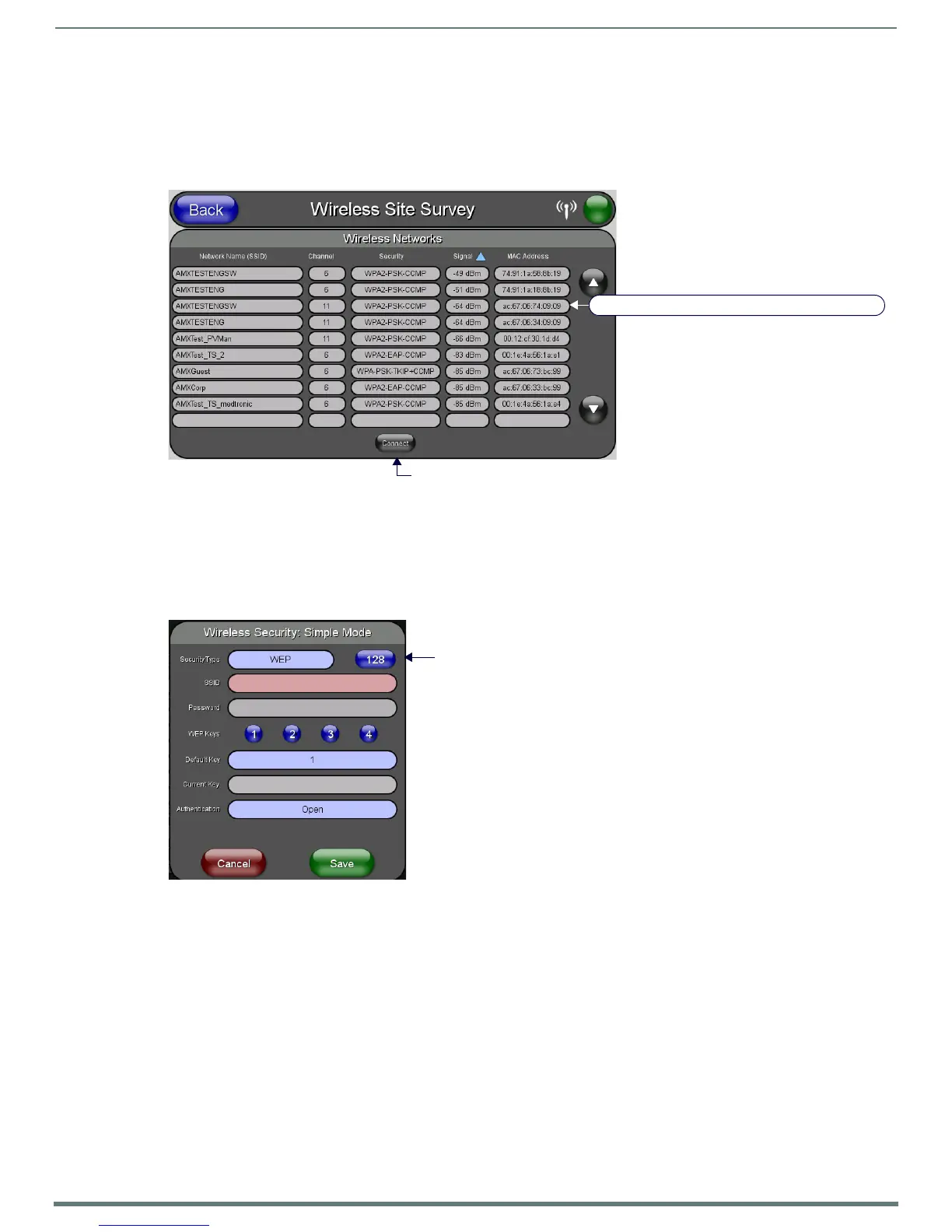

FIG. 26
Site Survey of available APs (Secured AP shown selected)
FIG. 27 Wireless Security: Simple Mode popup window
Connecting to the AP begins the communication
Select a target AP with the desired level of security
To Next Page
