Protected Setup Pages
70
MVP-5200i Modero® ViewPoint® Touch Panel with Intercom - Instruction Manual
Too ls
Press and hold the Too ls button to access the MVP-5200i’s Panel Logs, Panel Statistics, and Connection Utility buttons. Each of
these buttons opens a separate page, covered in detail below.
NOTE: The Tools button menu will remain visible for three seconds, regardless of whether or not the button continues to be held.
Panel Connection Logs Page
The Panel Connection Logs page (FIG. 70) chronicles all previous connections between the device and the network.
Panel Statistics Page
The Panel Statistics page (FIG. 71) displays activity between the device and the network in proportions of ICSP messages, blink
messages, and Ethernet versus wireless use
.

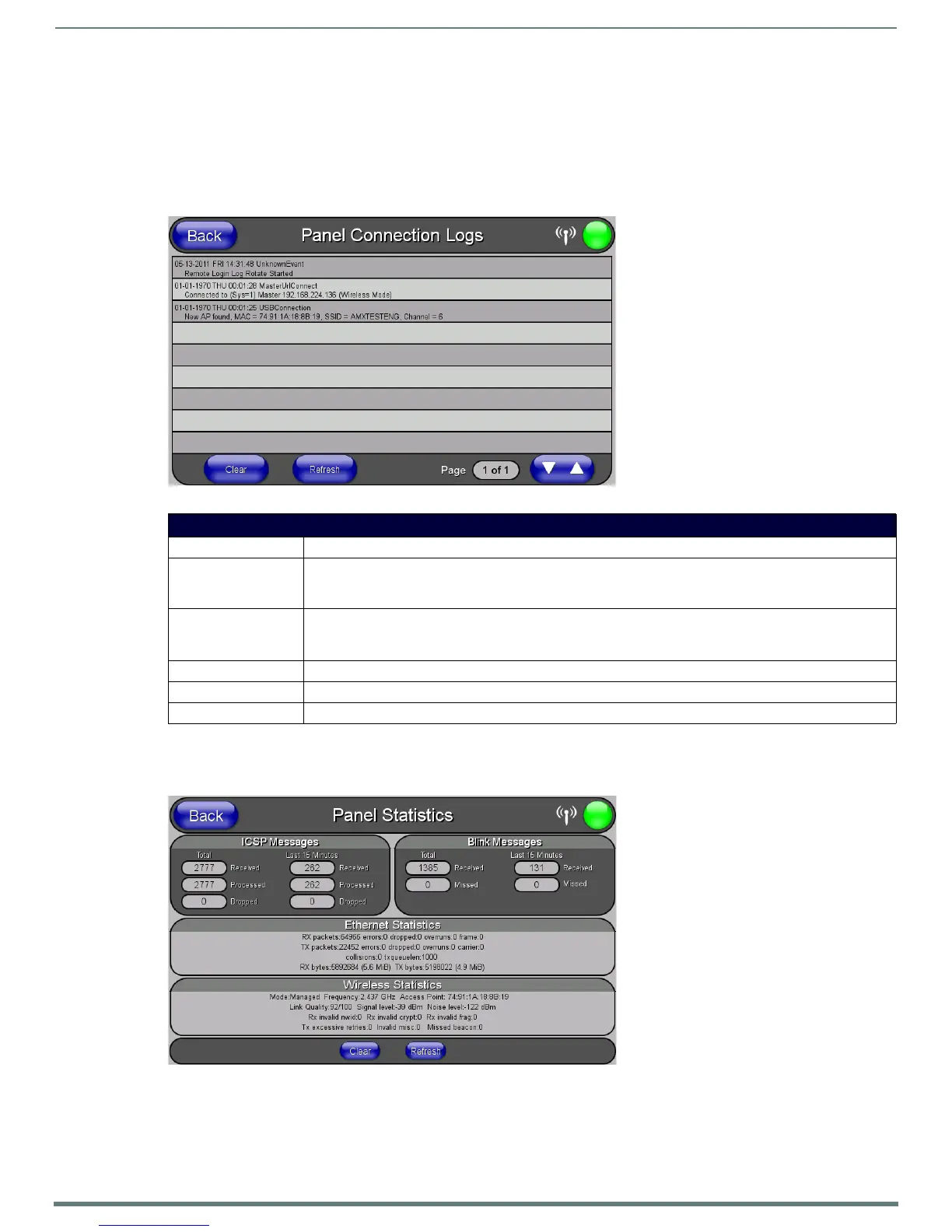

FIG. 70 Panel Connection Logs Page
Panel Connection Logs Page
Back: Saves all changes and returns to the previous page.
WiFi/Wired/USB Icon: The icon to the left of the Connection Status Icon displays whether the current connection to the Master is
Wireless (image of a radio antenna), Wired (image of three networked computers), or USB (USB connection
symbol).
Connection Status icon: The icon in the upper-right corner of each Protected Setup page provides a constant visual indication of current
connection status.
Note: a Lock appears on the icon if the panel is connected to a secured NetLinx Master.
Clear: Clears all connection logs.
Refresh: Refreshes displayed log information.
Page: Displays the current log page number. Use the Up/Down arrows to select log pages.
FIG. 71 Panel Statistics Page
