APRILIA C364M User Manual

ENGINE
3 - 61
ENGINES C361M / C364M
3.11.7. CHECKING THE DRIVE SHAFT
• Check the cam track for wear. Make sure there is no
scoring on the axial play surfaces.

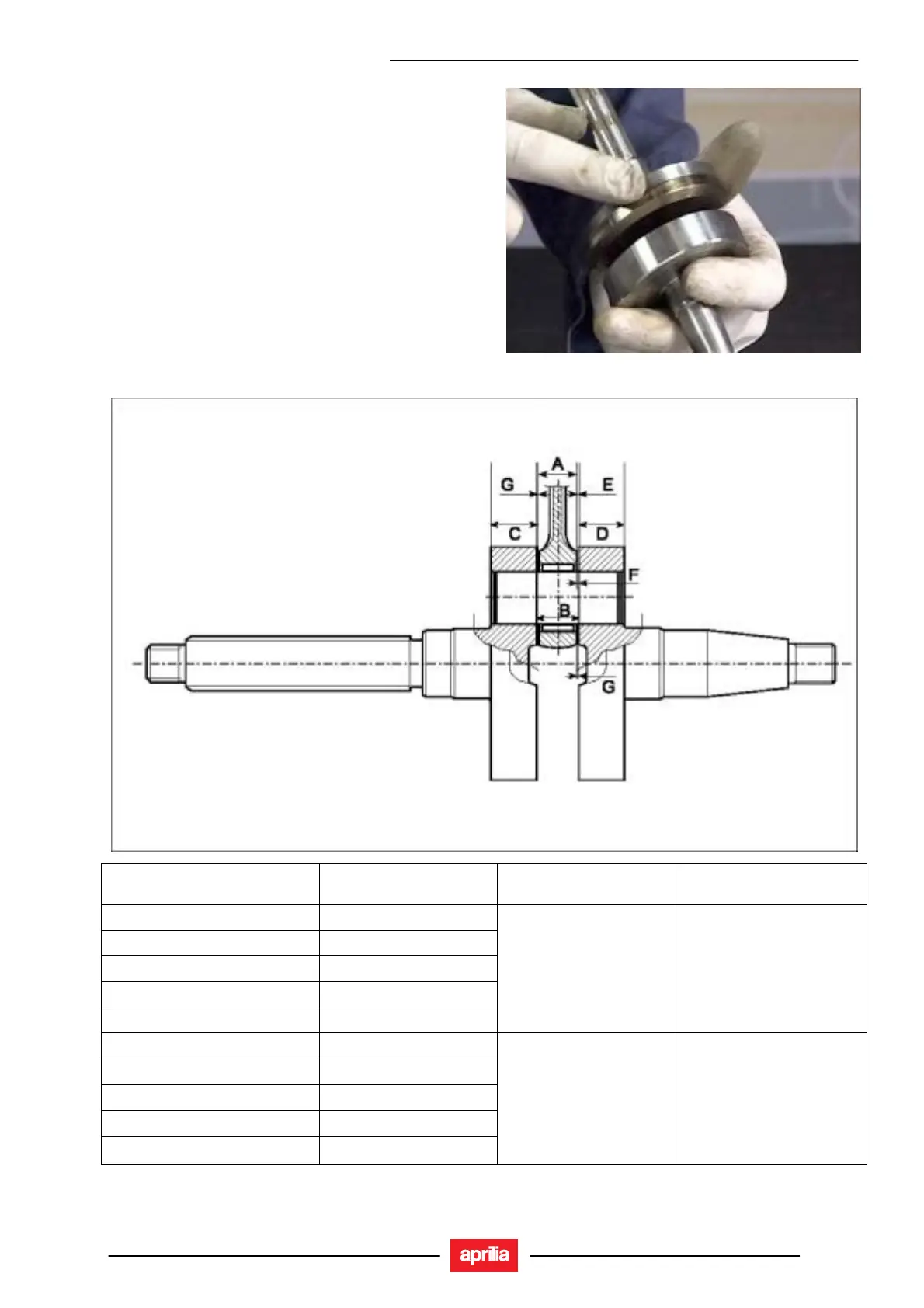

3.11.8. DRIVE SHAFT - CON ROD AXIAL PLAY CHECK.
PART SIZE PLAY ASSEMBLY PLAY
Con rod
A = 11,75
0
–0,05
Shoulder washer
G = 0,5
±0,03
Transmission side half-shaft C = 13,75
+0,04
0
Flywheel side half-shaft
D = 13,75
+0,04
0
Spacer tool
H = 40,64
E
0,25 ± 0,50
Cage B = 11,8
0
–0,35
Shoulder washer
G = 0,5
±0,03
Transmission side half-shaft
C = 13,75
+0,04
0
Flywheel side half-shaft
D = 13,75
+0,04
0
Spacer tool
H = 40,64
F
0,20 ± 0,75
