ENGINE
3 - 64
ENGINES C361M / C364M
3.11.10. CHECKING THE PLAY OF THE BEARINGS

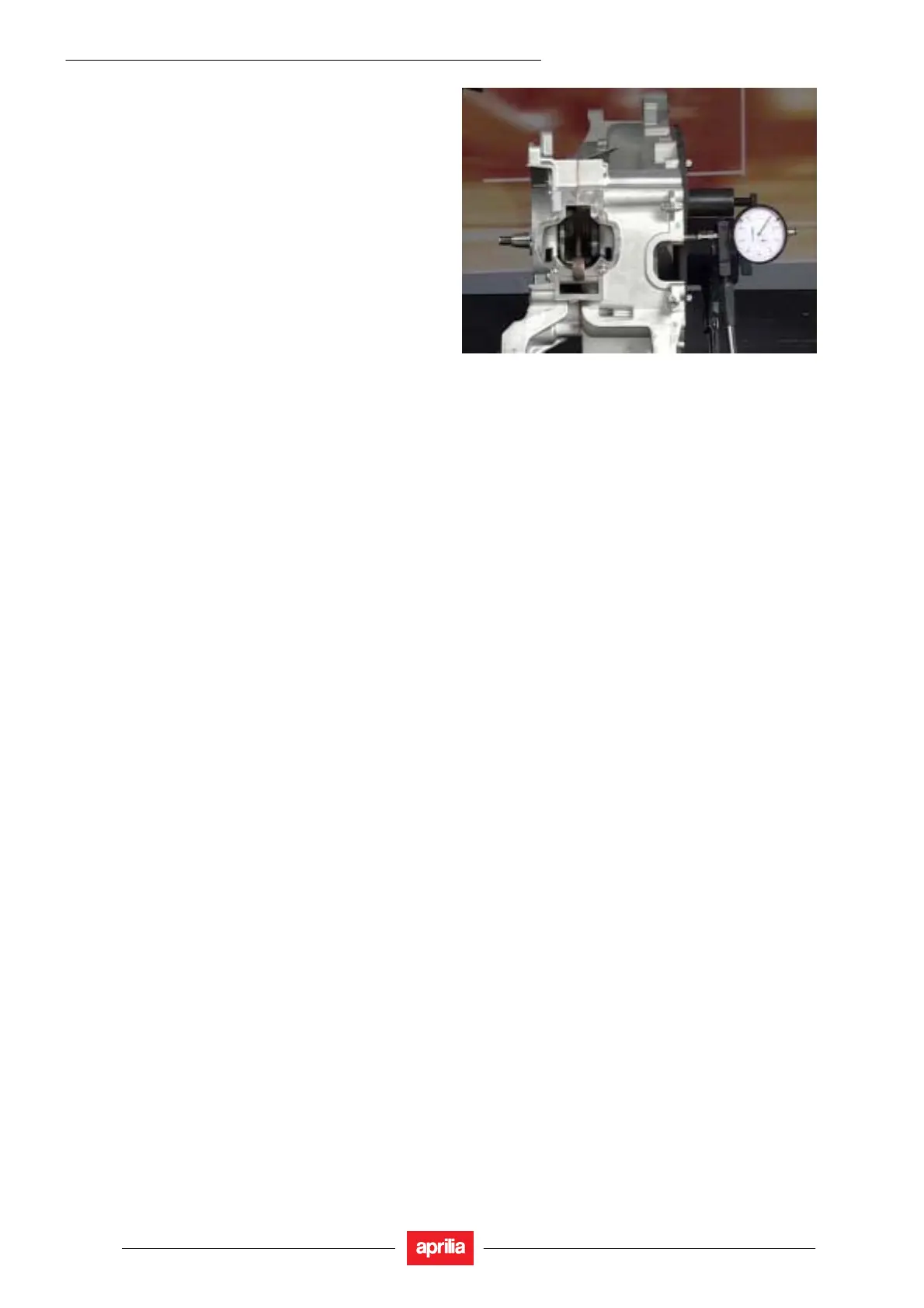

• Fit the specific magnetic support with comparator on
the end of the drive shaft.
• Check the axial play of the drive shaft. It should be:
0.10 - 0.12 mm when the case is hot.
0.06 - 0.08 mm when the case is cold.
The limit value is 0.02 to 0.03 mm when the case is cold.
If this limit is not met, the case must be taken to pieces and
reassembled.
