Atag i Series Technical Guide

Integral programmer
If you are using the built-in programmer to control the heating times going On and O then these are the settings
to change.
The built-in time program of the boiler display works in two dierent ways. There is a setting within the customer ‘Complete
menu’, ‘Screen Settings’, then ‘Time Program service type’ and there the setting can be changed to either ‘Extended Time
Program’ (default) or ‘Program’.
‘Extended Time Program’ (default) would be for the ATAG eBus connect products, like ATAG ONE
Zone
& ATAG Cube
(Thermoregulation setting no.2 & 4), which work with the built-in timer. These time settings are shown in the boiler and within
the ATAG ONE
Zone
app/portal heating schedule.
‘Program’ would be used where the front display integral timer is used for the time setting element with the 230V SwL or Volt
free On/O contacts. (Thermoregulation setting no.0 & 3, including SwL)

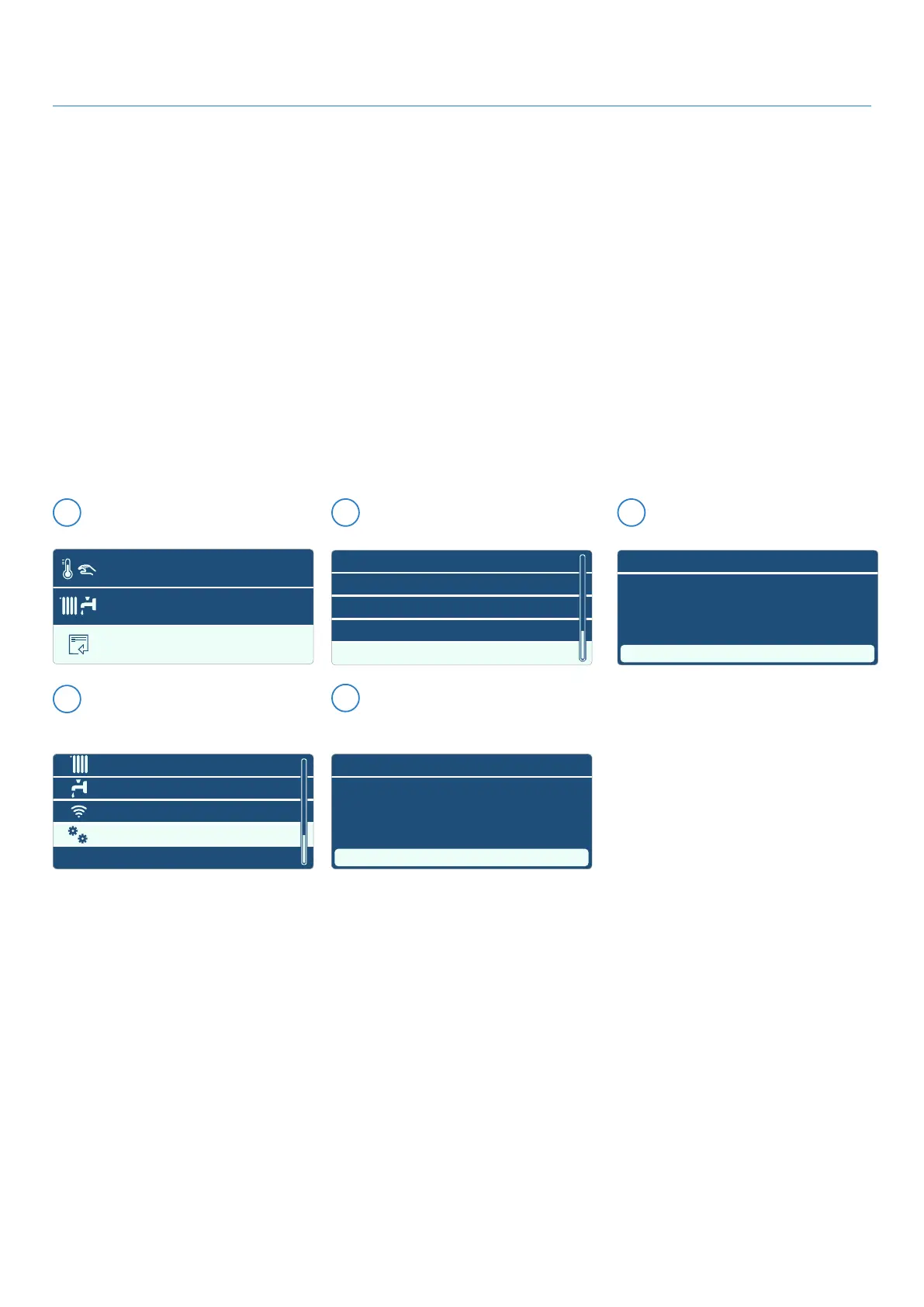

Customer Complete Menu
Time program / Manual
Summer / Winter / OFF
Complete Menu
CH Settings
DHW Settings
Connectivity Settings
Screen Settings
5
Scroll the wheel to select Program
and Press OK to confirm selection.
Time Program service type
Program
Select time program service type according to
Ebus devices present in your network
1
Brightness in standby
Home screen timing
Home screen timing
System measurement unit
Time Program service type
Time Program service type
3
Screen Settings
2
Scroll the wheel to select Extended
Time Program and press OK to
confirm selection.
Time Program service type
Extended Time Program
Select time program service type according to
Ebus devices present in your network
4
