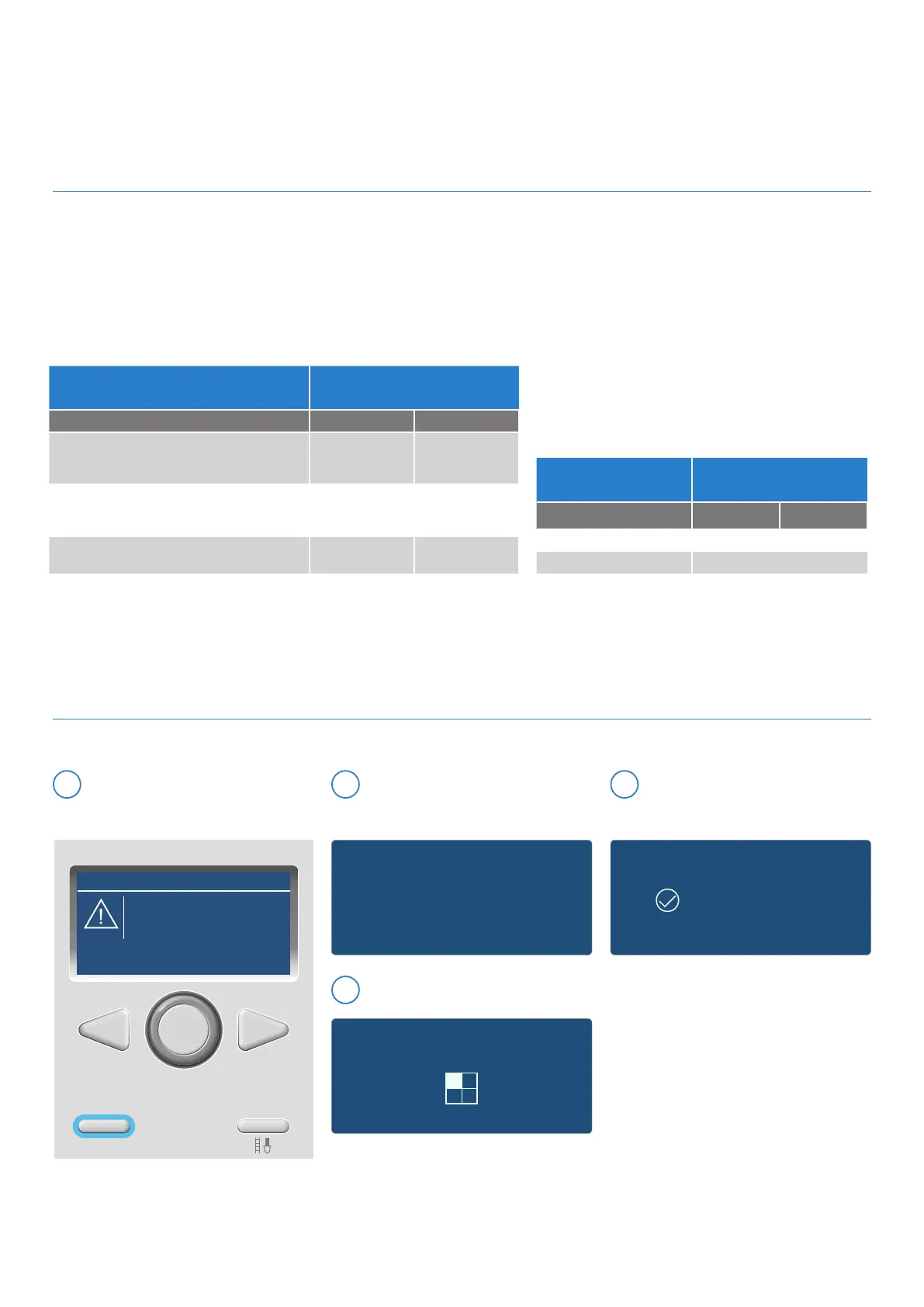

Equivalent flue lengths
With the introduction of the upgraded ATAG i-range, there are some changes to the maximum equivalent flue
lengths applicable to our boilers. The revised figures are:
Flue lengths
Concentric Flue system Ø 60 / 100mm & 80 / 125mm
Dimensions flue gas system and air supply system.
Maximum equivalent flue length = distance between boiler
(from elbow or vertical adapter) and the end of terminal.
BOILER
MAXIMUM HORIZONTAL OR VERTICAL
EQUIVALENT FLUE LENGTH
(Ø 60/100mm (Ø 80/125mm
i24C, i28C, iC Economiser 27 Plus
i15S, i18S, i24S
i15R, i18R, i24R
15m 50m
i36C, i40C
i32S, i40S
i32R, i40R
9m 45m
iC Economiser 35 Plus
iC Economiser 39 Plus
8m 40m
FLUE BEND EQUIVALENT FLUE LENGTH
(Ø 60/100mm (Ø 80/125mm
45° bend resistance length 1.3m 1.9m
87° bend resistance length 1.9m 3.0m
Reset a fault code
8.5.2
Do you really want to perform the reset? If you
press OK buton, the reset command will be
executed otherwise, by way of ESC, the previous
page is shown.
The message on the screen left appears.
Press OK to reset the error, otherwise the
previous screen is shown.
2
The Reset in Progress message appears.
3
After a while the Fault Solved message
appears. After the code is reset, the Home
screen appears.
4
RESET
BACK OK
19°25/07/18 09:00
23.2º
75°45°
ECO AUTO
Press OK to enter Menu
1.4 bar
00 02 04 06 08 10 12 14 16 18 20 22 24
1
Fan Error
ALERT
Fault 612
25/07/18 09:00
Press RESET
When an error occurs, the fault code
and description appears on the screen. To
reset the fault code, press the RESET button.
1
44
