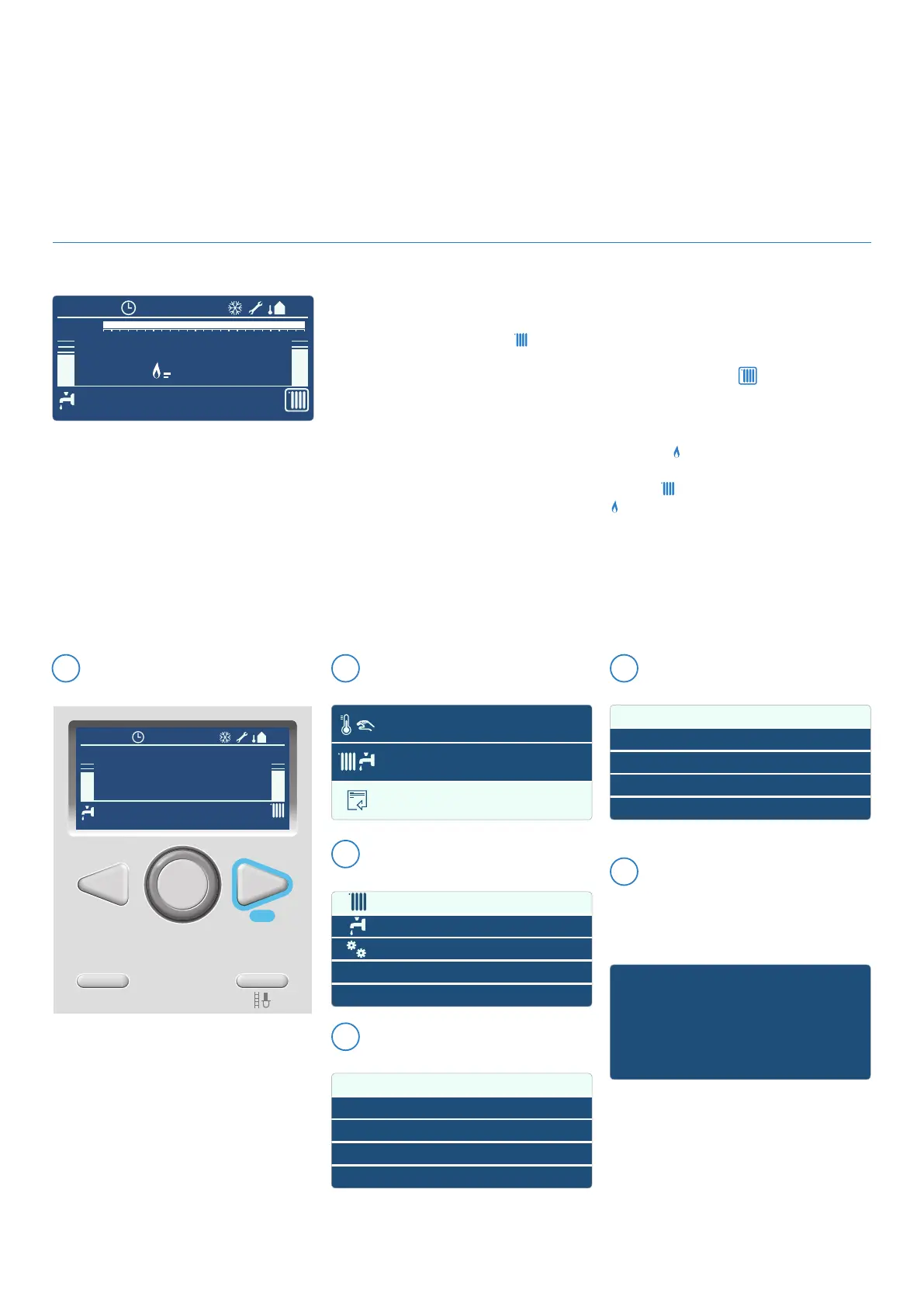

Central heating system
The CH program is always active after start-up.
This is indicated by a rad symbol .
If there is heat request, it is indicated by a square around the rad symbol
and the description at the bottom of the screen of ‘C.Heating Active’.
The heating will be put into operation. The circulation pump will switch on
and the burner will switch on after 1 to 2 minutes (flame icon) .
When there is no more heat requested the radiator symbol may have the
square around it or not, but the flame (flame icon) symbol will disappear.
The pump will continue to run for 60 seconds due to the pump over run
feature. The description at the bottom of the screen of ‘CH Pump Overrun’.
From the controller Home screen,
press OK.
1
Controls and explanation
of the functions
19°25/07/18 09:00
80°60°
ECO AUTO
C.Heating Active
1.5 bar
00 02 04 06 08 10 12 14 16 18 20 22 24
RESET
BACK OK
19°25/07/18 09:00
80°60°
ECO AUTO
Press OK to enter Menu
1.5 bar
Turn the selector wheel to highlight
Complete Menu. Press OK.
2
CH Settings is highlighted.
Press OK.
3
Option CH Setpoint Temp is
highlighted. Press OK.
4
Option T set Z1 is highlighted.
Press OK.
Note: T set Z2 and T set Z3 are inactive functions.
5
Turn the selector wheel until the
desired temperature appears on
the screen. Press OK.
Available temperature settings:
20°C - 80°C
6
Change the central heating setpoint temperature
Time program / Manual
Summer / Winter / OFF
Complete Menu
T set Z1
T set Z2
T set Z3
80
80
80
CH Settings
DHW Settings
Screen Settings
CH Setpoint Temp
Time program
Holiday function
AUTO function
Pump continuous running
T set Z1
Set the send temperature of zone 1
80°C
Press OK to confirm
9
