SmartROC T45-10 6 Daily Maintenance

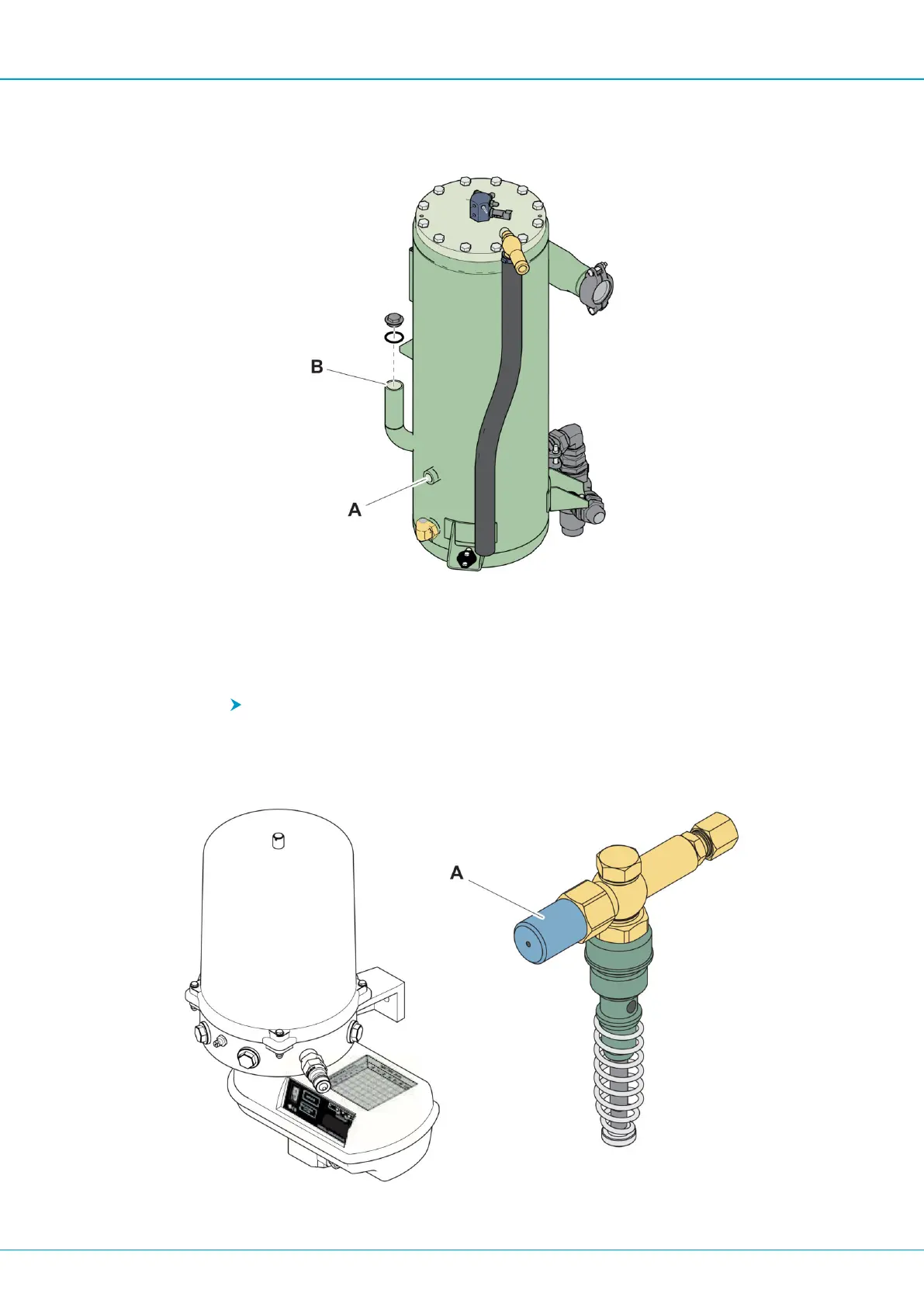

6.2.13CheckCompressorOilLevel

Makesurethemachineisonlevelground.

Switchoffthemachineandallowtheoilleveltosettleforatleast5minutes.

Checkthecompressoroillevel.Theindicatoronthegauge(A)mustbeinthegreen

zone.

Fillwithoilat(B),ifrequired.Usethecorrectamountandoilgrade.

6.2.14CheckConditionofCLSPump

Checkthatthereisnoleakageonthesafetyvalve(A)oftheCLSpump.
