SmartROC T45-10 6 Daily Maintenance

6.2.15CheckWinch

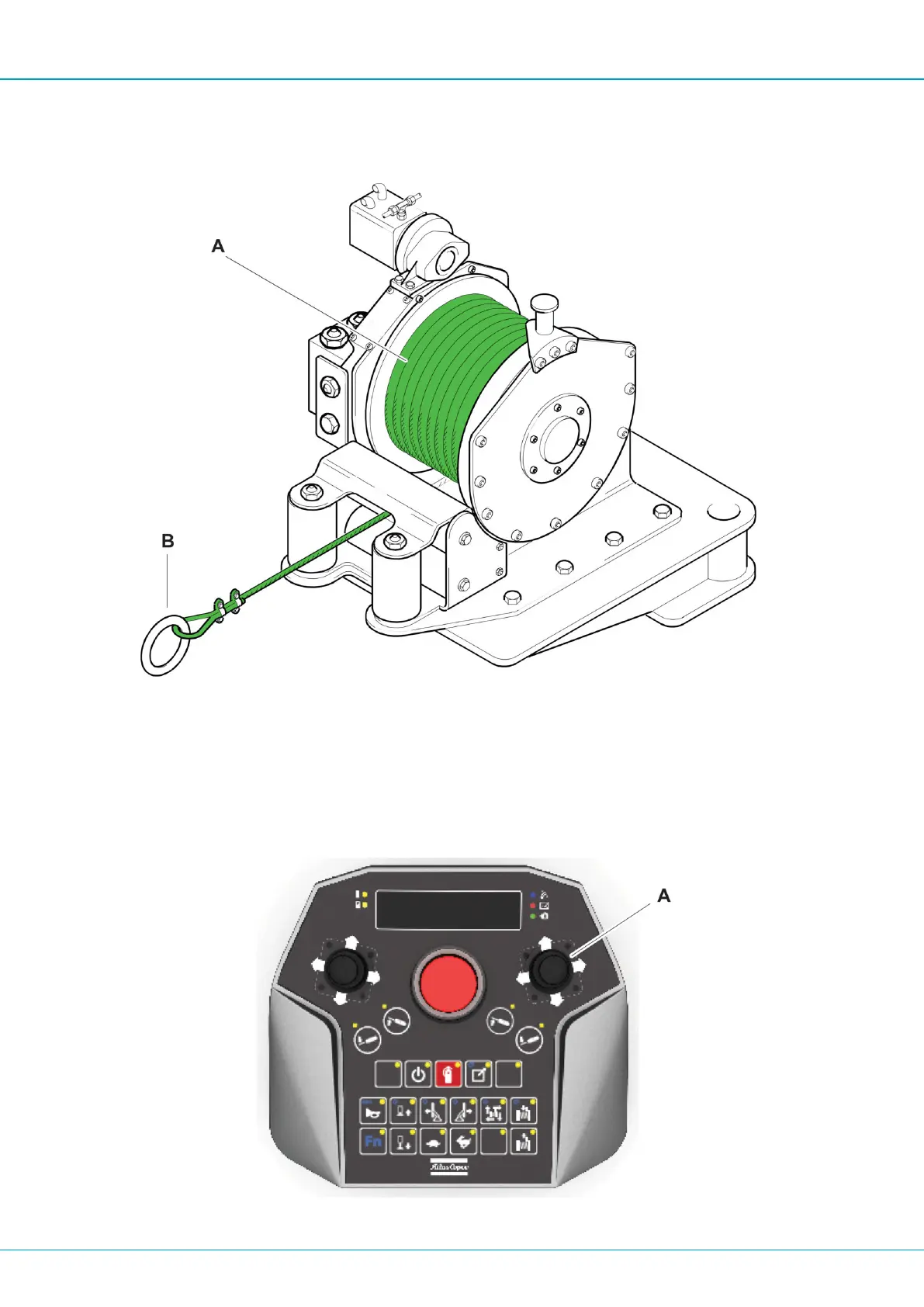

Checkfordamage,unwinding,wear,andcorrosiononthewinchcable(A).

Checkfordamage,cracks,andwearonthehook(B)andcheckthatitisproperly

mounted.

6.2.16CheckSmallRemoteControl

Table of Contents3
Introduction5
Safety First5
The Purpose of this Publication5
Target Group5
Product Description7
Intended Use of the Product7
Nonintended Use of the Product7
Main Components8
Data Plate9
Controls and Instruments11
Operating Controls12
Right Control Panel13
Left Lever in Tram Mode/Positioning Mode14
Left Lever in Drill Mode15
Right Lever in Tram Mode/Positioning Mode16
Right Lever in Drill Mode17
Tramming Levers19
Operator's Environment Control Panel20
Winch Control Unit22
Operation25
Startup and Shutdown25
Turning on Battery Power25
Turning off Battery Power25
Starting the Diesel Engine26
Warming up the System27
Particle Filter Regeneration28
Delayed Engine Shutdown29
Stopping the Diesel Engine30
Activating the Winch Control Unit31
Deactivating the Winch Control Unit31
Tramming32
Preparations before Tramming32
Basic Tramming33
Tramming on Level Ground34
Tramming Uphill34
Tramming Downhill35
Tramming on Sideway Slopes35
Checking before Using the Winch36
Using the Winch When Tramming36
Checking after Tramming37
Positioning38
System Settings38
Machine Positioning40
Drill System Positioning42
Rod Handling44
Loading the Rod Carousel44
Drilling47
Drilling Settings47
Drill a Hole48
Stop Drilling49
Adding Drill Rods49
Changing a Drill Bit51
Checks During Drilling51
In Case of Breakdown or Incident52
Transport55
Preparations before Hoisting55
Before Loading the Machine Onto the Transport Vehicle55
Hoisting a Drill Rig56
Before Transporting the Loaded Drill Rig57
Daily Maintenance59
Maintenance Table59
Daily Maintenance Procedures59
Visual Check59
Wash Machine Externally61
Check Lubrication Oil Level Tank61
Drain Condensate in Pressure Tank61
Check Fire Extinguishers62
Check Emergency Stops and Work Lights63
Check Coolant Level64
Check Track Frames65
Check Motor Oil Level66
Check Diesel Engine and Compressor67
Check Hydraulic Tank68
Drain Prefilter68
Check Compressor Oil Level69
Check Condition of CLS Pump69
Check Winch70
Check Small Remote Control70
Technical Data73
Dimensions75
Highest Permitted Inclination Angles for Tramming and Drill Rig Setup78
Ordinary Tramming79
Tramming with the Feed in Vertical Position and Centered between the Track Frames80
Drill Rig Setup: the Feed in Vertical Position and Centered between the Track Frames81
Drill Rig Setup: the Feed in Vertical Position and the Boom Swung Maximum to the Left82
Drill Rig Setup: the Feed in Vertical Position and the Boom Swung Maximum to the Right83
Drill Rig Setup: the Feed Top in Extreme Position Forward, the Feed Laterally Vertical and Centered between the Track Frames84
Drill Rig Setup: the Feed Top in Extreme Position Forward and to the Left, and with the Boom Swung Maximum to the Left85
Drill Rig Setup: the Feed Top in Extreme Position Forward and to the Right, and with the Boom Swung Maximum to the Right86
