5.10 Status & Diagnostics
Use this subdivided menu to view and monitor the gateway’s channels, Syslog messages,
hardware / software product information, and to assess the gateway’s statistics and IP
connectivity information.
5.10.1 Gateway Statistics
Use the screens under Gateway Statistics to monitor real-time activity such as IP Connectivity
information, call details and call statistics, including the number of call attempts, failed calls, fax
calls, etc.
Note: The Gateway Statistics screens doesn’t refresh automatically. To view updated information
re-access the screen you require.
5.10.1.1 IP Connectivity
The IP Connectivity screen provides you with an online read-only network diagnostic connectivity
information on all destination IP addresses configured in the Tel to IP Routing table.
Note: This information is available only if the parameter ‘AltRoutingTel2IPEnable’ (described in
Table
5-10) is set to 1 (Enable) or 2 (Status Only).
Note: The information in columns ‘Quality Status’ and ‘Quality Info.’ (per IP
address) is reset if two minutes elapse without a call to that destination.
To view the IP connectivity information, take these 2 steps:
1. Set ‘AltRoutingTel2IPEnable’ to 1 or 2.
2. Open the ‘IP Connectivity’ screen (Status & Diagnostics menu > Gateway Statistics
submenu > IP Connectivity); the ‘IP Connectivity’ screen is displayed (Figure
5-36).

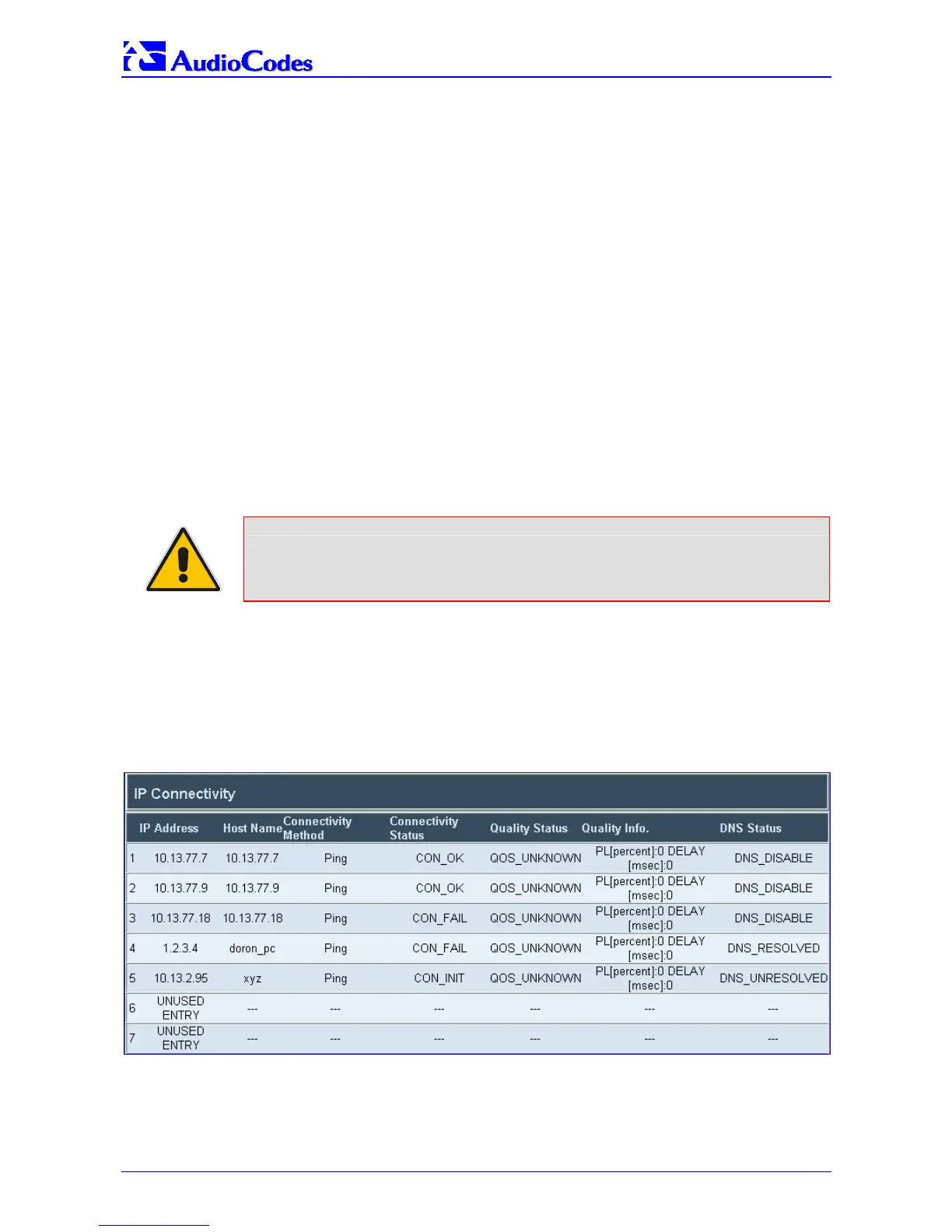

Figure
5-36: IP Connectivity Screen
