MP-1xx SIP
MP-1xx SIP User’s Manual 134 Document #: LTRT-65404

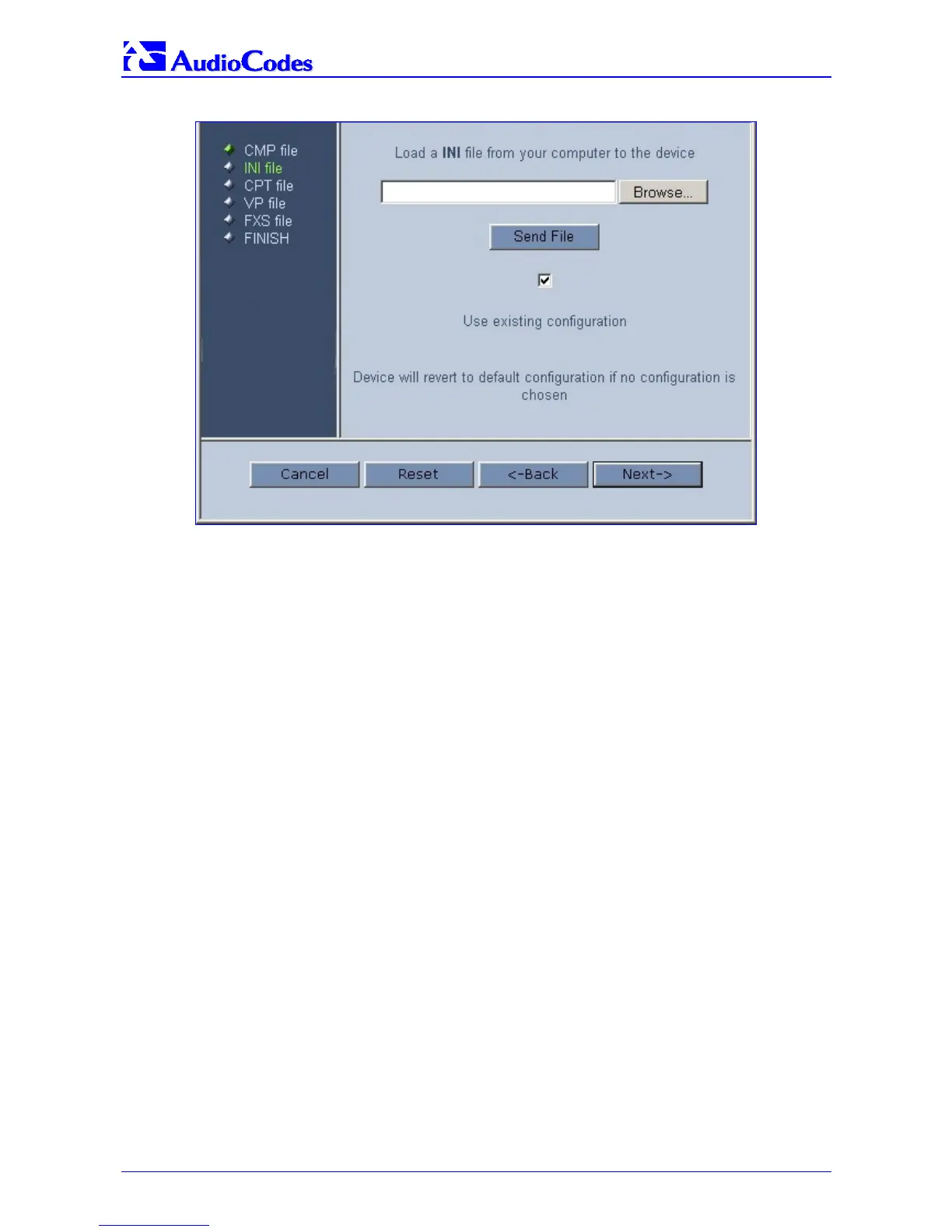

Figure 5-45: Load an ini File Screen
6. In the ‘Load an ini File’ screen, you can now choose to either:
Click Browse and navigate to the ini file; the check box ‘Use existing configuration’, by
default checked, becomes unchecked. Click Send File; the ini file is loaded to the MP-
1xx and you’re notified as to a successful loading.
Ignore the Browse button (its field remains undefined and the check box ‘Use existing
configuration’ remains checked by default).
Ignore the Browse button and uncheck the ‘Use existing configuration’ check box; no ini
file is loaded, the MP-1xx uses its factory-preconfigured values.
You can now choose to either:
Click Cancel; the MP-1xx resets utilizing the cmp, ini and all other configuration files
that were previously stored in flash memory. Note that these are NOT the files you
loaded in the previous Wizard steps.
Click Reset; the MP-1xx resets, utilizing the new cmp and ini file you loaded up to now
as well as utilizing the other configuration files.
Click Back; the ‘Load a cmp file’ screen is reverted to; refer to Figure 5-43.
Click Next; the ‘Load a CPT File’ screen opens, refer to Figure 5-46; Loading a new
CPT file or any other auxiliary file listed in the Wizard is optional.
