MP-1xx SIP
MP-1xx SIP User’s Manual 222 Document #: LTRT-65404
F.1.3 Creating a Loadable Prerecorded Tones File
For detailed information on the PRT file refer to Section 7.2 on page 147.
To create a loadable PRT dat file from your raw data files, take these 7
steps:
1. Prepare the prerecorded tones (raw data PCM or L8) files you want to combine into a single
dat file using standard recording utilities.
2. Execute the TrunkPack Downloadable Conversion utility, DConvert240.exe (supplied with
the software package); the utility’s main screen opens (shown in Figure F-1).
3. Click the Process Prerecorded Tones File(s) button; the Prerecorded Tones File(s) screen,
shown in Figure F-4, opens.

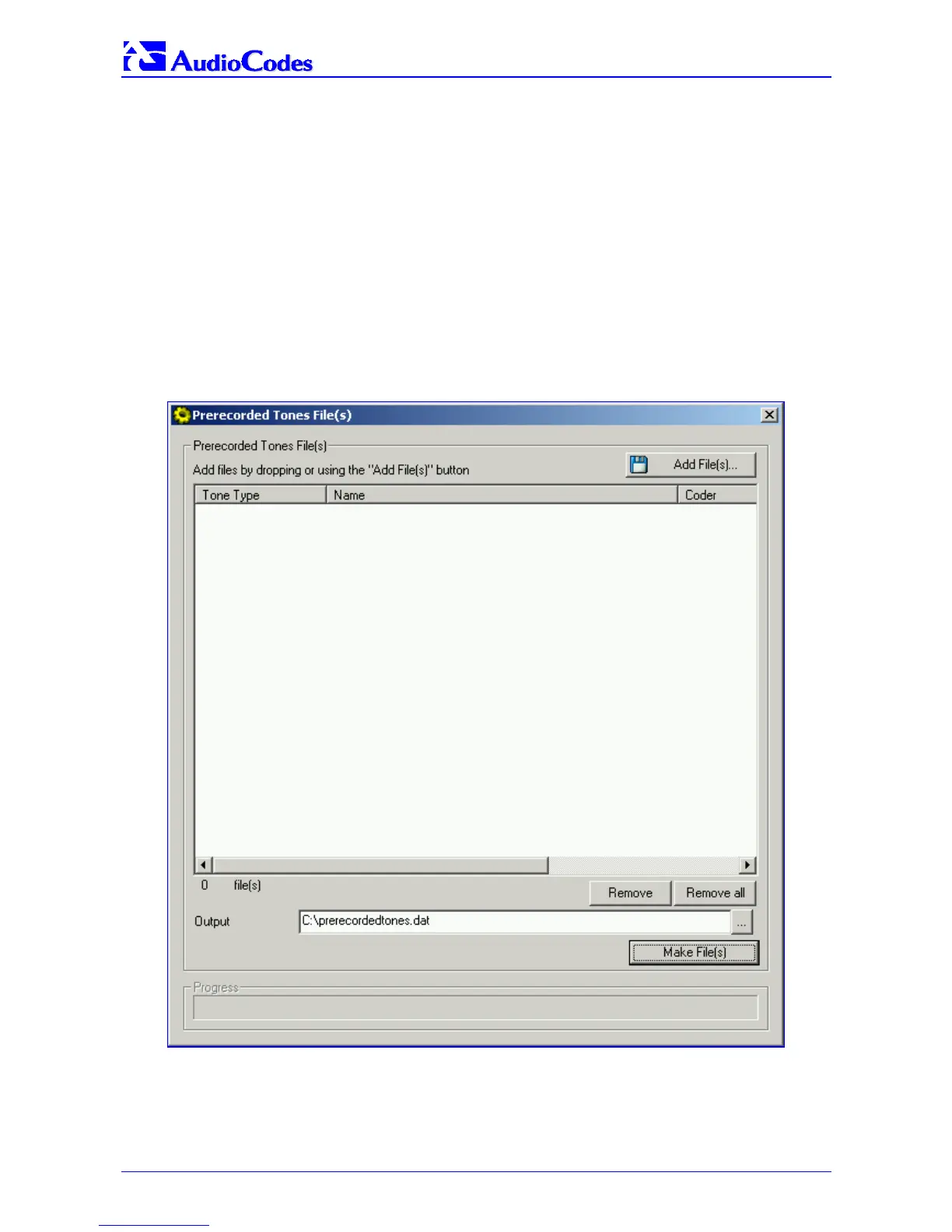

Figure F-4: Prerecorded Tones Screen
4. To add the prerecorded tone files (you created in Step 1) to the ‘Prerecorded Tones’ screen
follow one of these procedures:
Select the files and drag them to the ‘Prerecorded Tones’ screen.
