MP-1xx SIP User’s Manual 5. Configuring the MP-1xx
Version 4.4 127 March 2005
Table 5-37: Call Counters Description (continues on pages 126 to 127)
Counter Description
Number of Failed Calls
due to No Matched
Capabilities
This counter indicates the number of calls that failed due to mismatched gateway
capabilities. It is incremented as a result of an internal identification of capability
mismatch. This mismatch is reflected to CDR via the value of the parameter
‘DefaultReleaseReason’ (default is GWAPP_NO_ROUTE_TO_DESTINATION (3)),
or by the GWAPP_SERVICE_NOT_IMPLEMENTED_UNSPECIFIED(79) reason.
Number of Failed Calls
due to Other Failures
This counter is incremented as a result of calls that fail due to reasons not covered
by the other counters.
Percentage of
Successful Calls
The percentage of established calls from attempted calls.
Average Call Duration
[sec]
The average call duration of established calls.
Attempted Fax Calls
Counter
This counter indicates the number of attempted fax calls.
Successful Fax Calls
Counter
This counter indicates the number of successful fax calls.

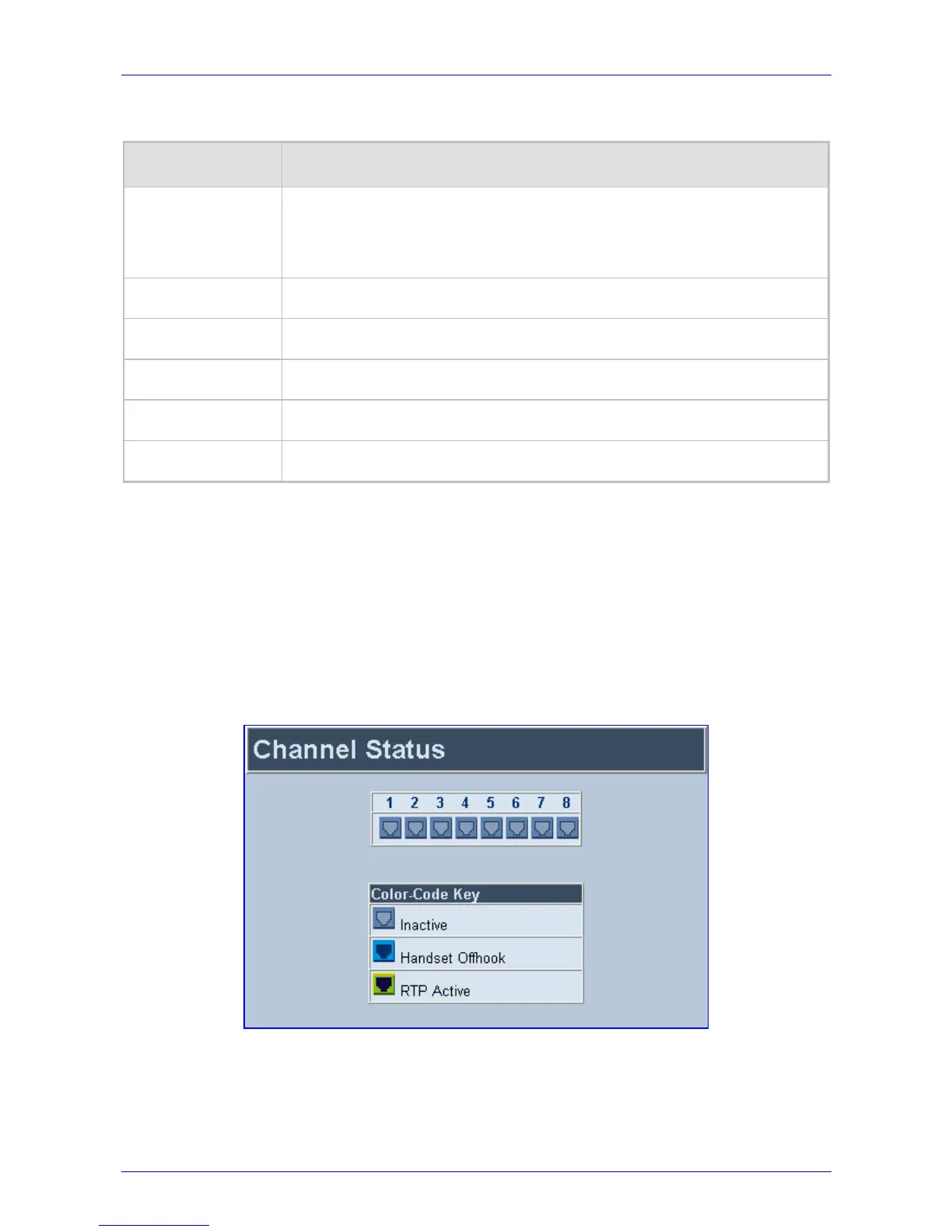

5.10.2 Monitoring the MP-1xx Channels
The Channel Status screen provides real time monitoring on the current channels status.
To monitor the status of the MP-1xx channels take this step:
• Open the ‘Channel Status’ screen (Status & Diagnostics menu > Channel Status); the
‘Channel Status’ screen is displayed (different screen for FXS and FXO).
Figure
5-38: MP-1xx/FXS Channel Status Screen
The color of each channel shows the call status of that channel.
• Not Connected (FXO only) - indicates that no analog line is connected to this port.
• Inactive - indicates this channel is currently onhook.
