Baxi POWER HT+ Series Installation And Service Manual

Unit POWER HT+
1.50
POWER HT+
1.70
POWER HT+
1.90
POWER HT+
1.110
Maximum absorbed power - Stand-by W 2.7 3 3 3
Tab.5 Other characteristics
Unit POWER HT+
1.50
POWER HT+
1.70
POWER HT+
1.90
POWER HT+
1.110
Electrical protection class IP21 IP21 IP21 IP21
Weight empty Kg 60 70 104 109
3.2.1 Sensor characteristics
Tab.6 Heating flow sensor and return sensor
Temperature (in °C) 30 65 85
Resistance (in ohms) 8060 2085 1070
3.3 Dimensions and connections

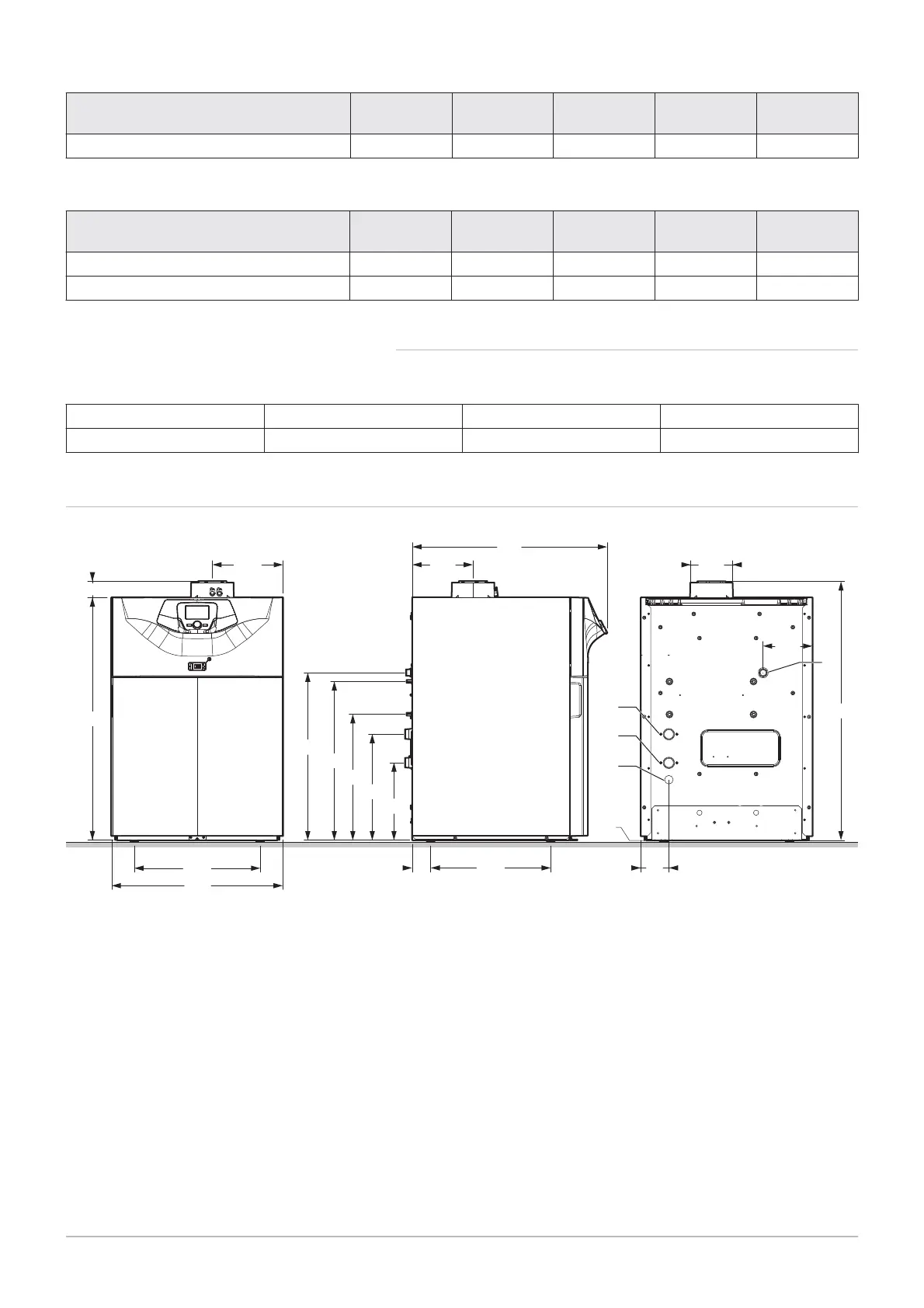

Fig.2 Dimensions and connections POWER HT+ 1.50 and POWER HT+ 1.70
600
440
247
848
56
681
212
42065
905
586
555
440
371
271
147
98
173
(1)
MW-3000001
1
2
4
3
1
Heating circuit return (G1")
2
Heating circuit flow (G1")
3
Gas inlet (G3/4”)
4
Condensate discharge (DN18)
(1)
Adjustable feet
