Baxi POWER HT+ Series Installation And Service Manual

1
1
Q flow rate (litres/hour)
2
H pressure in metres of water column (mWC)
3
Operating water flow rate at nominal heating flow rate = 1920 litres/
hour where ∆T = 30°C
4
Operating water flow rate at nominal heating flow rate = 2880 litres/
hour where ∆T = 20°C
5
Operating water flow rate at nominal heating flow rate = 3840 litres/
hour where ∆T = 15°C
1
Q flow rate (litres/hour)
2
H pressure in metres of water column (mWC)
3
Operating water flow rate at nominal heating flow rate = 2510 litres/
hour where ∆T = 30°C
4
Operating water flow rate at nominal heating flow rate = 3760 litres/
hour where ∆T = 20°C
5
Operating water flow rate at nominal heating flow rate = 5020 litres/
hour where ∆T = 15°C
1
Q flow rate (litres/hour)
2
H pressure in metres of water column (mWC)
3
Operating water flow rate at nominal heating flow rate = 3010 litres/
hour where ∆T = 30°C
4
Operating water flow rate at nominal heating flow rate = 4520 litres/
hour where ∆T = 20°C
5
Operating water flow rate at nominal heating flow rate = 6020 litres/
hour where ∆T = 15°C
5.3 Choice of the location
Before mounting the boiler, decide on the ideal position for mounting,
bearing in mind any Directives and the dimensions of the appliance.
Install the boiler on a solid, stable structure capable of bearing the
weight of the appliance when full of water and fully equipped.
When choosing the position for mounting the boiler, bear in mind the au
thorised position of the combustion gas discharge outlets and the air in
take vent.

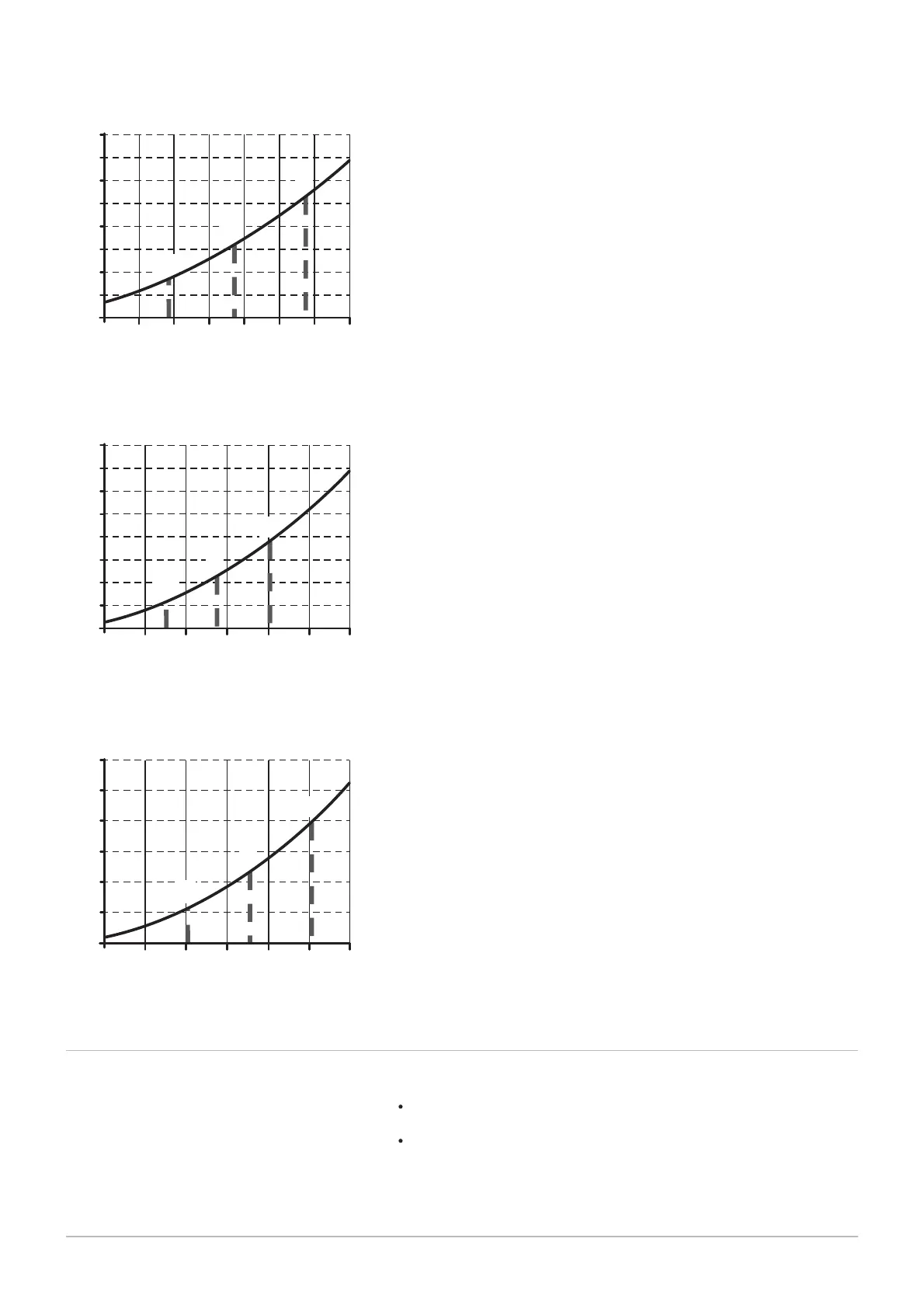

Fig.14 Pressure drops for POWER HT+
1.70
MW-3000008-01
1
3
4
5
0
2
6
7
8
2000 1000 3000 3500 4000 4500 1500 2500
2
1
4
3
5
Fig.15 Pressure drops for POWER HT+
1.90
MW-3000009-01
1
3
4
5
0
2
6
7
8
3000 1000 5000 6000 7000 2000 4000
2
1
4
3
5
Fig.16 Pressure drops for POWER HT+
1.110
MW-3000010-01
1
3
4
5
0
2
6
3000 1000 5000 6000 7000 2000 4000
2
1
4
3
5
5 Before installation
7609474 - v02 - 04092014 25
