Neutral operating conditions.
Tab.18 Specifications of the power cable and the power source
Cable cross section (mm²) 3 x 1.5
C DJ curve (circuit breaker) 10 A
6
6.6.3 Accessing the terminal blocks
1. Remove the front panels.
See
Accessing the internal boiler components, page 37.
6.6.4 Wiring the terminal blocks
Use a flat-bladed screwdriver less than 3.5 mm in width.
1. Press down the spring on the terminal block with a suitable screw
driver.
2. Insert the stripped part of the wire into the corresponding connector.
Caution
The length to be stripped must be between 10 and 12 mm.

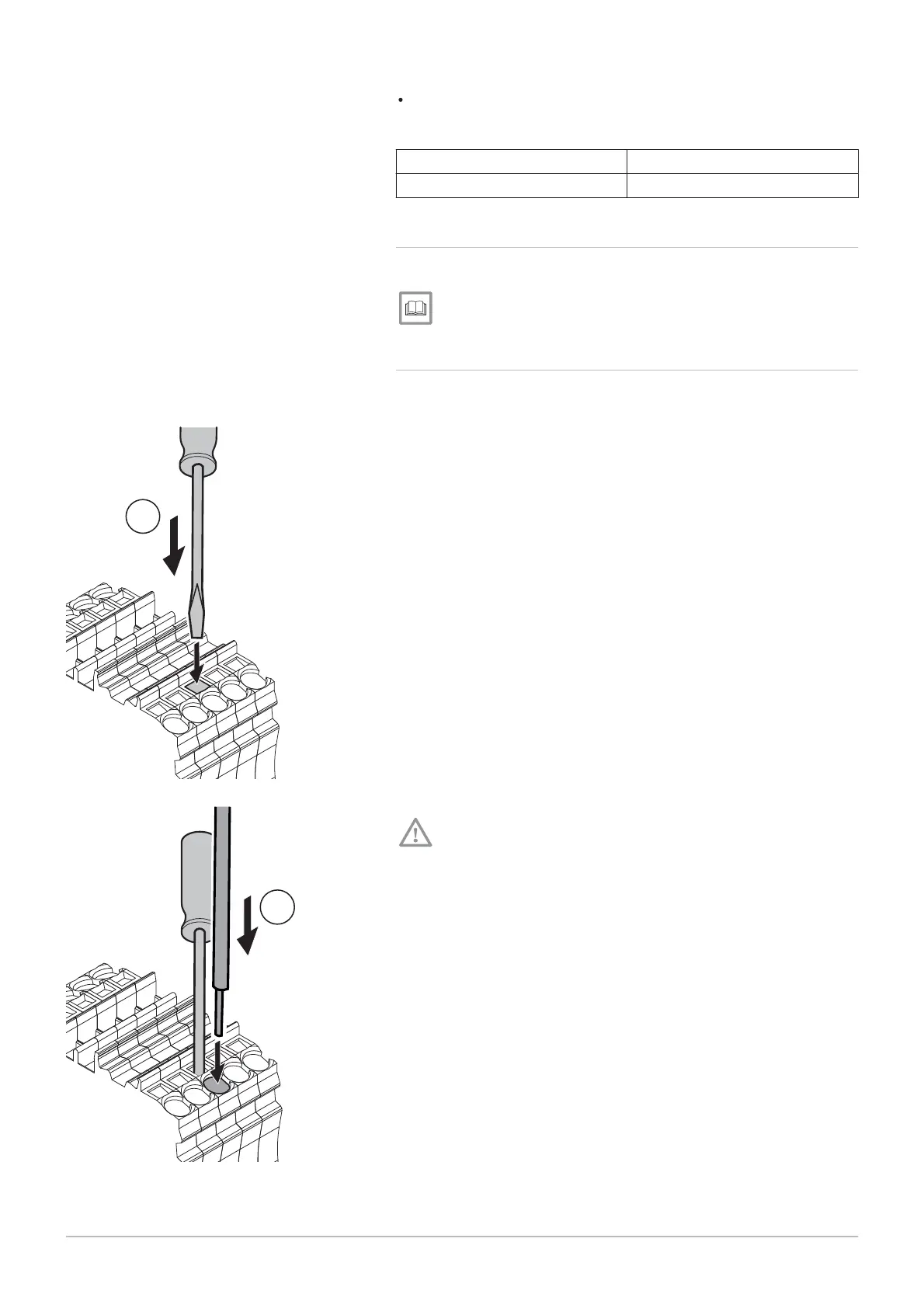

Fig.54 Pressing down the spring
MW-3000037
1
Fig.55 Connecting the wire
MW-3000038
2
6 Installation
7609474 - v02 - 04092014 49
