13 Starting a single compressor
13.1.1 Description of operation

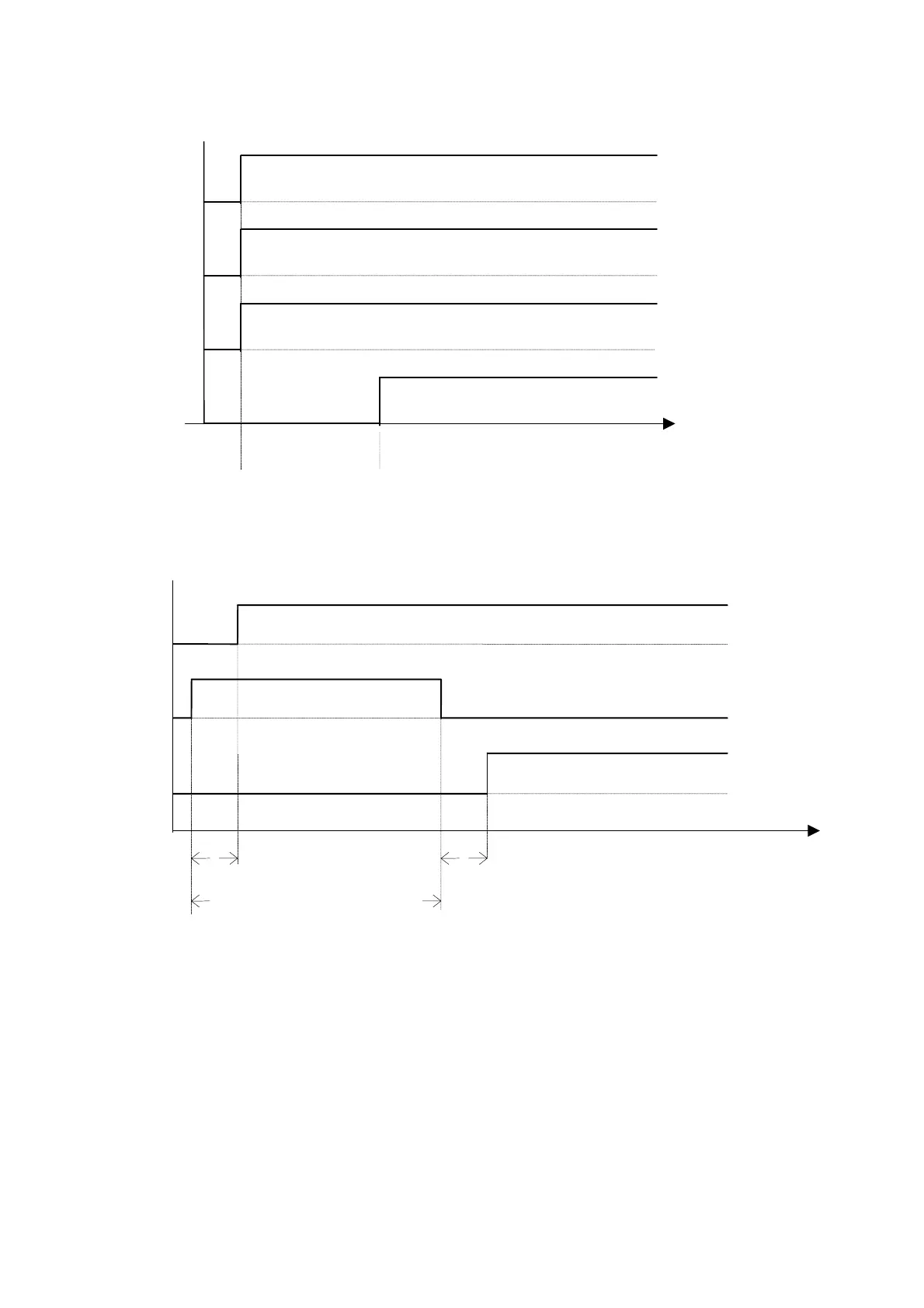

The start-up stages are described in the following graph
Thermostat
Liquid solenoid
Ventilating unit
Compressor
Delayed power-up
13.2 Starting the compressor motor
13.2.1 Delta / Star starting
Starting the motor is described in the following diagram
Line
Contactor
Star
contactor
Triangle
contactor
Star-line delay
Star duration
Delta/Star delay
13.2.2 Start-up with Part - Winding
To start the compressor with part-winding, you must reset the star and delta-star times, setting the desired part-winding time as the delta-star time.
The outputs used are those of the line and triangle relays, used respectively as part-winding relays A and B.
Example:
Star-line time 0/100 s
Star Time 0/100 s
Delta-star time 100/100 s for a part-winding time of 1 s.
13.3 Compressor start restrictions
There are two start restricting methods. Both start the compressor directly with the triangle contactor, by-passing the star contactor. There is a
single enablement for both cases:
1. Set high and low pressure thresholds exceeded
2. Set equalised pressure threshold exceeded (equalised pressure is the average pressure between high and low pressure measured by the
transducers).
