19.7.2 Proportional + integral control
Evaporator Outlet
Temperature
Free Cooling Differential
5.0 %
0 Volt
10 Volt
Free Cooling
ON/OFF Valve
Free Cooling set
point
Inverter Ramp 0
to 10V
Free Cooling Differential
2
The devices, whether they are valve or fans, will be activated in the second half of the control differential through the effect of the integrating
control. Their activation will be tied to the set integrating constant: the slower it is, the greater the value attributed to the specific parameter.
The amplitude of the valve control step will be 5.50% of the said control differential.
All proportional outputs relating to the different units of the system will be piloted in parallel
19.8 0-10 Volt Free Cooling ON/OFF valve

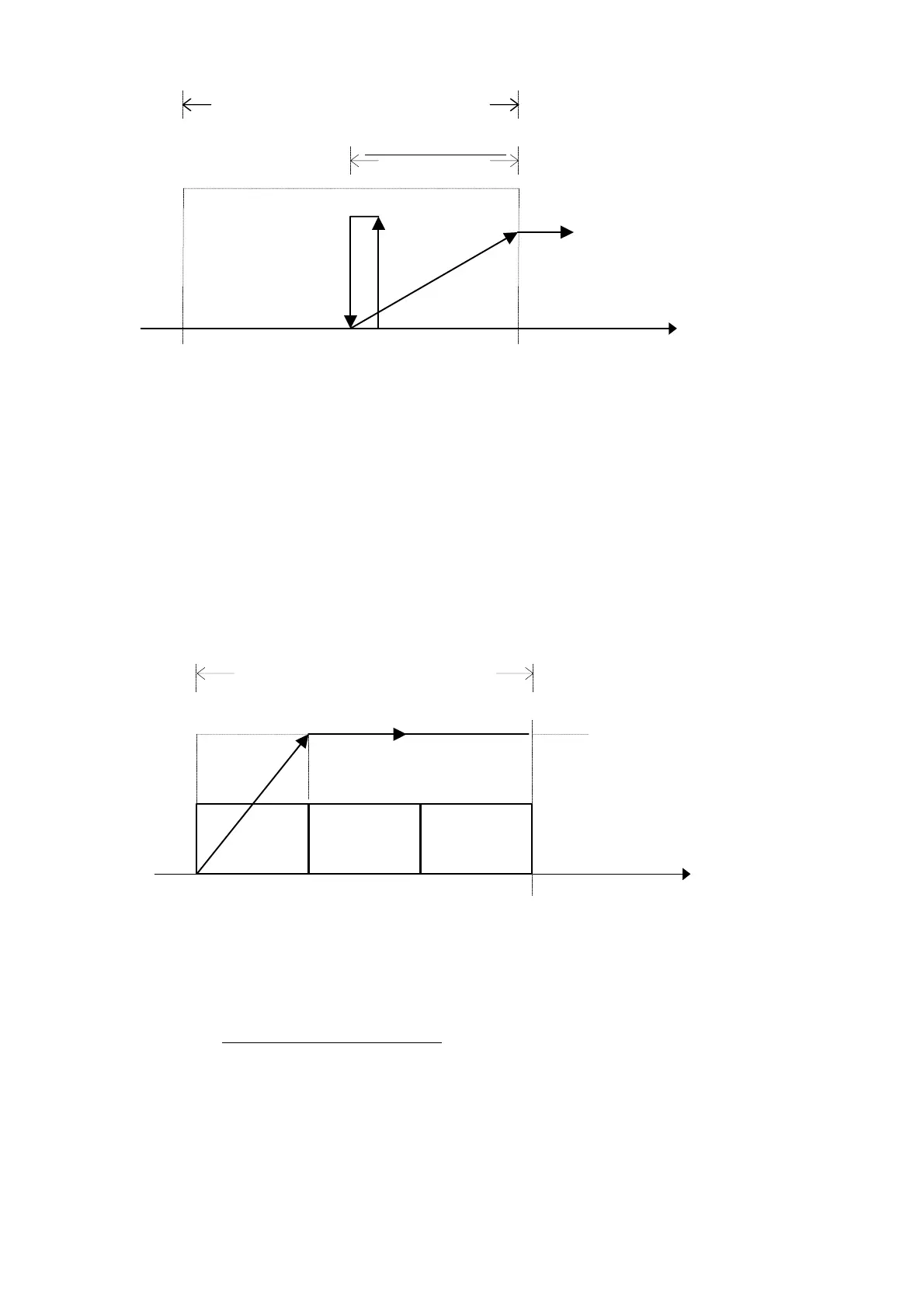

The Free Cooling valve is proportionally commanded in a different way depending on whether condensation control is in steps or by inverter.
The control diagrams of the two different situations are shown below.
19.9 0-10 Volt Free Cooling ON/OFF valve with stepped condensation
19.9.1 Proportional control
Free Cooling Set point
V1
V2
V3
0 Volt
10 Volt
Free Cooling
Valve 0 to 10 V
Free Cooling Differential
Outlet Evaporator
Tem
erature
The proportional control ramp of the Free Cooling valve will be calculated inside the first activation step of the condensation fans. In this way,
when the first fan is enabled, the valve will be completely open, and, therefore, water flow in the Free Cooling battery (exchanger) will be at
maximum level.
The activation steps of the condensation fans will be positioned proportionally inside the Free Cooling control differential.
To calculate the amplitude of each step, use the following relation:
Step amplitude = Free Cooling Differential
(Number of Master fans X number of cards)
It is assumed that all the circuits controlled by the pCO cards making up the system are equivalent and that the number of controlled devices is
the same.
