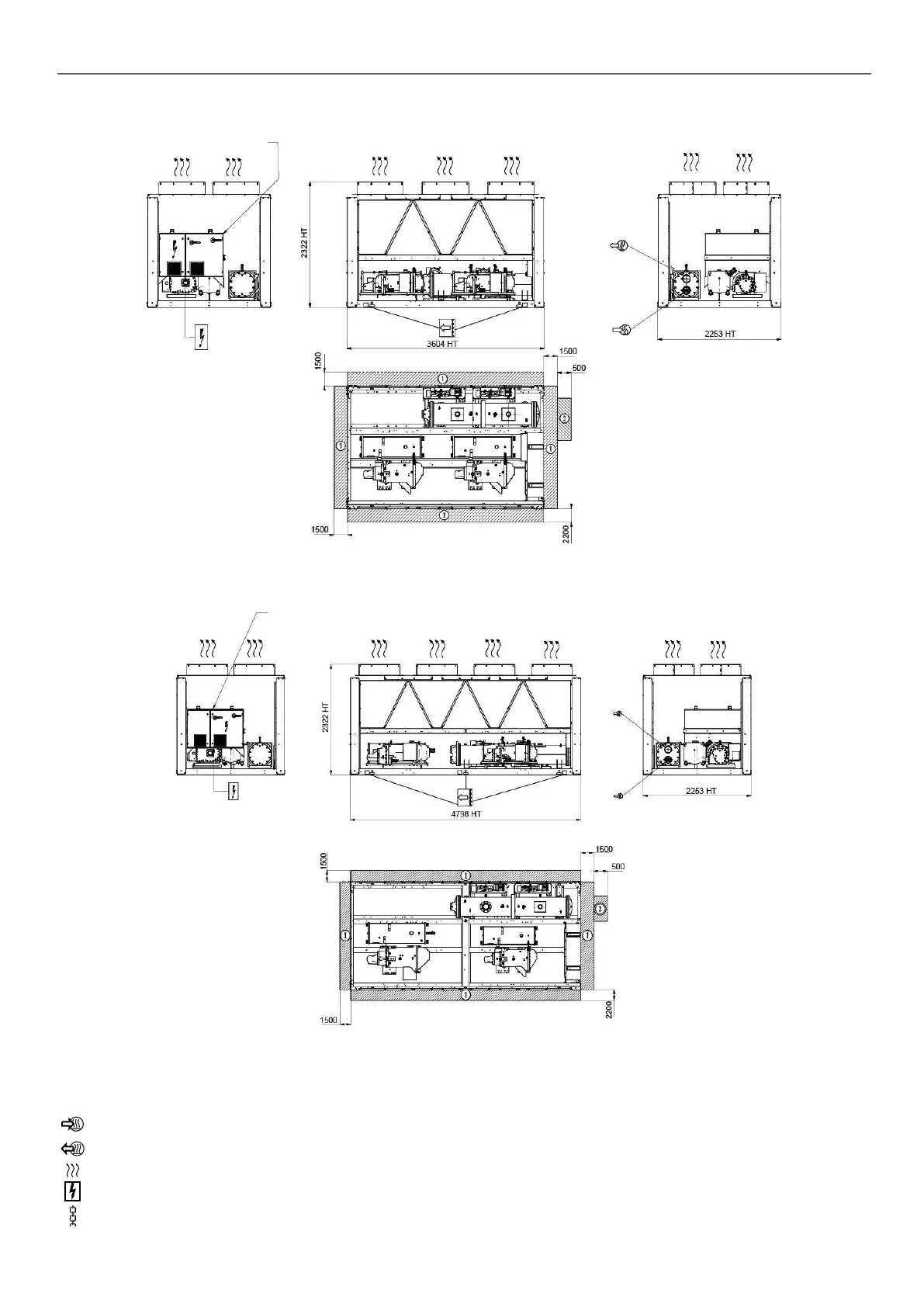

3 - DIMENSIONS, CLEARANCES
3.1 - 30XB 250 to 350, 30XBE 250 to 350, 30XBP 250 to 350, 30XB 250 to 200 with option 254/255
POWER AND CONTROL
ELECTRICAL BOX
3.2 - 30XB 400 to 500, 30XBE 400 to 500, 30XBP 400 to 450, 30XB 350 to 400 with option 254/255
POWER AND CONTROL
ELECTRICAL BOX
Legend
All dimensions are given in mm.
NOTES:
- Drawings are not contractually binding.
- Refer to unit nameplate for unit weight information
- Before designing an installation, consult the certified
dimensional drawings, provided with the unit (Appedix 4).
- If the installation includes several units or if this (these) is
(are) close to walls, please refer to chapters 3.13 - “Multiple
chiller installation” and 3.14 - “Distance to the wall” of the
installation manual to determine the space required
B
Required clearances for maintenance (see note)
C
Recommended space for evaporator tube removal
Water inlet for standard unit - for options 100A, 100C, 107 refer to the certied
drawing.
Water outlet for standard unit - for options 100A, 100C, 107 refer to the certied
drawing.
Air outlet – do not obstruct
Power supply and control connection
Slinging points
To Next Page
