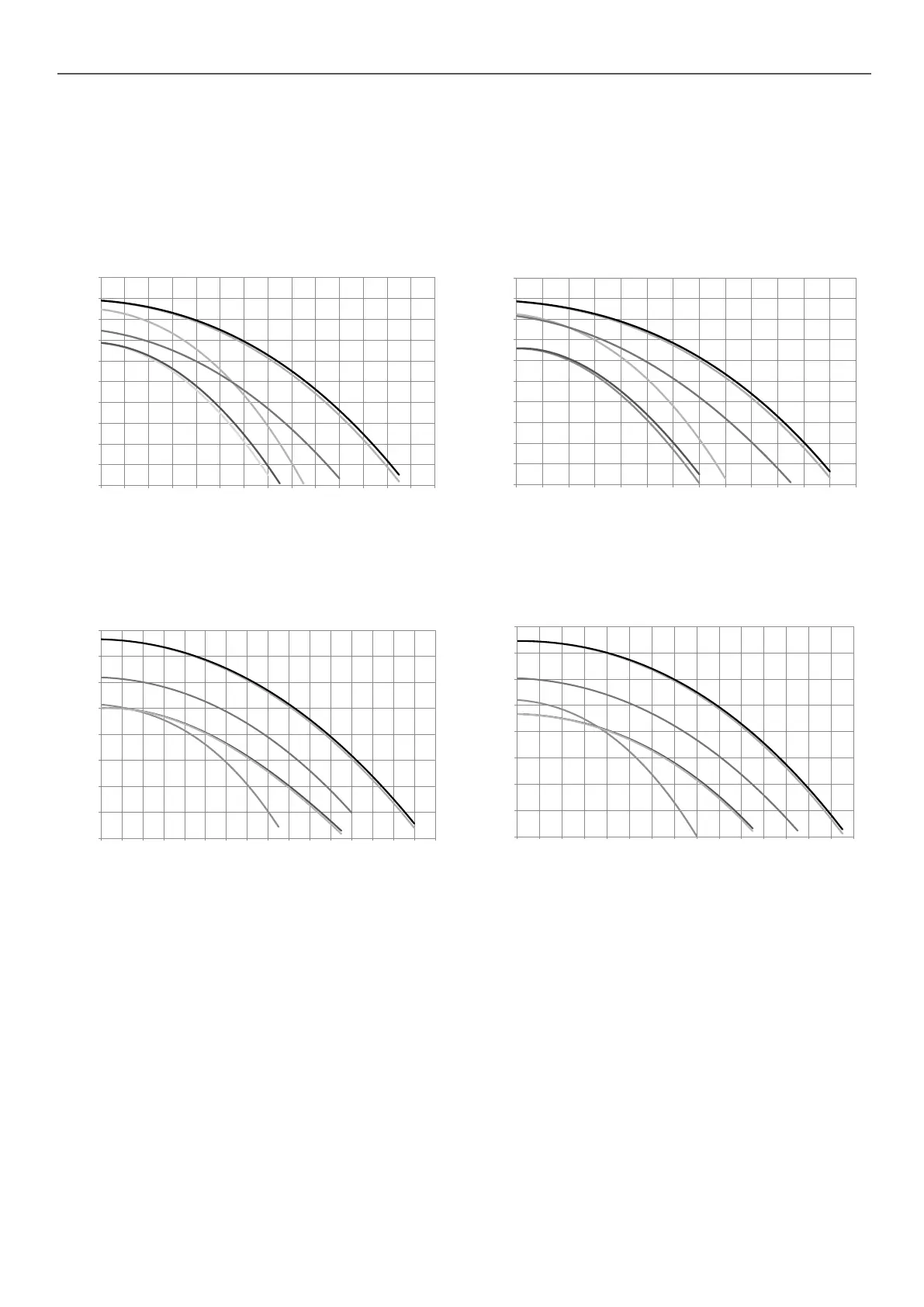

7.7 - Pump characteristics
7.7.1 - Available external static pressure (hydraulic module option)
Data applicable for:
- Fresh water 20 °C
- In case of use of the glycol, the maximum water ow is reduced.
- When the glycol is used, it’s limited to 40%.
Single pump low pressure
Available static pressure, kPa
Water ow rate, l/s
0
20
40
60
80
100
120
140
160
180
200
3 5 7 9 11 13 15 17 19 21 23 25 27 29 31
B
C ED
F
1 30XB(E/P) -250
2 30XB(E/P) - 300
3 30XB(E/P) -350
4 30XB(E/P) - 400
5 30XB(E/P) - 450
6 30XB(E/P) -500
Single pump high pressure
0
50
100
150
200
250
300
350
400
3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35
Available static pressure, kPa
Water ow rate, l/s
B
C
E
D
F
G
1 30XB(E/P) -250
2 30XB(E/P) - 300
3 30XB(E/P) -350
4 30XB(E/P) - 400
5 30XB(E/P) - 450
6 30XB(E/P) -500
Dual pump low pressure
0
20
40
60
80
100
120
140
160
180
200
3 5 7 9 11 13 15 17 19 21 23 25 27 29
Available static pressure, kPa
Water ow rate, l/s
B
C E
D
F
G
1 30XB(E/P) -250
2 30XB(E/P) - 300
3 30XB(E/P) -350
4 30XB(E/P) - 400
5 30XB(E/P) - 450
6 30XB(E/P) -500
Dual pump high pressure
0
50
100
150
200
250
300
350
400
3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33
B
C
E
D
F
Available static pressure, kPa
Water ow rate, l/s
1 30XB(E/P) -250
2 30XB(E/P) - 300
3 30XB(E/P) -350
4 30XB(E/P) - 400
5 30XB(E/P) - 450
6 30XB(E/P) -500
