7.2 - Victaulic water connections
Inlet/outlet diameters without hydraulic module
30XB 250 300 350 400 450 500 600 700 750 800
Standard & option 8
Nominal diameter in 5 5 5 5 5 5 5 6 6 6
Actual outside diameter mm 141,3 141,3 141,3 141,3 141,3 141,3 141,3 168,3 168,3 168,3
Options 5, 6 et 100A
Diamètre nominal in 4 4 4 4 4 4 5 5 5 5
Actual outside diameter mm 114,3 114,3 114,3 114,3 114,3 114,3 141,3 141,3 141,3 141,3
Options 100C**
Nominal diameter in 5 5 5 5 5 5 6 6 6 6
Actual outside diameter mm 141,3 141,3 141,3 141,3 141,3 141,3 168,3 168,3 168,3 168,3
30XB 850 900 1000 1100 1200 1300 1400 1500 1550 1700
Standard & option 8
Nominal diameter in 6 6 8 6 6 6 6 6 8/6 6
Actual outside diameter mm 168,3 168,3 219,1 168,3 168,3 168,3 168,3 168,3
219,1/168,3 168,3
Options 5, 6 et 100A
Diamètre nominal in 5 5 6 6 6 6 6 6 8/5 6/6
Actual outside diameter mm 141,3 141,3 168,3 168,3 168,3 168,3 168,3 168,3
219,1/141,3 168,3/168,3
Options 100C
Nominal diameter in 6 6 8 - - - - - - -
Actual outside diameter mm 168,3 168,3 219,1 - - - - - - -
* Option 100C is not available for sizes 1100 to 1700

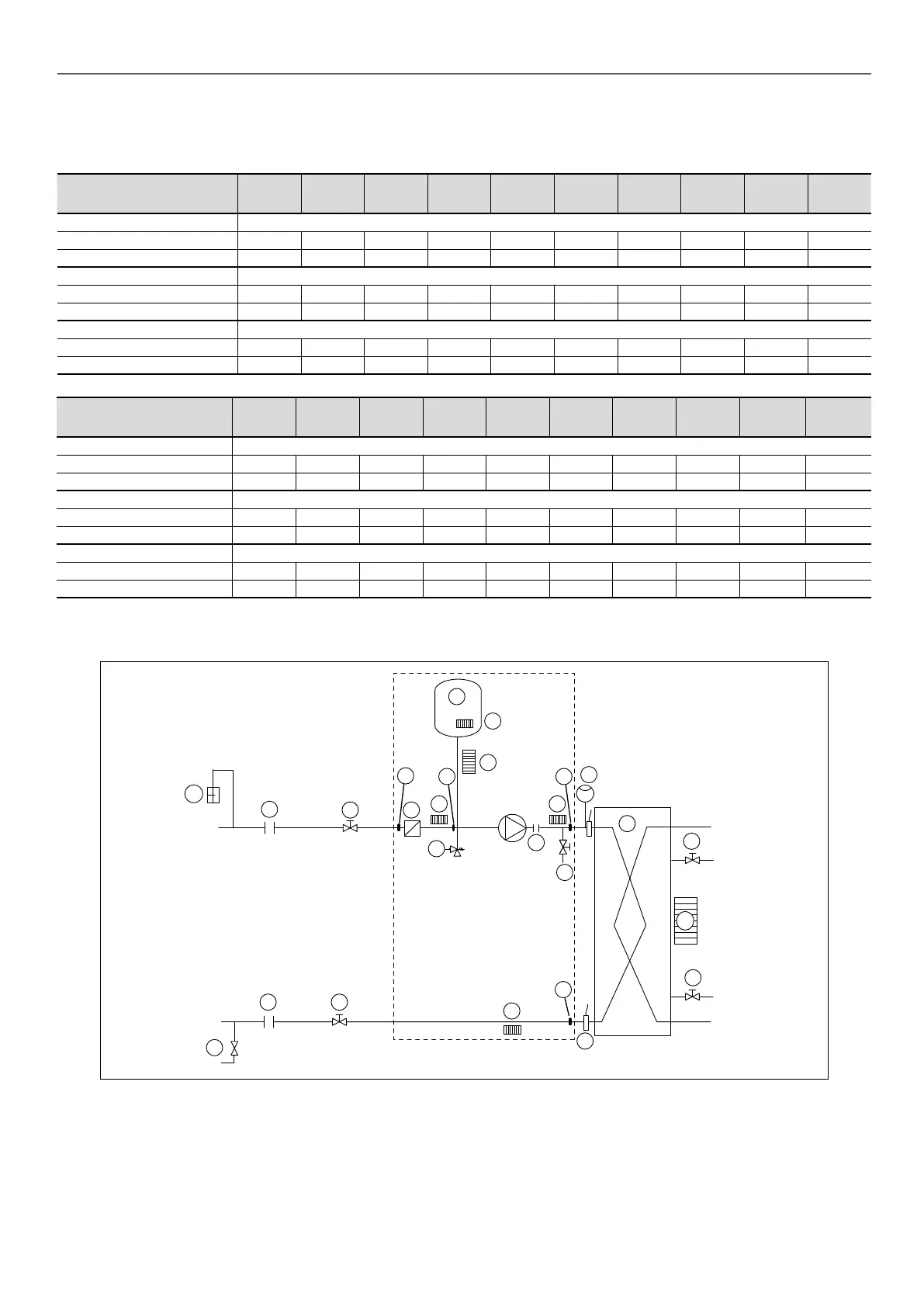

Typical water circuit diagram
1
2
17
16
18
1 2
9
9
9
11
10
12
14
A
5
15
9
9
16
7
8
17
13
B
C
D
4
3
Legend
Components of the unit and hydraulic module
A Pressure sensor (A-B = ΔP evaporator)
B Pressure sensor
C Pressure sensor (C-D = ΔP water lter)
D Pressure sensor
1 Victaulic screen lter
2 Expansion tank
3 Relief valve
4 Available pressure pump
5 Drain valve
7 Evaporator
8 Evaporator defrost heater (option)
9 Hydraulic module defrost heater (option)
10 Air vent (evaporator)
11 Water drain (evaporator)
12 Expansion compensator (exible connections)
13 Flow switch
14 Water temperature sensor
Installation components
15 Air vent
16 Flexible connection
17 Shut-o󰀨 valve
18 Charge valve
--- Hydraulic module (supplied as an option)
