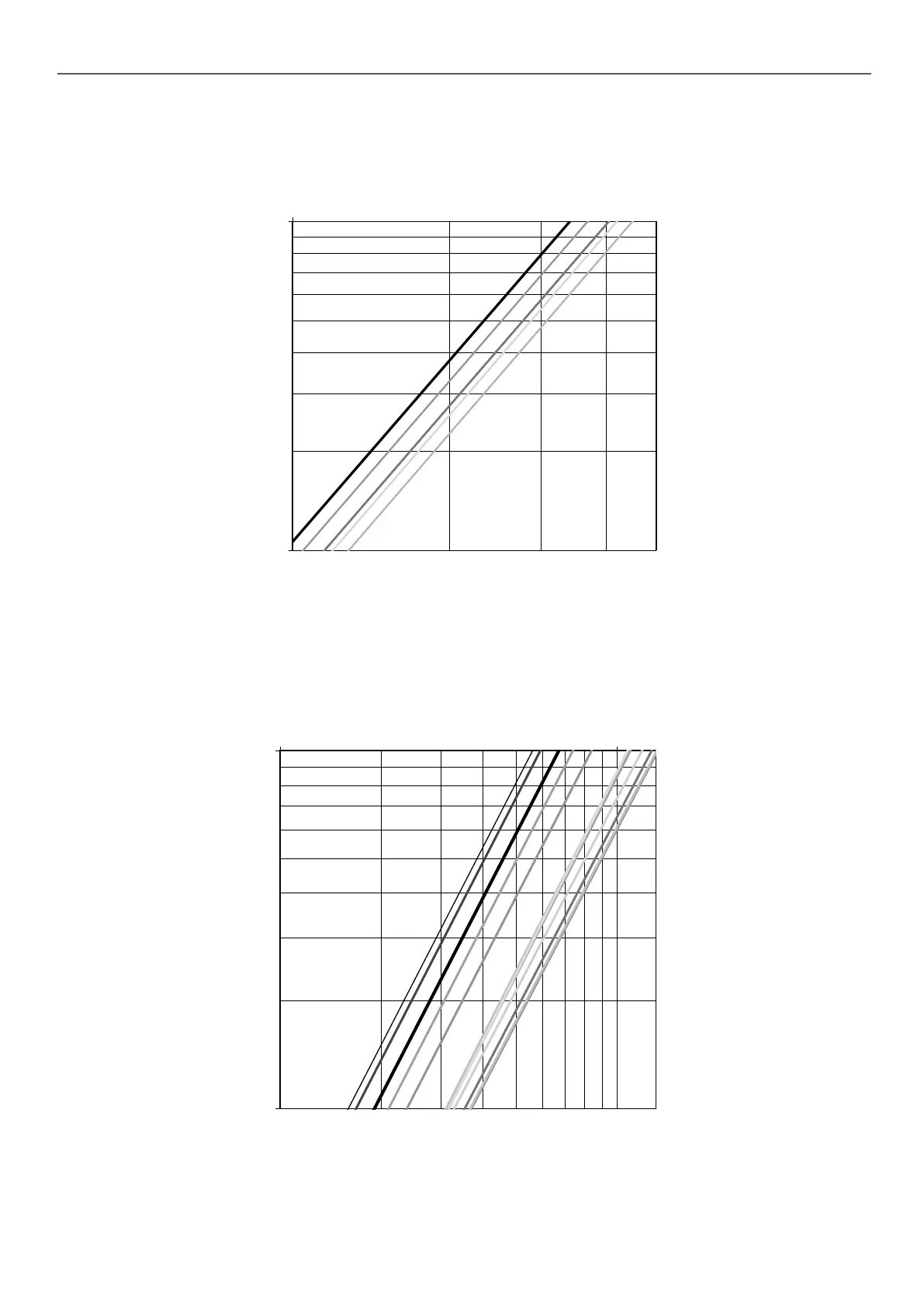

6.8 - Evaporator pressure drop curve
Sizes 250 - 600
Water ow rate, l/s
Pressure drop, kPa
10 50
100
10
B
GHFE
D
C
Legend
1 250
2 300
3 350
4 400
5 450
6 500
7 600
Sizes 700 - 1700
10
100
10
100
B
G H
I
M
N
J
L
K
F
E
D
C
Water ow rate, l/s
Pressure drop, kPa
Legend
1 700
2 750
3 800
4 850
5 900
6 1000
7 1100
8 1200
9 1300
10 1400
11 1500
12 1550
13 17007 -
