60
9 - HEAT RECLAIM CONDENSER OPTION (OPTION 50)
9.1 - Physical data, 30XB units with heat reclaim condenser option
30XB(E/P) heat reclaim mode 250 300 350 400 450 500 600 700 750 800 850 900 1000
Operating weight
(1)
kg 3340 3371 3391 4057 4199 4542 5475 5608 5976 6291 6650 7036 7507
Condenser diameter in 10 10 10 12 14 14 12+12 12+12 14+12 14+12 14+12 14+14 14+14
Refrigerant charge
Circuit A kg 37 35 35 51 52 59 58 58 65 69 72 69 91
Circuit B kg 39 37 37 37 37 36 59 62 58 65 63 76 89
Heat reclaim condenser Flooded multi-pipe condenser
Water volume l 38 38 38 55 68 68 55+55 55+55
68 + 55 68 + 55 68 + 55 68+68 68+68
Water connections Type Victaulic
Nominal diameter in 3 3 3 4 4 4 4 4 4 4 4 4 4
Actual outside diameter mm 88,9 88,9 88,9 114,3 114,3 114,3 114,3 114,3 114,3 114,3 114,3 114,3 114,3
Max. water-side operating pressure kPa 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000 1000
(1) Weights are for guidance only

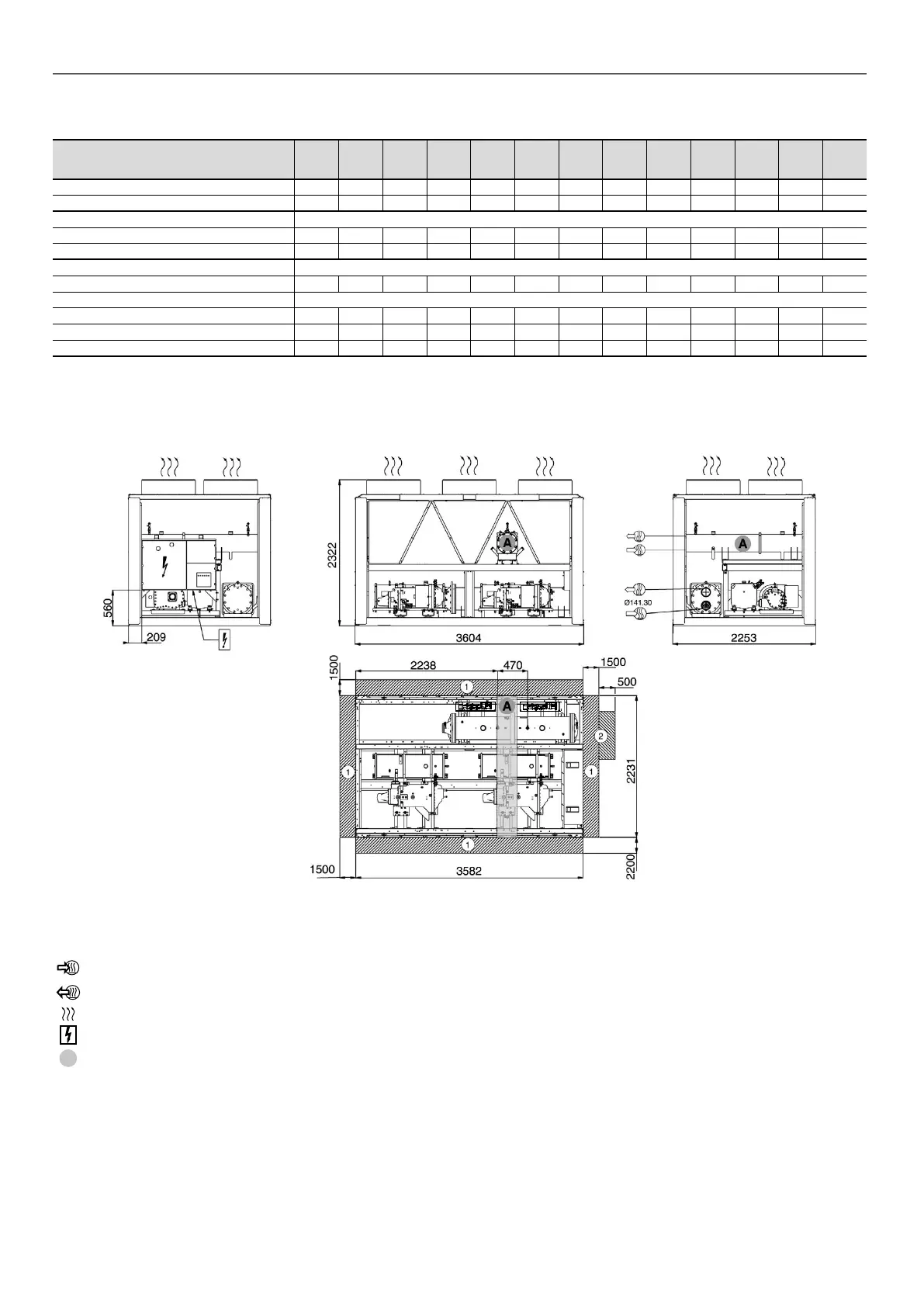

9.2 - Dimensions, clearances
9.2.1 - 30XB-250 to 350 - heat reclaim option
Legend
All dimensions are given in mm.
B
Required clearances for maintenance (see note)
C
Recommended space for evaporator tube removal
Water inlet for standard unit - for options 100A, 100C, 107 refer to the certied
drawing.
Water outlet for standard unit - for options 100A, 100C, 107 refer to the certied
drawing.
Air outlet – do not obstruct
Power supply and control connection
A
Heat reclaim condenser
ATTENTION: The condenser connection sleeves are not
installed, but supplied with the unit. The sealing joints are in
the control box. The temperature sensors and the condenser
ow switch are wired and xed in the machine. They must
be installed as described in the chapter “Condenser water
connections”.
NOTES:
- Drawings are not contractually binding.
- Before designing an installation, consult the certied
dimensional drawings, available on request.
- If the installation includes several units or if this (these)
is (are) close to walls, please refer to chapters 3.13 -
“Multiple chiller installation” and 3.14 - “Distance to the
wall” of the installation manual to determine the space
required
