– 223 –

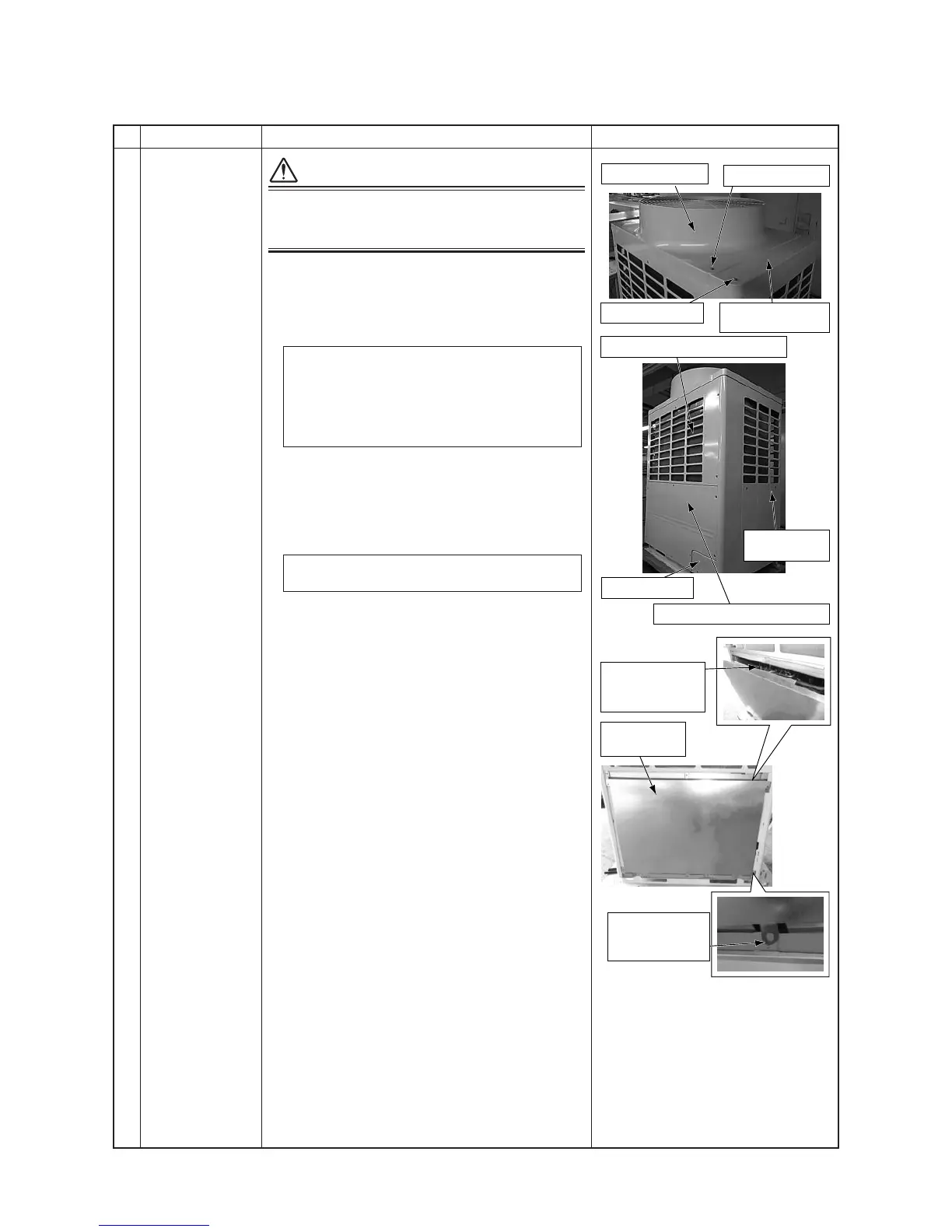

13. OUTDOOR UNIT PARTS REPLACEMENT METHODS
Cabinet
No. Part to be replaced Work procedure Remarks
1
For 096 type and 120 type, remove the
screws from the discharge cabinet.
(M5 × 0.6” (15 mm), 4 pcs.)
For 096 type and 120 type, remove the
screws from the left and right sides of the
discharge cabinet.
WARNING
Wear a pair of gloves.
Otherwise, you will risk an injury involving
a replacement part or some other object.
1. Detachment
1) Stop the air conditioner operation, and turn off the
circuit breaker.
2) Remove the screws for the discharge cabnet.
(M5 × 0.4” (10 mm), 4 pcs.)
In the case of a 096 type and 120 type:
M5 × 0.4” (10 mm), 5 pcs. each
3) Remove the screws for the lower cabinet.
Front and rear: (M5 × 0.4” (10 mm), 7 pcs. for front
and 6 pcs. for rear)
4) Remove the screws for the service panel.
(M5 × 0.4” (10 mm), 2 pcs.)
5) Remove the screws for the suction cabinet.
Front and rear: (M5 × 0.4” (10 mm), 4 pcs. each)
6) Remove the protective plate (back).
Remove the upper hook from the middel partition
plate, and then remove the lower hook from the
center hole of the bottom plate.
7) Remove the screws for the discharge cabinet side
cabinet.
Left and right: (M5 × 0.4” (10 mm), 6 pcs. each)
Discharge cabinet
Screws (4 corners)
Screws (4 corners)
5) Suction cabinet (front and rear)
4) Service panel
3) Lower cabinet (front and rear)
7) Side cabinet
(left and right)
Discharge cabinet
side cover
6) Protective
plate (back)
6) Protective plate
(back) Remove
the upper hook
6)
Remove the lower
hook of the protective
plate (back)
To Next Page
