14. P.C. BOARD EXCHANGE PROCEDURES
Replacement of outdoor P.C. board
14-1.List of service P.C. boards
Parts code Description Applicable model P.C. board type code Product code
4316V519 Interface P.C. board
MMY-MAP0724FT9UL
MMY-MAP0964FT9UL
MMY-MAP1204FT9UL
MCC-1606 ASM-PCB (I/F)
4316V520 Inverter P.C. board for fan MCC-1610 ASM-PCB (FAN IPDU)
4316V453 Noise filter P.C. board MCC-1608-A,B ASM-PCB (N/F)
4316V451
Inverter P.C. board for
compressor
MCC-1595 ASM-PCB (A3 IPDU)
Parts code Description Applicable model P.C. board type code Product code
4316V519 Interface P.C. board
MMY-MAP0724FT6UL
MMY-MAP0964FT6UL
MMY-MAP1204FT6UL
MCC-1606 ASM-PCB (I/F)
4316V520 Inverter P.C. board for fan MCC-1610 ASM-PCB (FAN IPDU)
4316V497 Noise filter P.C. board MCC-1625-A,B,C ASM-PCB (N/F)
4316V489
Inverter P.C. board for
compressor
MCC-1596 ASM-PCB (A3 IPDU)

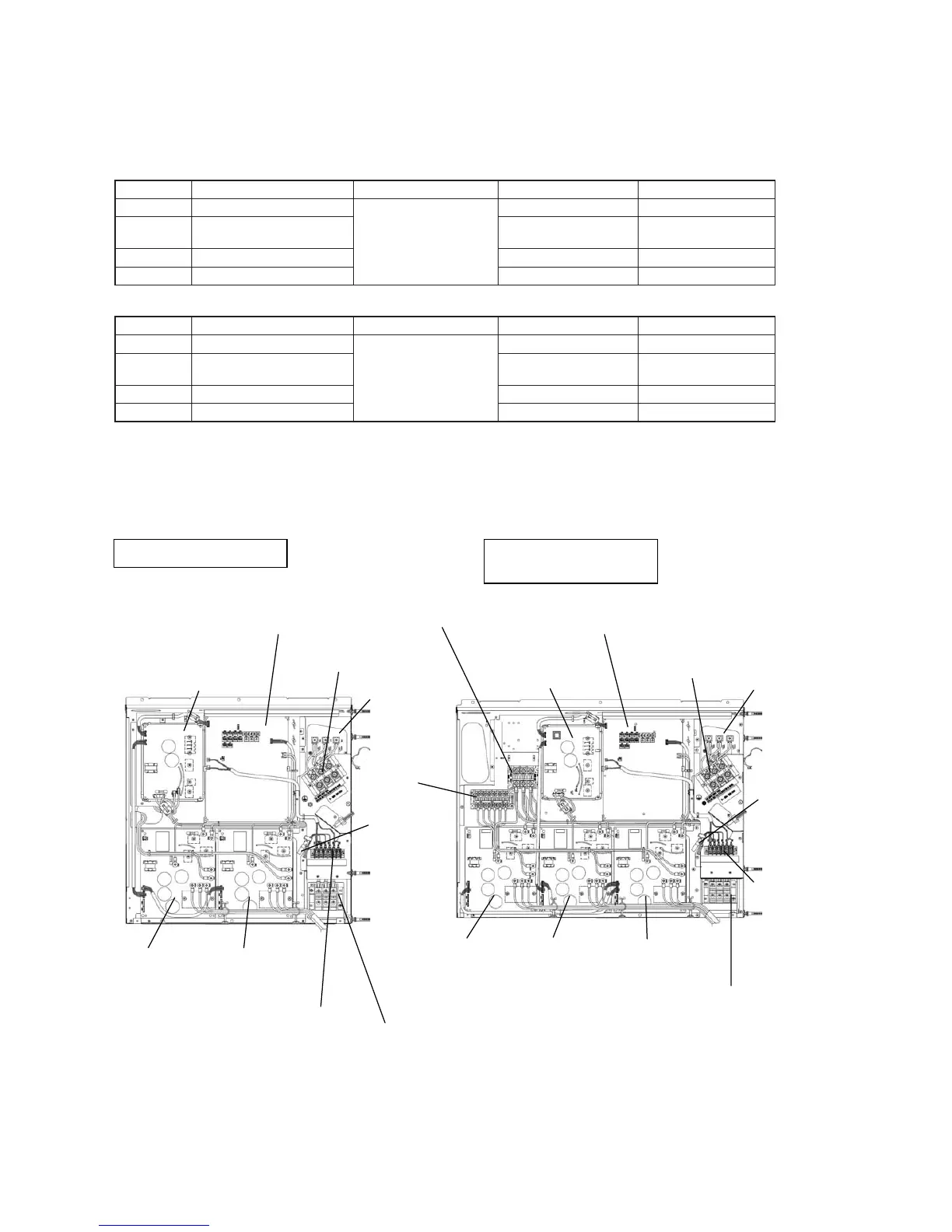

14-2.Configuration of inverter assembly
Inverter P.C. board for fan
[FAN IPDU]
(MCC-1610)
Interface P.C. board
[Outdoor control P.C. board]
(MCC-1606)
Power supply
terminal block
Communication
terminal block
Relay terminal block
for
p
ower su
pp
l
y
Inverter P.C. board
for Compressor 2
[A3 IPDU]
(MCC-1595)
Inverter P.C. board
for Compressor 1
[A3 IPDU]
(MCC-1595)
Inverter P.C. board for fan
[FAN IPDU]
(MCC-1610)
Interface P.C. board
[Outdoor control P.C. board]
(MCC-1606)
Power supply
terminal block
Inverter P.C. board
for Compressor 2
[A3 IPDU]
(MCC-1595)
Inverter P.C. board
for Compressor 1
[A3 IPDU]
(MCC-1595)
Inverter P.C. board
for Compressor 3
[A3 IPDU]
(MCC-1595)
Communication
terminal block
Relay terminal block
for
p
ower su
pp
l
y
Noise Filter
P.C. board
(MCC-1608)
Noise Filter
P.C. board
(MCC-1608)
MMY-MAP0724FT9UL
MMY-MAP0964FT9UL
MMY-MAP1204FT9UL
Relay terminal
block for reactor
Relay terminal block
for power supply
Relay
connector for
central control
Relay
connector for
central control
