chapter 7000
page 15
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07

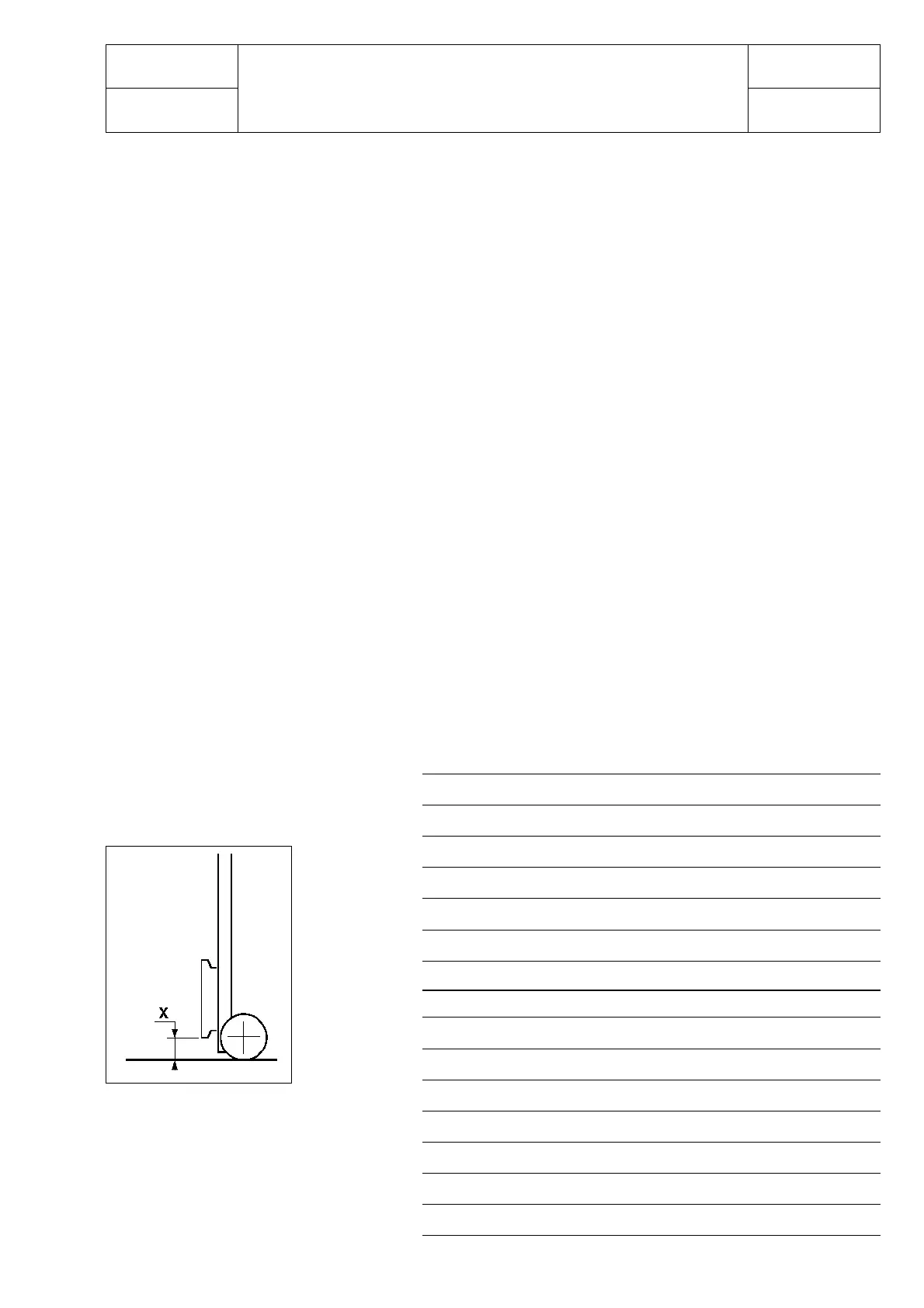

X = 76 mm (A)
X = 152 mm (B) OPTIONAL
POSITIONING THE FORK MOUNTING CARRIAGE
Every 500 hours
After testing the chains as described above, with the truck on an even surface and the mast in a vertical
position, check the position of the fork carriage plate, as follows:
- remove the forks, lower the fork carriage completely and measure the height (X), comparing it with
the value shown in the table, corresponding to the capacity in kg of the truck.
(e.g. the correct value of (X) for a truck with a capacity of 2000 kg (class II B), must be
152 ±5 mm).
MAST CHAINS INSPECTION
CHECKING THE CHAINS:
Every 1000 hours
- Check the condition of the chains which in any case must not be faulty, worn out or
damaged. To check the links for wear, use the appropriate gauge
- Remove the chains, clean them thoroughly, refit them inverting the original working position and
lubricate them.
Every 10000 hours
- Replace the chains and the fixing tie rods
Replacing the chains use original spare parts which will guarantee that the safety
requirements stated by the regulations in force are complied with.
TABLE ISO 2328 - 1993
Rate Lifting load (kg) "X" (± 5)
I A 0 ÷ 999 76 mm
II A 1000 ÷ 2500 76 mm
III A 2500 ÷ 4999 76 mm
IV A 5000 ÷ 8000 127 mm
V A 8001 ÷ 10999 127 mm
TABLE ISO 2328 - 1993
Rate Lifting load (kg) "X" (± 5)
I B 0 ÷ 999 114 mm
II B 1000 ÷ 2500 152 mm
III B 2500 ÷ 4999 203 mm
IV B 5000 ÷ 8000 254 mm
V B 8001 ÷ 10999 257 mm
