CESAB C3E150 User Manual

chapter 5000
page 7
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
180 mm
↑
↓
Height adjustment screw

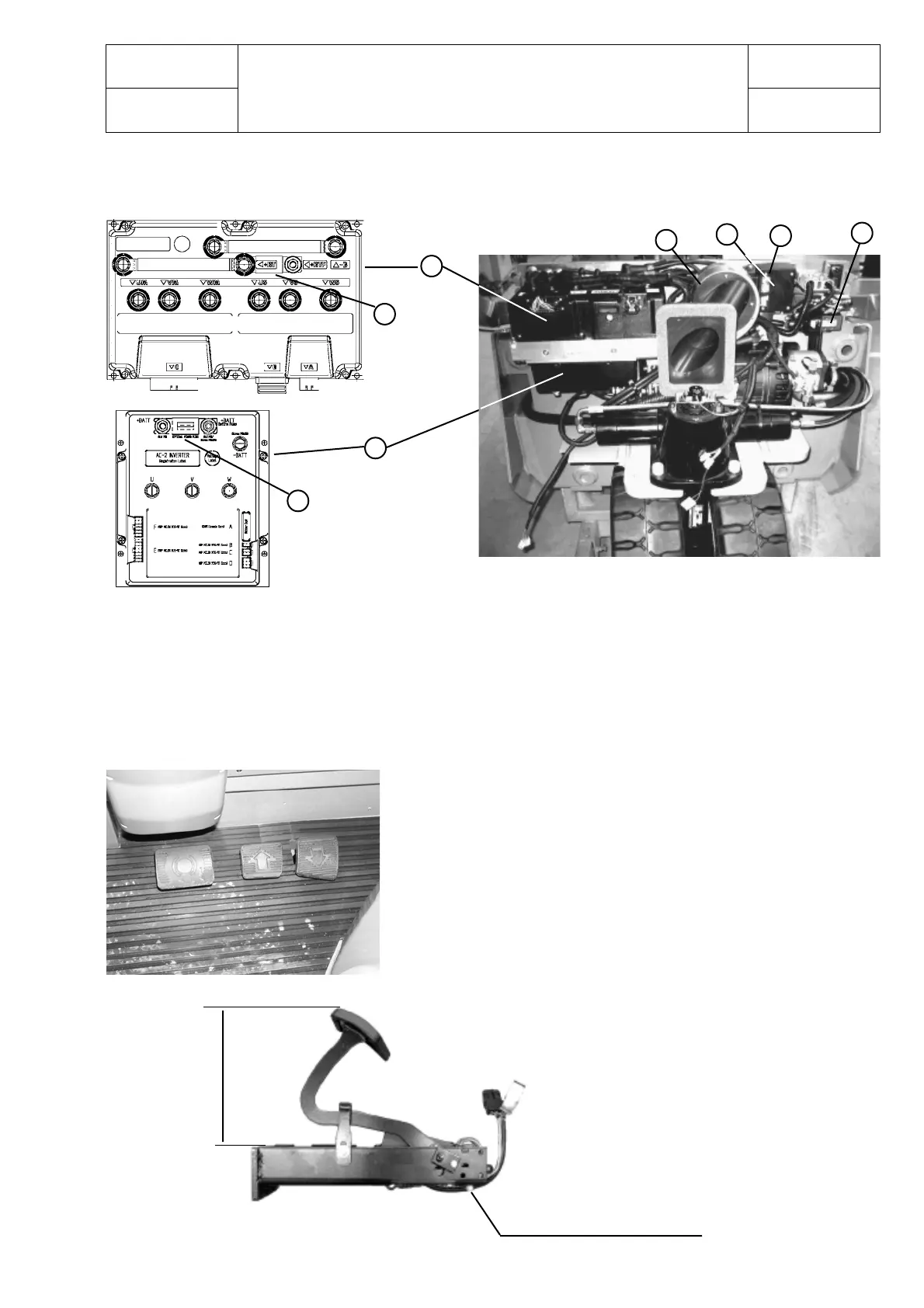

MAIN ELECTRICAL COMPONENTS DESCRIPTION
ACCELERATOR PEDAL
Set the potentiometer
Position the tester set in OHM between the green and the red wire.
Set the potentiometer
from 5.13 to 6.27 KOHM (pedal released)
from 1.087 to 1.32 KOHM (pedal pressed)
A) Traction module
B) Lifting module
C) Contactors
D) Panel cooling fan
E) Power fuses
F) Fuses (covered by the light board)
G) Light card
B
E
E
C
A
D
G
F
