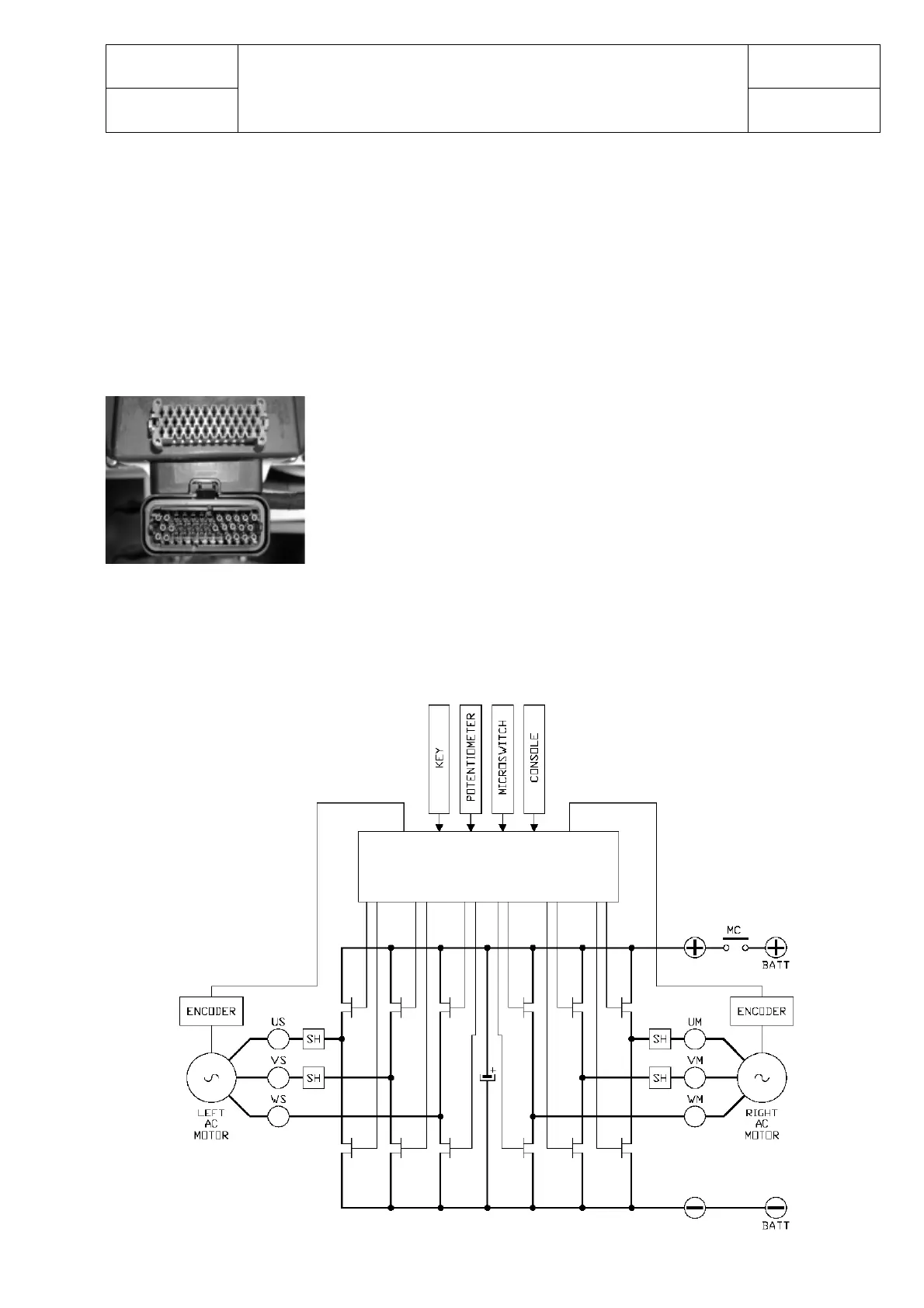

TRACTION ELECTRIC BLOCK DIAGRAM
Disconnect the connector from the logic unit and and remove the red part
that is fixed inside by means of two tongues on the external side.
Type of PINS used:
AMP770854 - 3.
ENABLING OF C10 SPEED REDUCTION
By connecting a wire between the pin C10 and the positive (+Vb) from the seat switch, it is possible to disable
the reduction of speed (CUTBACK SPEED 3) normally on.
By connecting a microswitch on the wire between the pin C10 and the seat switch, it is possible to set ON or
OFF the CUTBACK SPEED 3 (parameter located in the menu PARAMETER CHANGE).
CONTROL LOGIC
