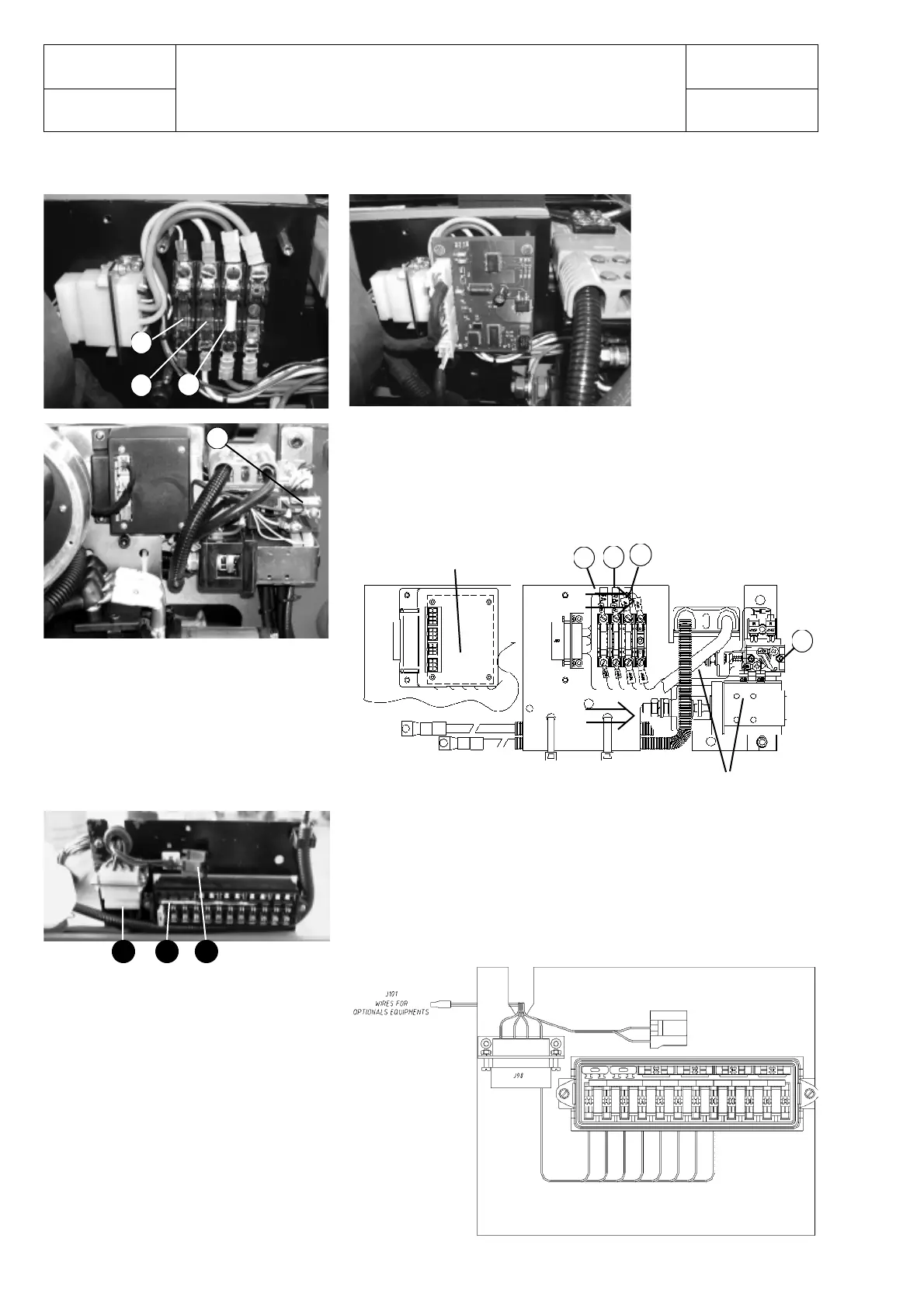

FUSE BOX
The fuse box is located next to the battery connector, covered by the light card.
FUSE DESCRIPTION
1. F1 key fuse 10 Amp
2. F2 horn fuse 5 Amp
3. F3 DC/DC converter fuse 20 Amp
4. Diode
LIGHT CARD
CONTACTORS
24 VOLT FUSES
This box is located under the dashboard and it is used for all the
24 V fuses only.
5 Connector for the wiring.
6 Connection bars transfer the positive pole to all fuses.
7 Direction lights intermittence connector.
This box is present on the truck only if optional equipments are
foreseen
