chapter 5000
page 28
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
The light card is located in the compartment on the left
side of the truck. The 24 V supplied by the converter
arrive at the card. It is used as a bridge so that the
voltage is supplied to all the other cards.
FUNCTIONS
- Controlling of the back lights.
The light card permits the automatic control of the back
lights according to the operation of the traction motors.
The card is controlled by the traction logic unit that
receives the signals of the external motor (in a curve).
The light card works thanks to the signals put out by
the encoder, therefore the back lights are not operative
when the machine stands still.

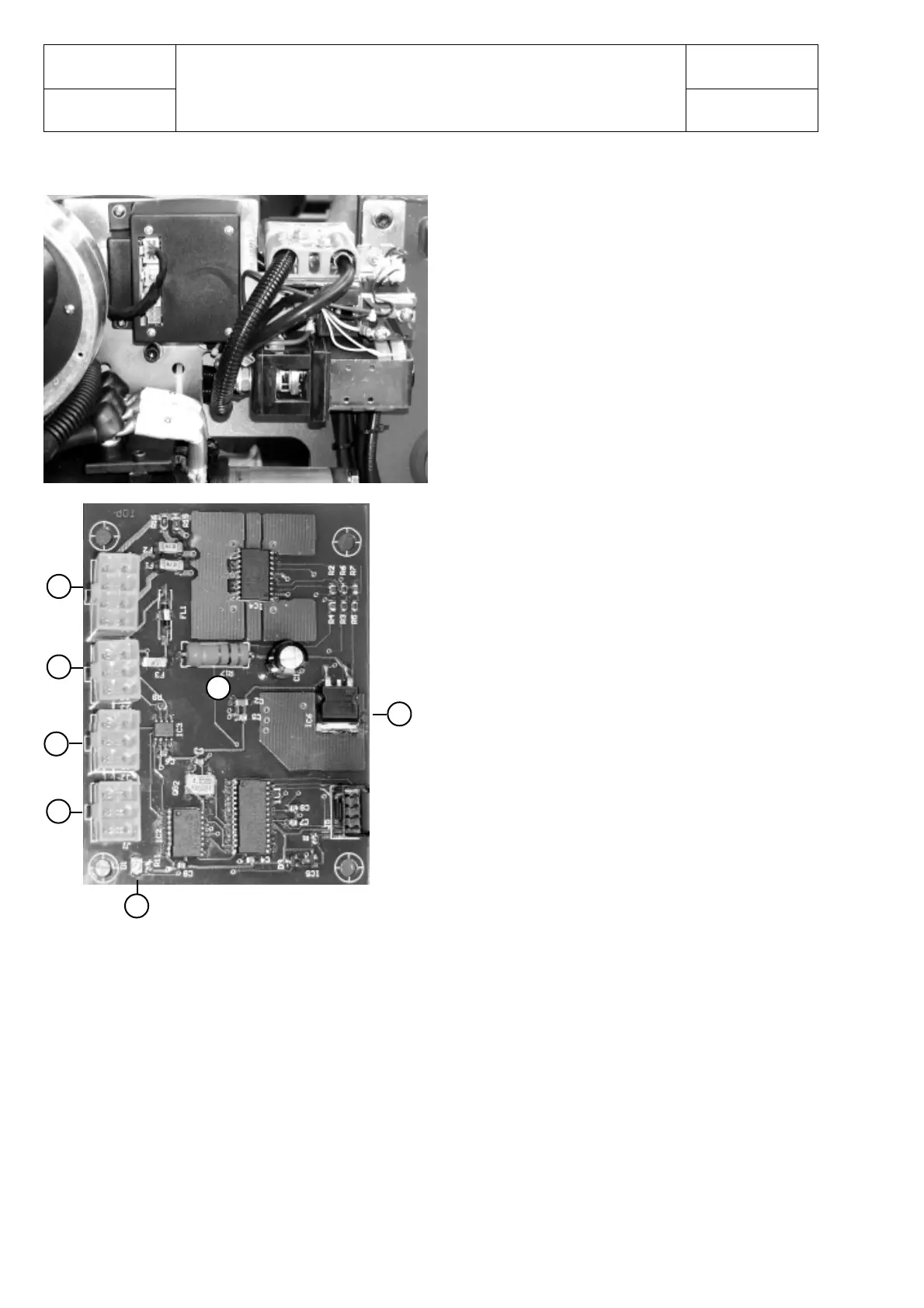

LIGHT CARD
1
2
3
7
4
6
5
