chapter 3000
page 8
1,2 - 2,0 t A.C.
SERVICE MANUAL
Electric
036-0410-07
E
F
D
H

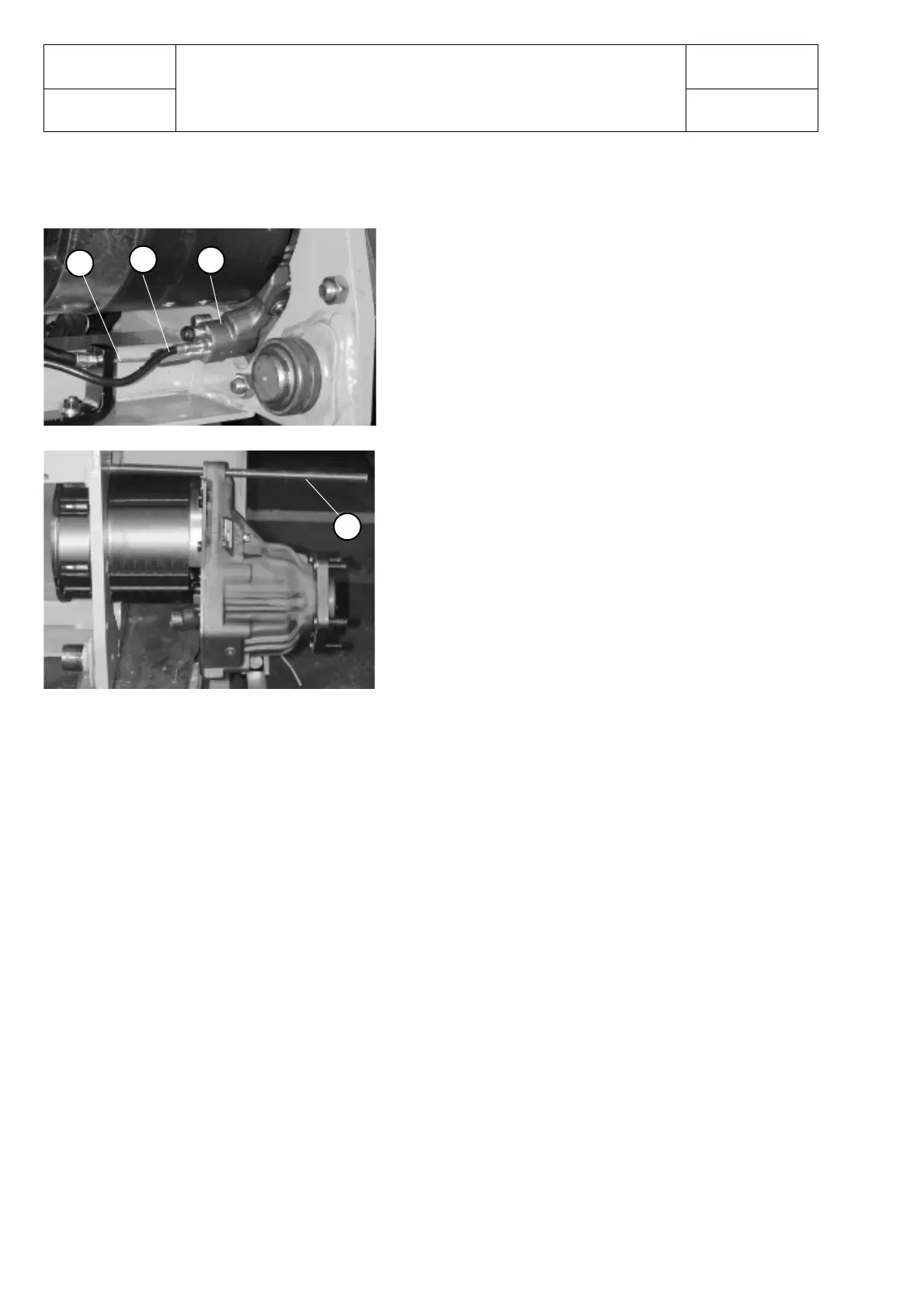

1) Lift the truck
2) Remove cable E and hose F
3) Remove wheel A (see previous page)
4) Remove the screws that fixed the gear box to the
frame
5) Fix bar G (of 40 cm) into the upmost hole in the
frame using it as a guide to keep the reduction gear
(5-10 cm) off the frame, therefore having enough
space to change the brake cylinder.
6) Repeat the procedure backwards to fit the
components again.
