5 . MAINTENANCE AND ADJUSTMENTS
5.12
Challenger MT500B EU
5.7 - ENGINE
5.7.1 - 6-cylinder engine

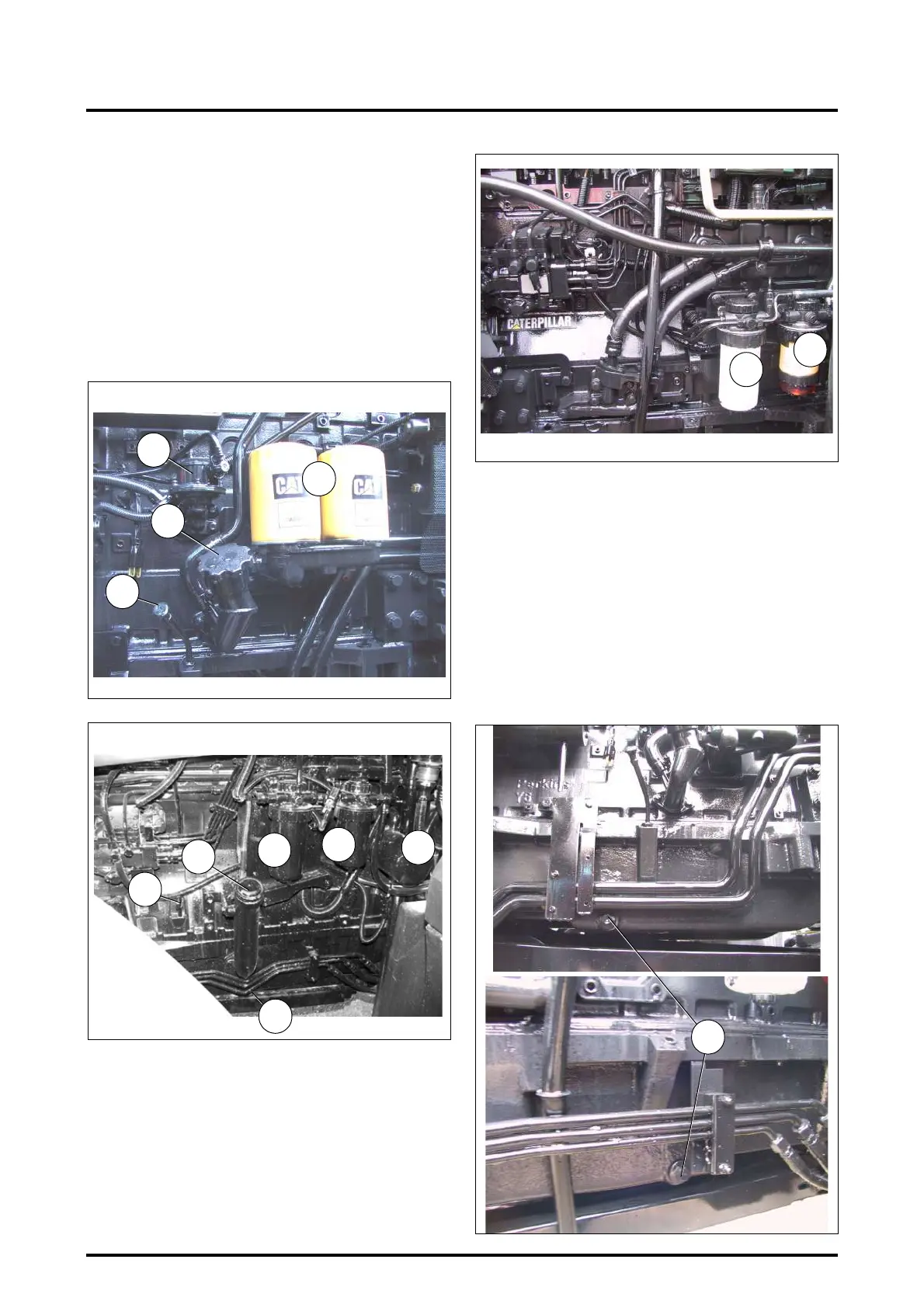

Fig. 9 to Fig. 12.
1. Oil filters
2. Oil filler cap
3. Engine oil dipstick
4. Fuel lift pump (depending on model)
5. Fuel pre-filter
6. Fuel filter
7. Engine oil drain plug (2 sides)
8. Windscreen washer tank
5.7.2 - Oil level
With tractor on a level surface: check the engine oil level
every ten hours or daily (this interval is flexible).
To avoid a heavy oil consumption:
- do not exceed the MAX mark on the dipstick.
- do not refill until the level reaches the MIN mark on the
dipstick.
Top up if necessary.
5.7.3 - Drain the engine oil every 400 hours
Drain the oil when the engine is warm, remove the plug 1
(Fig. 9) from the engine sump with the tractor standing on
level ground. Refit and tighten the drain plug to a torque of
3.5 daNm. Refill with an approved oil to the MAX mark on
the dipstick.
NOTE: Allow time for the oil to settle in the sump before
rechecking the level.
An interval of 400 hours is the maximum. In difficult work-
ing conditions the oil may need changing more frequently
(every 200 hours for example).
Fig. 9
MT-0081103
1
3
2
4
MT525B/535B/545B
Fig. 10
Z2-124
1
3
2
MT555B/565B/575B
7
6
5
Fig. 11
MT-0041103
6
5
Fig. 12
MT-0051103
MT-0071103
7
