5 . MAINTENANCE AND ADJUSTMENTS
5.29
Challenger MT500B EU
5
5.19.2 - Rear wheel track (mm)
Wheels with steel flange
The various track settings are obtained by changing the po-
sition of the rim in relation to the disc or by reversing the
wheels.
NOTE: Ensure a sufficient gap remains between the
tyres and the inside of the fenders.
If the wheels are reversed, transfer them to opposite
sides of the tractor.
On refitting, tighten the nuts progressively according to the
tightening torque table (chapter 6).

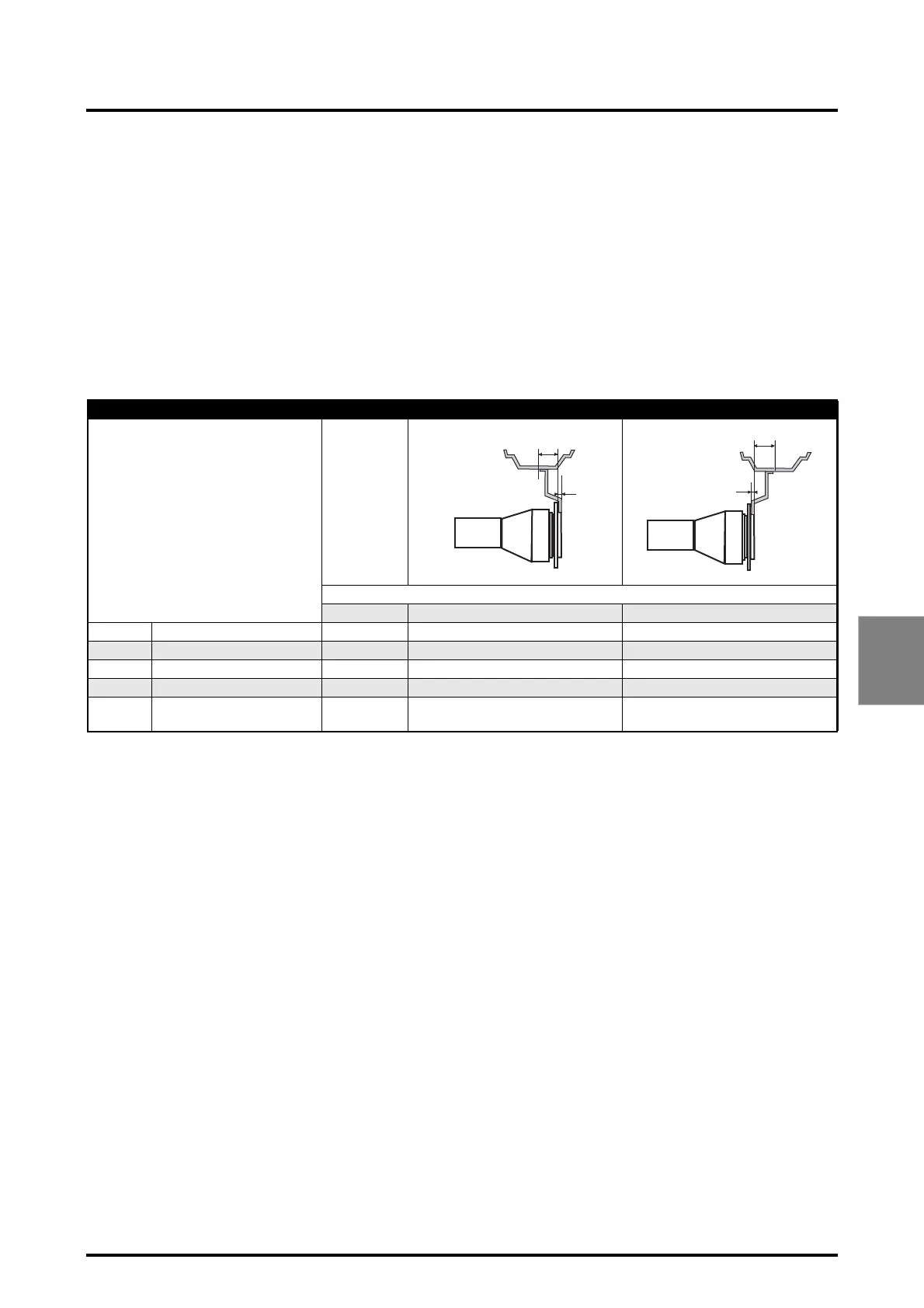

TABLE OF REAR WHEEL VALUES (in mm)
Transmission type
D
= wheel offset (75 mm) -
E
= wheel disc thickness (15 mm).
Inter-flange disc facing inwards disc facing outwards
MT525B
HA110 (flange) 1716 1566 1896
MT535B
HA130 (flange) 1716 1566 1896
MT545B
HA130 (short and plain) 2469 1718 2516
MT555B
HA130 (long and plain) 2999 1718 3046
MT565B/
575B
HA160 (flange) 1840 1690 2020
E
D
E
D
