3 . INSTRUMENTS AND CONTROLS
3.9
Challenger MT500B EU
3

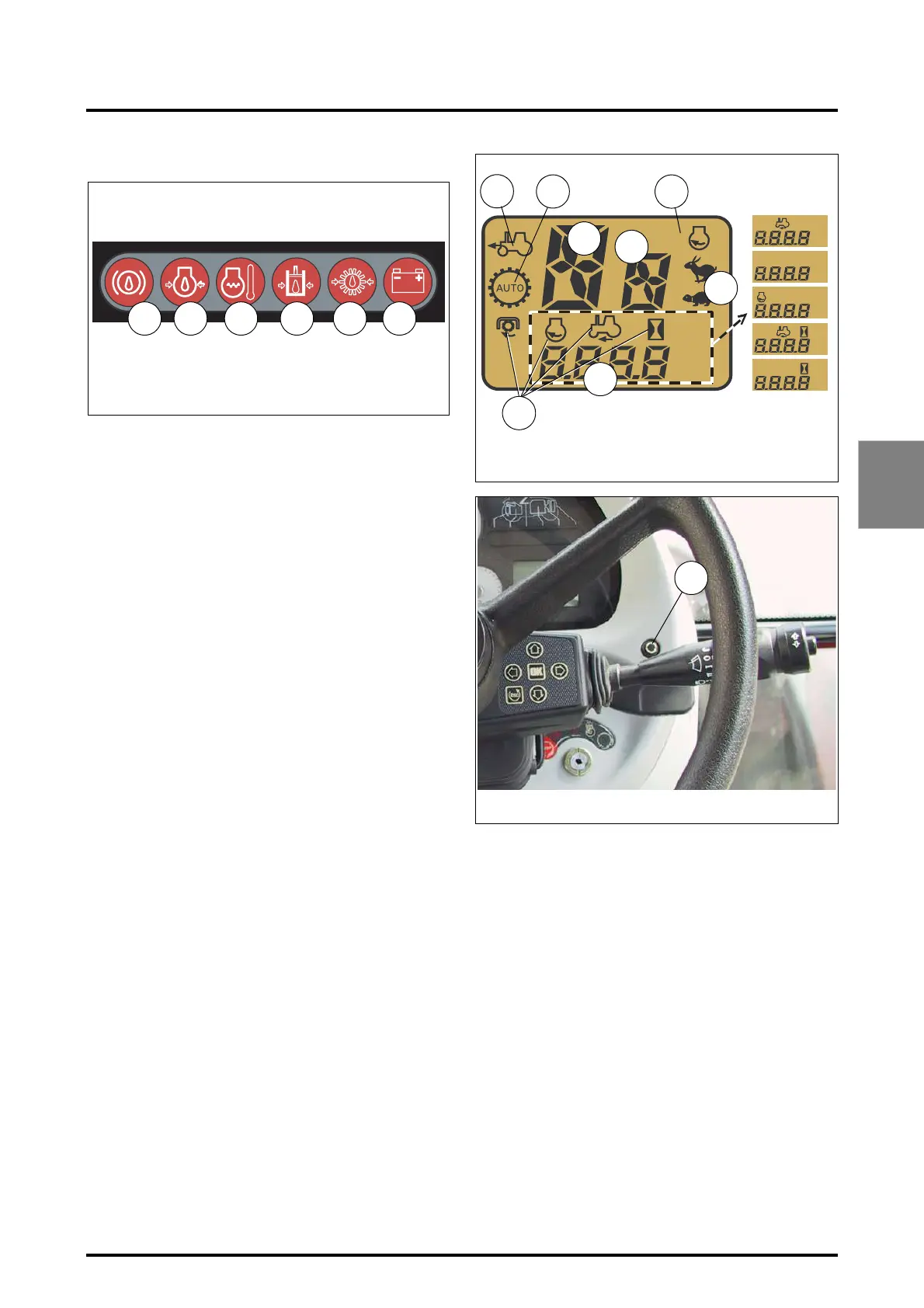

Failure control indicator lights
13. Trailer air brake pressure indicator light (if fitted) (red).
14. Engine oil pressure indicator light (red).
This indicator light is switched on when the ignition
key is in "auxiliary" position. It switches off when the
engine starts running. If the indicator light comes on
when the engine is running, stop the engine and inves-
tigate the cause of the problem immediately.
Check for low oil level or consult your dealer.
15. Coolant temperature indicator light (red).
16. Auxiliary hydraulics oil pressure indicator light (red).
If this indicator light comes on when the engine is running, check
the
auxiliary hydraulics oil level on the DOT MATRIX screen
(see chapter 4 - Using the DOT MATRIX). If this indicator light
stays on, consult your dealer.
17. Gearbox oil pressure indicator light (red).
If this warning light illuminates during operation, con-
sult your agent or dealer.
18. Alternator charge indicator light (red).
3.3 - CONTROL DISPLAY
Fig. 8 - This control screen allows the different parameter
displays to be monitored:
1. Forward / neutral / reverse liquid crystal display.
2. Reverse shuttle sensitivity indicator.
3. Selected symbol display: rear PTO/engine speed/for-
ward ground speed:
All parameters that can be displayed in the lower part
of the screen can be selected by pressing button 5
(Fig. 9) located on the instrument panel.
4. Digital display: rear PTO speed, engine speed, ground
speed, hours worked.
NOTE: To reinitialise hours worked, select the relevant
parameter and hold the switch 5 (Fig. 8) down for
approximately 5 seconds to reset the display.
5. Power take-off automation.
6. Front axle automatic control.
7. A/B speed (engine with electronic fuel injection) mem-
orisation status.
8. Hare / Tortoise range engagement indicator lights.
Z3A-1138-10-04
Fig. 7
14
15 16
17 18
13
KPH
MPH
RPM
A
A
B
1000
540
ECO
RPM
RPM
KPH
Z3A-1137-12-04a
Fig. 8
1
6
5
4
2
8
7
3
Fig. 9
Z3A-1511-11-04
5
