7.9.9 - Trailed Implement Control (T.I.C.) menu

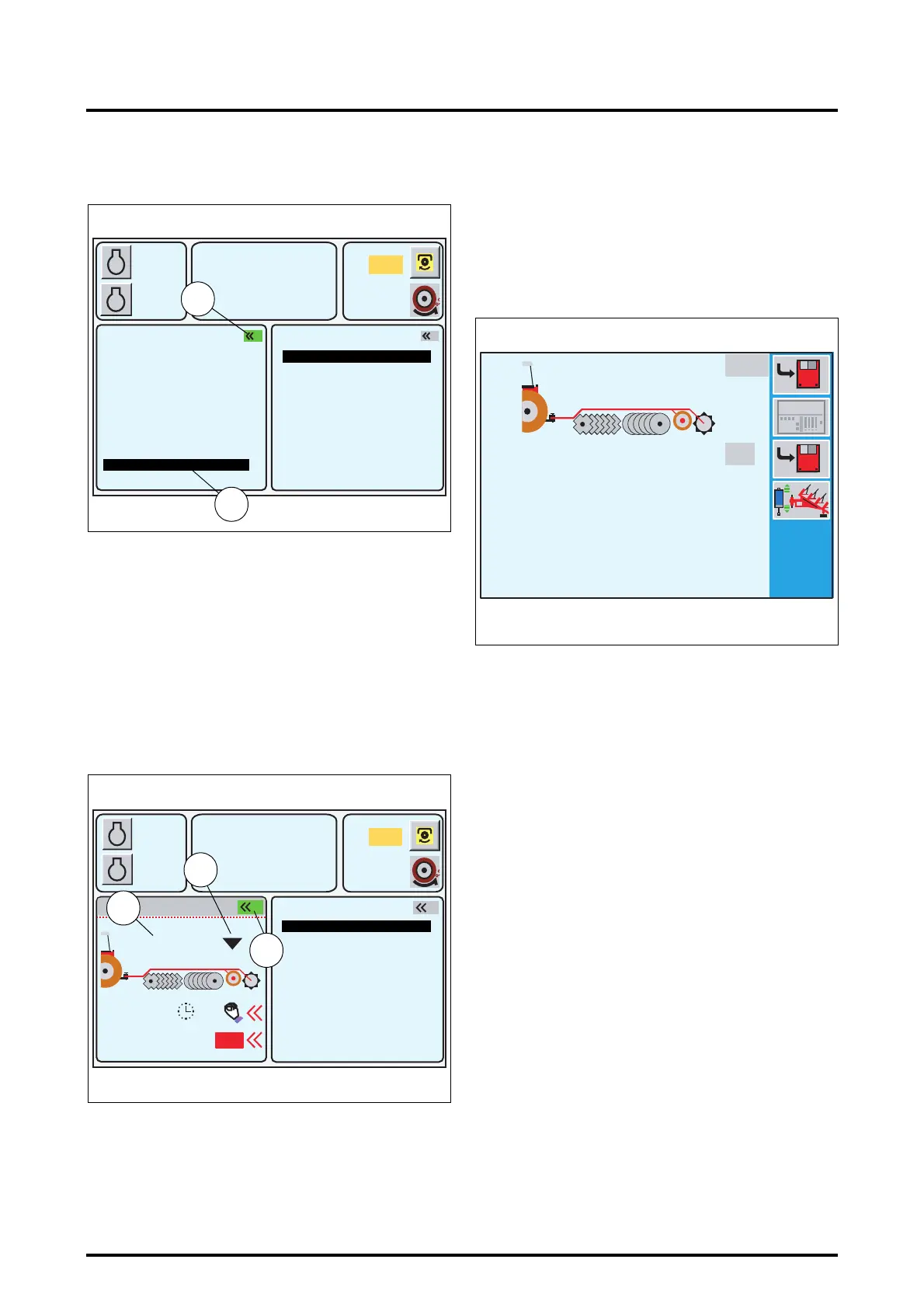

TIC menu displayed in the left-hand window only (Fig. 69):
• To display this menu, press key
«
1
twice. The first press
selects the window and the second press displays the
list if no application was activated previously. The active
application is indicated by the green icon at the top right-
hand of the window (47 Fig. 69), and on b/w screens the
active window is indicated by the same icon in reverse
video.
• To select the different menu, select the application
using the encoder. The selected application is displayed
in a black frame (48 Fig. 69).
• Validate by pressing the encoder or the key
«
1
. The win-
dow (Fig. 70) is displayed.
This display is used to view the evolution of settings made
while using a trailed rear implement on the swinging draw-
bar (a disc tiller for example) .
This window also allows activation and deactivation of the
DUAL CONTROL function.
Description (Fig. 70):
49. Position of the spool valve control for the disc tiller lift
cylinder
50. value of the disc tiller lift cylinder position
• Pressing the key «
6
switches the TIC to ON or OFF
when the window is active (green icon 51 Fig. 70).
• Pressing the key «
5
returns the user to the TIC configu-
ration menu (Fig. 71).
NOTE: For data description and settings (Fig. 71), see
section 7.8. (DUAL CONTROL application).
