Chapter 1 Modules Overview
Port Connector Requirements
Port Connector Requirements
You need these connector types to cable to the module ports:
• SC connectors for GBICs. (See Figure 1-2.)
Note When you plug the SC connector into the GBIC, make sure that both the Tx and Rx
fiber-optic cables are fully inserted into the SC connector.
Note If you are using the LX/LH GBIC with MMF, you need to install a patch cord between the
GBIC and the MMF cable. Refer to the “Patch Cord” section of the
Cisco 7600 Series Router
Module Installation Guide for details.
• RJ-45 male connectors for the 48-port 10/100BASE-T RJ-45 module. (See Figure 1-3.)
• MT-RJ fiber-optic connectors for the 24-port 100BASE-FX module. (See Figure 1-4.)
• LC connectors for the SFP optical tranceivers installed in the Supervisor Engine 720. (See
Figure 1-5.)
• RJ-21 telco connectors for the 48-port 10/100BASE-T R J-21 telco module. (See Figure 1-6.)

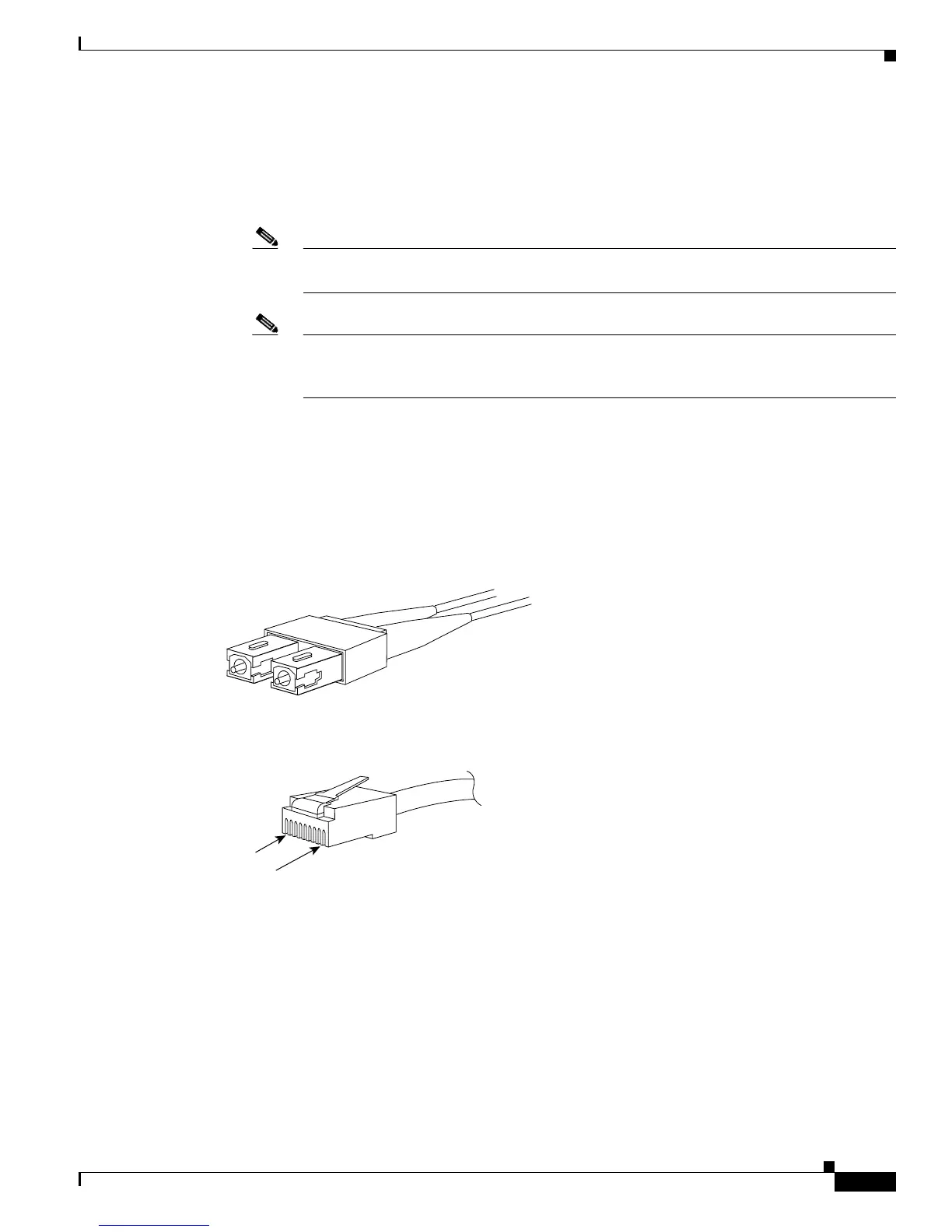

Figure 1-2 SC Fiber-Optic Cable Connector
Figure 1-3 RJ-45 Interface Cable Connector
H2214
H1567
Pin 1
Pin 8
RJ-45 (both ends)
