Cisco 7600 Series Module Guide

13-2
Cisco 7600 Series Router Module Guide
OL-9392-05
Chapter 13 Cisco 7600 Series Ethernet Services 20G Line Cards
Cisco 7600-ES20-GE Line Card LEDs

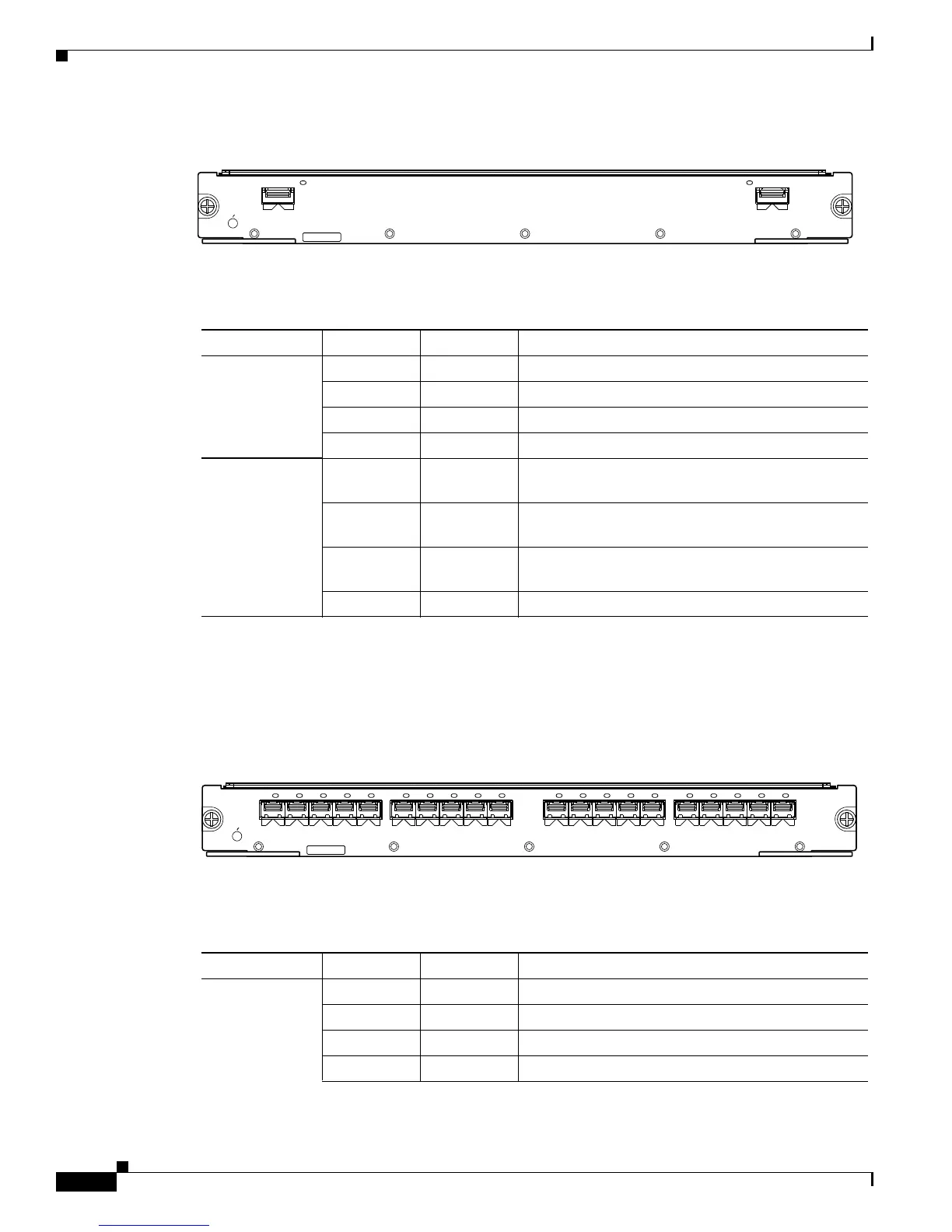

Figure 13-1 Cisco 7600-ES20-10G Faceplate
There is one line card Status LED and two port Status LEDs. Table 13-1 provides LED descriptions.
Cisco 7600-ES20-GE Line Card LEDs
The Cisco 7600-ES20-GE line card has 21 LEDs, as shown in Figure 13-2.
Figure 13-2 Cisco 7600-ES20-GE Line Card Faceplate
There is one line card STATUS LED and twenty A/L (Active Loopback) LEDs. Table 13-2 provides LED
descriptions.
A/L
STATUS
ETHERNET
SERVICES MODULE
7600-ES20-10G3CXL
CLASS 1 LASER
A/L
1
0
191217
Ta b l e 13-1 Cisco 7600-ES20-10G LEDs
LED Label Color State Meaning
STATUS Red On The line card has encountered an error.
Green On The line card is online.
Yellow On The line card is loading.
Off Off The line card is powered off.
A/L Amber On The port is enabled but there is not a valid Ethernet
link.
Green On The port is enabled and a valid Ethernet link has been
established.
Green and
Amber
On Undefined condition.
Off Off The port is not enabled by software.
STATUS
ETHERNET
SERVICES MODULE
7600-ES20-GE3CXL
CLASS 1 LASER
0
A/L
191218
1
A/L
2
A/L
3
A/L
4
A/L
5
A/L
6
A/L
7
A/L
8
A/L
9
A/L
10
A/L
11
A/L
12
A/L
13
A/L
14
A/L
15
A/L
16
A/L
17
A/L
18
A/L
19
A/L
Ta b l e 13-2 Cisco 7600-ES20-GE Line Card LEDs
LED Label Color State Meaning
STATUS Red On The line card has encountered an error.
Green On The line card is online.
Yellow On The line card is loading.
Off Off The line card is powered off.
