Chapter 15 Cisco 7600 Ethernet Services Plus Line Cards
Cisco 7600 ES+ 4TG3C, -4TG3CXL Line Card LEDs
Cisco 7600 ES+ 4TG3C, -4TG3CXL Line Card LEDs

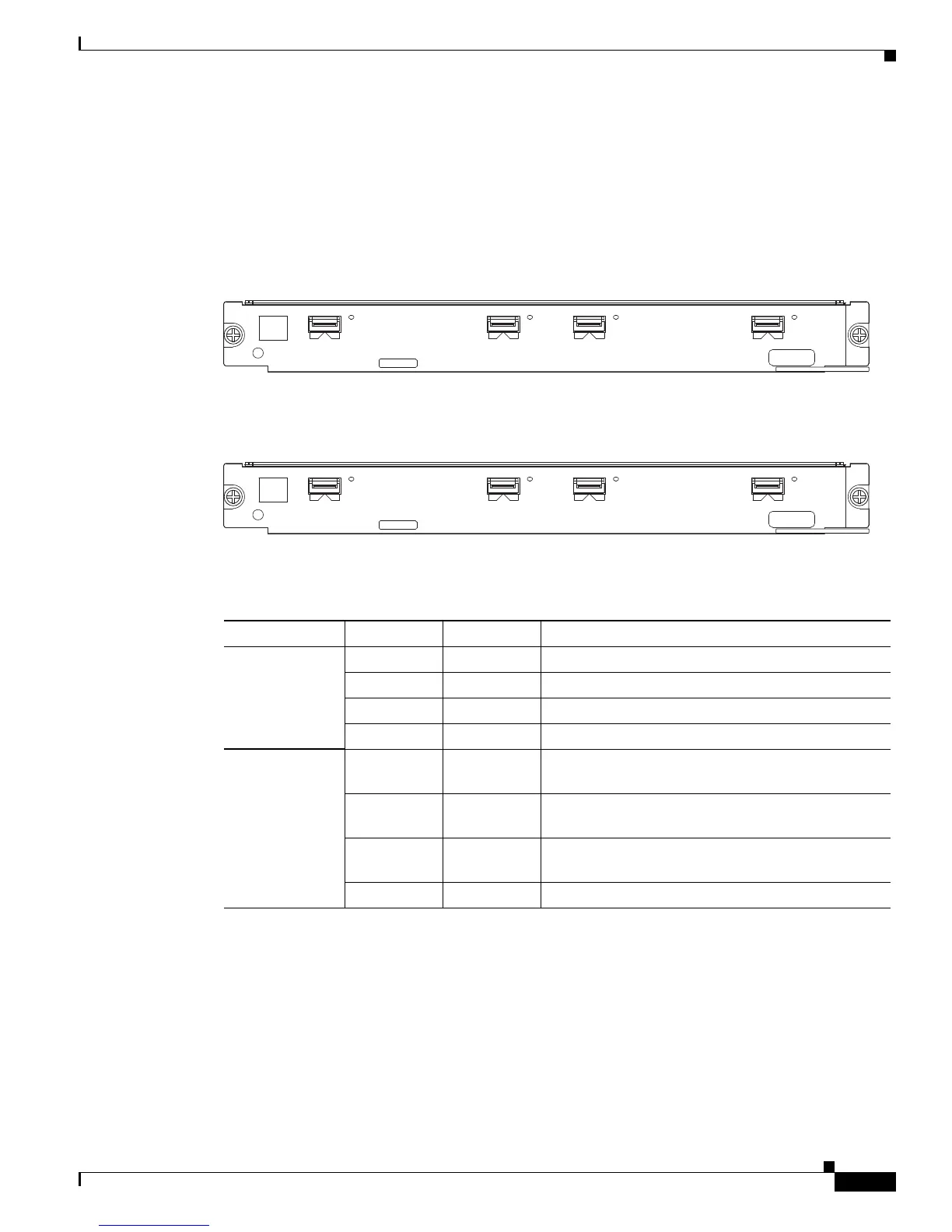

The Cisco 7600-ES+ 4TG3C, -4TG3CXL line cards have three LEDs, as shown in Figure 15-3 and
Figure 15-4. There is one Status LED and two A/L (Active Loopback) LEDs. Table 15-2 provides LED
descriptions.
Figure 15-3 Cisco 7600 ES+ 4TG3C Faceplate
Figure 15-4 Cisco 7600 ES+ 4TG3CXL Faceplate
There is one line card Status LED and two port Status LEDs. Table 15-1 provides LED descriptions.
Cisco 7600 ES+ 20G3C, -20G3CXL Line Card LEDs
The Cisco 7600 ES+ 20G3C, -20G3CXL line cards have 21 LEDs, as shown in Figure 15-5 and
Figure 15-6.
7600-ES+ 4TG3C
ETHERNET SERVICES MODULE
STATUS
EXT CLK
CLASS 1 LASER
270823
A/L
1
A/L
2
A/L
3
A/L
4
7600-ES+ 4TG3CXL
ETHERNET SERVICES MODULE
STATUS
EXT CLK
CLASS 1 LASER
270824
A/L
1
A/L
2
A/L
3
A/L
4
Ta b l e 15-2 Cisco 7600 ES+ 4TG3C, -4TG3CXL LEDs
LED Label Color State Meaning
STATUS Red On The line card has encountered an error.
Green On The line card is online.
Yellow On The line card is loading.
Off Off The line card is powered off.
A/L Amber On The port is enabled but there is not a valid Ethernet
link.
Green On The port is enabled and a valid Ethernet link has been
established.
Green and
Amber
On Undefined condition.
Off Off The port is not enabled by software.
