Cisco 7600 Series Module Guide

12-4
Cisco 7600 Series Router Module Guide
OL-9392-05
Chapter 12 Voice-Related Modules
8-Port T1/E1 PSTN Interface Module (WS-X6608-T1/E1)

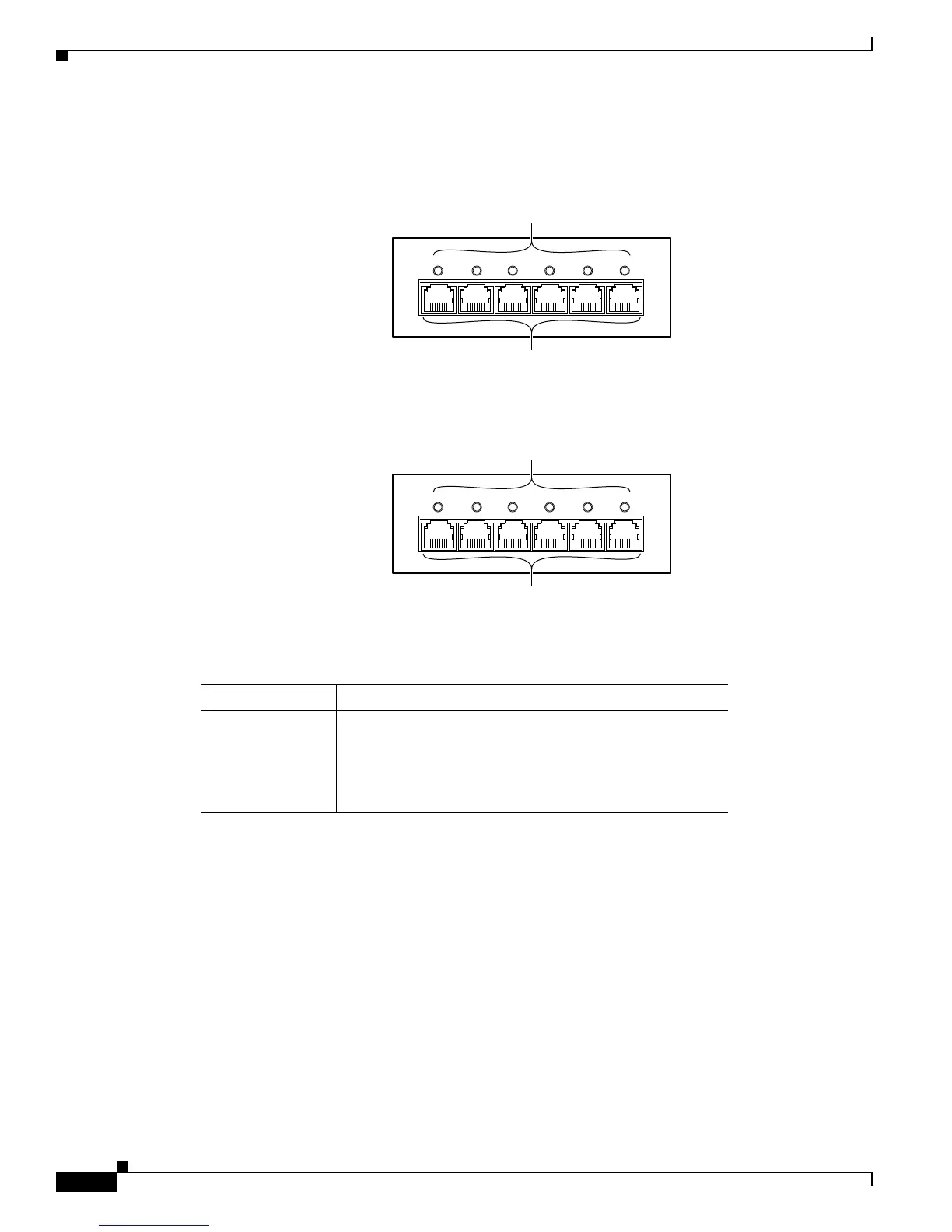

Figure 12-2 and Figure 12-3 show the front panels of the 6-port T1 and E1 interface modules.
Figure 12-2 6-Port T1 Interface Module
Figure 12-3 6-Port E1 Interface Module
The front panel LEDs are described in Table 12-3.
8-Port T1/E1 PSTN Interface Module (WS-X6608-T1/E1)
The 8-port T1/E1 PSTN interface module (WS-X6608-T1/E1) is a high-density, 8-port T1/E1
voice-over-IP (VoIP) module that can support digital T1/E1 connectivity to the Public Switched
Telephone Network (PSTN) or transcoding and conferencing. (See
Figure 12-4.) The module requires
an IP address, is registered with Cisco CallManager in its domain, and is managed by Cisco
CallManager.
The module software is downloaded from a TFTP server. Depending upon which software you
download, the ports can serve as T1/E1 interfaces or support transcoding and conferencing as follows:
• Transcoding for IP-to-IP connections support the following:
– 128 channels of full-duplex transcoding per module, 16 channels per port, if transcoding is
between G.711 and a low bit-rate codec (such as the G.723.1).
0
WS-SVC-CMM-6T1
12 3 4 5
6-Port T1 Interface Port Adapter
RJ-45 connectors
Receive port LEDs
68448
0
WS-SVC-CMM-6E1
12 3 4 5
6-Port E1 Interface Port Adapter
RJ-45 connectors
Receive port LEDs
68449
Ta b l e 12-3 6-Port T1 and E1 Interface Modules Receive Port LEDs
Color/State Description
Green T1/E1 interface is operational.
Red T1/E1 receive alarm.
Yellow T1/E1 remote alarm.
Off The administrative port shut down or there is no power.
